23024Spherical Roller Bearings
| 23024Spherical Roller Bearings | |||
|---|---|---|---|

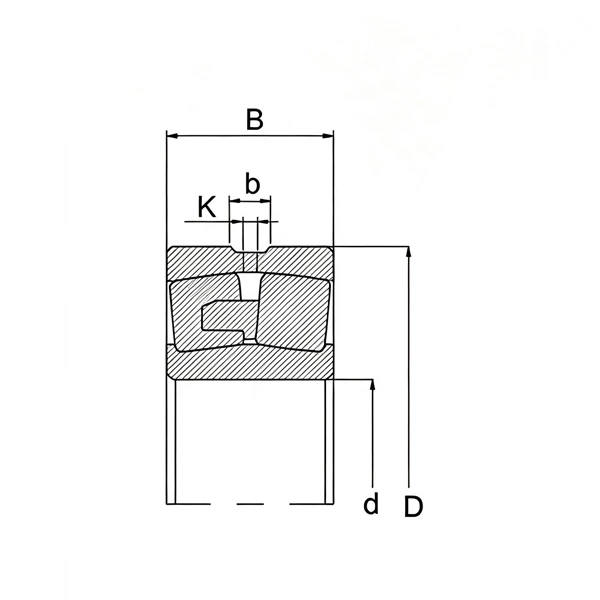

| Part Number | 23024 | Weight(Kg) | 4.1 |
| d | 120 | Dynamic Load Co(N) | 312000 |
| D1 | 180 | Static Load Cor(N) | 508000 |
| B | 46 | Grease Speed | 1800 |
| R | 2 | Oil Speed | 2200 |
23024 Spherical Roller Bearing | 23024CA / 23024CC / 23024K Cage And Application
The 23024 is a standard double-row spherical roller bearing with official dimensions of 120×180×46mm. It features superior self-aligning ability, strong radial load resistance, and stable running performance, tolerating shaft deflection, mechanical vibration and long-term heavy-load operation. As a core general-purpose industrial bearing, it is available in three mainstream configurations: 23024CA, 23024CC and 23024K. Each model adopts different cage structures and design standards to meet differentiated working condition requirements.

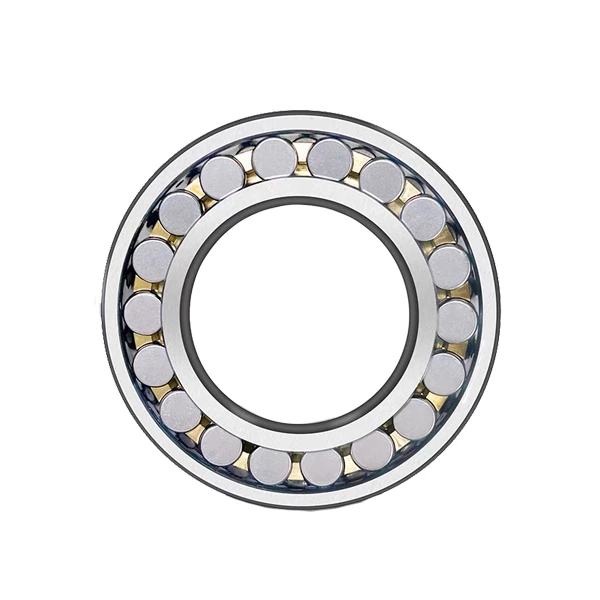

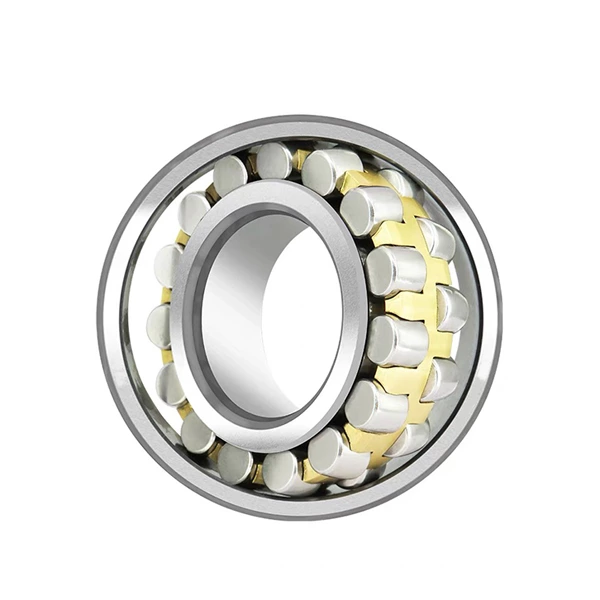

23024CA Bearing (Solid Brass Cage)
23024CA is fitted with a one-piece machined solid brass cage and symmetrical roller layout without middle ribs. The high-rigidity brass cage delivers excellent impact resistance, high temperature resistance and anti-fatigue performance, effectively reducing friction heat and operating noise during continuous operation. Compared with steel cages, the brass structure is not easy to deform under shock load and high temperature, maintaining precise roller operation stability. It supports long-term high-speed and high-load continuous work, making it the preferred model for high-reliability industrial equipment and harsh working environments.
23024CC Bearing (Stamped Steel Cage)
23024CC adopts a two-piece stamped steel cage with floating guide design and optimized internal space layout. The lightweight steel cage structure allows larger roller arrangement, greatly improving radial load capacity while ensuring low friction and high limit speed. With standardized manufacturing process and strong versatility, this model features outstanding cost performance and stable mechanical performance. It is resistant to conventional mechanical wear and suitable for medium-speed, heavy-duty daily industrial operation, serving as the most widely used universal model in the 23024 bearing series.
23024K Bearing (Tapered Bore)
23024K refers to the 1:12 tapered bore spherical roller bearing of the 23024 series. It can be matched with adapter sleeves and withdrawal sleeves for fast installation, disassembly and accurate clearance adjustment. The tapered bore design effectively compensates shaft installation errors, solves assembly deviation problems of large transmission shafts, and improves equipment overall stability. It inherits the self-aligning and heavy-load advantages of standard spherical roller bearings, with flexible installation and adjustable precision, perfectly adapting to equipment that requires regular maintenance and gap calibration.
Industrial Applications
23024 series bearings are widely applied in heavy industrial transmission fields. 23024CA is suitable for high-temperature, shock-load and high-precision scenarios including metallurgical rolling mills, large speed reducers and mining heavy machinery. 23024CC is ideal for general heavy-duty equipment such as construction machinery, vibrating screens, paper making and chemical machinery. 23024K is commonly used in industrial fans, conveyor systems, textile machinery and other equipment needing convenient installation and clearance adjustment.
Overview: 23024CA focuses on high durability, 23024CC on cost-effectiveness, and 23024K on flexible assembly, covering almost all conventional and harsh working conditions for medium and heavy-load mechanical transmission.
