Multiple Bearing Series

LM, LMF, LMK, LMH, LML, LME and other series

OEM & Custom Support

Custom dimensions, sealing, internal clearance, materials, and lubrication requirements can be evaluated.

Engineering Support

Technical assistance for bearing selection, replacement, specification review, and custom projects.

Quality Control

Controlled processing, assembly, inspection, and testing throughout production.

Model:

Product Images

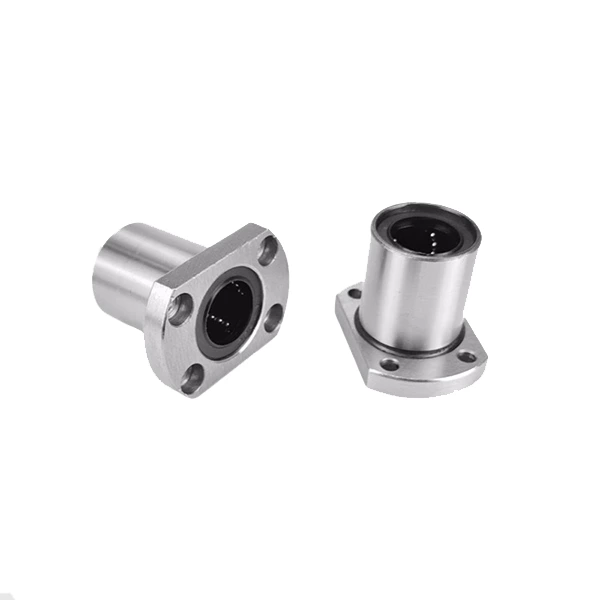

Flange LMH Series

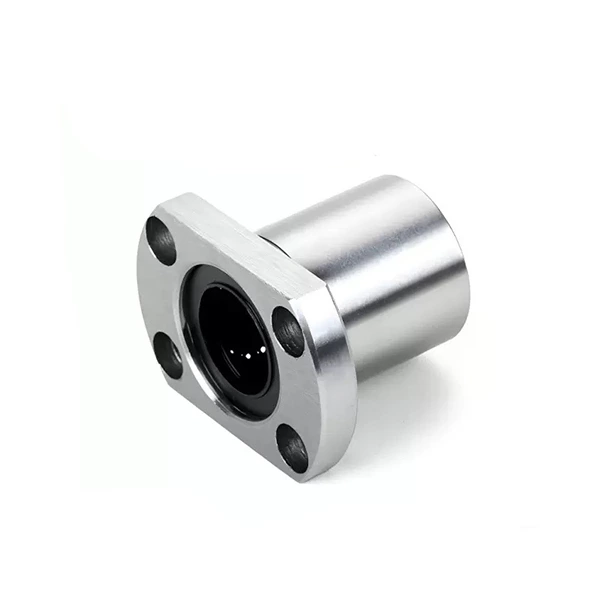

Flange LMH Series
Flange LMH Series

Product Parameters

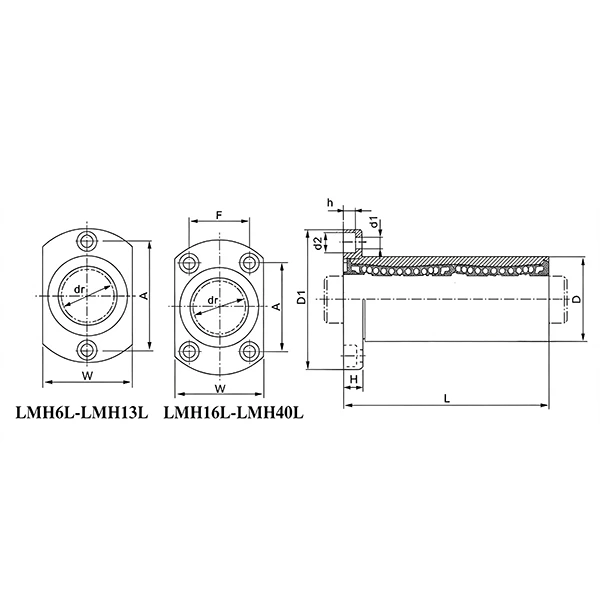

Send Inquiry Part Number Dr D L Weight(Kg) Dynamic Load Co(N) Static Load Cor(N)
LMH6UU 6 12 19 0.021 210 270
LMH8UU 8 15 24 0.033 270 410
LMH10UU 10 19 29 0.064 380 560
LMH12UU 12 21 30 0.068 420 610
LMH13UU 13 23 32 0.081 520 790
LMH16UU 16 28 37 0.112 790 1200
LMH20UU 20 32 42 0.167 880 1400
LMH25UU 25 40 59 0.325 1000 1600
LMH30UU 30 45 64 0.388 1600 2800
LMH35UU 35 52 70 0.59 1700 3200
LMH40UU 40 60 80 0.91 2200 4100
LMH50UU 50 80 100 2.05 3820 7940

Custom OEM Support

Need Custom Bearing Solutions?

Send us your drawings, samples, or project requirements for a fast evaluation and customized bearing solution.

Request a Quote

Fast response from our engineering team

Flange LMH Series Types & Specifications

Available in different sizes, sealing configurations, clearance, materials, and lubrication options to meet operating requirements.

Standard Cylindrical Type

Standard Cylindrical Type

Basic integrated cylindrical style, universal type, installed inside housing, widely used in automation.

Round Flange Type

Round Flange Type

With round flange on one end, directly fixed by bolts without extra positioning, easy assembly.

Oval Flange Type

Oval Flange Type

Oval flange, space-saving design for compact mounting space.

Square Flange Type

Square Flange Type

Square flange plate, uniform mounting force, suitable for square base.

Open type

No dust seals at both ends, fully open, convenient for greasing. Suitable for clean and dry environment requiring frequent lubrication.

Double-side rubber dust seal

Fitted with NBR rubber dust seals on both ends, blocks dust & debris and retains grease, widely used for automation equipment with dust.

Metal shield

Stamped thin metal shield, non-contact, only blocks coarse dust, low friction, not water resistant, for clean dry conditions.

Single-side rubber dust seal

Rubber dust seal only on one end, the other side open. Used when dust exists on one side and easy re-greasing is required.

Bore Match

the required shaft diameter and fit

Outside Diameter

Match the available housing space

Width Check

available axial installation space

Load Rating

Evaluate dynamic and static capacity under load

Bearing Bore O.D. Width
6000 10 mm 26 mm 8 mm
6001 12 mm 28 mm 8 mm
6200 10 mm 30 mm 9 mm
6201 12 mm 32 mm 10 mm
6300 10 mm 35 mm 11 mm

Use the bearing number and dimensions above as a starting point for product selection.

Linear Bearings Manufacturing and Inspection

We control critical manufacturing processes from component preparation to final assembly and inspection to support consistent bearing quality and performance.

Material Inspection

Material Inspection

Raw materials are strictly inspected upon incoming to secure product quality.

Dimensional Inspection

Dimensional Inspection

Full dimensional inspection of finished products, strictly controlling geometric tolerances to ensure bearing dimensional accuracy meets design specifications.

Surface Inspection

Surface Inspection

Full visual inspection for all workpieces to eliminate scratches, rust, dents and other surface defects, ensuring intact bearing appearance.

Final Inspection

Final Inspection

Final full re-inspection before shipment, verifying specifications, packaging and documents to deliver qualified products to customers.

01

Material

02

Machining

03

Heat Treatment

04

Grinding

05

Finishing

06

Assembly

07

Lubrication

08

Inspection

Custom Flange LMH Series Solutions for OEM Applications

When standard bearings cannot meet your equipment requirements, our engineering team works with you to develop customized bearing solutions from initial concept and prototype evaluation to production delivery.

Engineering Review & Design Support

Engineering Review & Design Support

We evaluate your application requirements, drawings, samples, and technical specifications to recommend suitable bearing structures and manufacturing solutions.

Prototype Development

Prototype Development

From initial samples to validation builds, we support prototype development to help verify dimensions, performance, and compatibility before mass production.

Non-Standard Bearing Manufacturing

Non-Standard Bearing Manufacturing

We manufacture customized bearings based on specific project requirements, including special dimensions, configurations, materials, and performance requirements.

Production Scaling & Quality Control

Production Scaling & Quality Control

After approval, customized products can be transferred into stable production with controlled manufacturing processes and inspection procedures to ensure consistent quality.

One-Stop Precision Bearing Manufacturing

Specializing in precision bearing manufacturing, we integrate R&D, precision processing, quality inspection, customized production, fast delivery and after-sales support to form a complete one-stop bearing manufacturing system. Equipped with high-precision production and testing equipment, our modern workshop realizes full in-house control from raw material processing and precision machining to finished product inspection and packaging. We provide standard bearing mass production and non-standard customization services, adapting to various working conditions for machinery, automation, new energy, medical and engineering industries. With one-on-one full-process service, we deliver stable, efficient and reliable one-stop bearing solutions for global customers.

  1. 15+ YEARS OF EXPERIENCE
  2. 7850 ㎡ FACTORY AREA
  3. 10,000+ REGUIAR MODELS IN STOCK
  4. OEM/ODMFULL CUSTOM SERVICE
Book a Factory Visit
Home Content

Linear Bearings Selection & Applications

Select bearings according to shaft and housing dimensions, load and speed, temperature, environment, clearance, sealing, and lubrication.

Selection criteria

Selection criteria

Match suitable bearing structures based on load type, speed, space limitations, accuracy, and environment. Considering radial/axial load-bearing capacity, friction coefficient, allowable temperature rise, and sealing method, we can help you narrow down the selection range.

Industry application scenarios

Industry application scenarios

Adapt to equipment from multiple industries, ranging from precision automation, robotics, medical instruments to conveying and packaging machinery. Provide supporting bearing solutions for special needs such as cleanliness, high speed, and corrosion prevention in different industries.

Select according to working conditions

Select according to working conditions

Targeting harsh working conditions such as corrosive environments, high-speed operation, dust and water resistance, and high and low temperatures. Provide selection of stainless steel, ceramic, sealed, and maintenance free bearings。

Common Applications

3D Printing Equipment

3D Printing Equipment

3D printer motion slides, requiring low friction and smooth precision movement.

Cutting equipment

Cutting equipment

Small CNC engraving machines, cutting machines, light-load linear guiding.

Packaging Machinery

Packaging Machinery

Packaging machines, labeling machines, carton sealers, high-speed reciprocating pushing mechanism.

Textile Machinery

Textile Machinery

Textile machines, cutting equipment, high-speed light-load reciprocating guiding.

Agricultural Machinery

Agricultural Machinery

Rotating assemblies under demanding conditions.

Automation Equipment

Automation Equipment

Automatic conveying lines, transfer mechanisms, tooling fixtures, the most common application for linear bearings.

Need the Right Flange LMH Series?

Share your Flange LMH Series number, dimensions, drawing, sample, or application requirements. Our engineering team will help review your information and identify a suitable solution.
