23224Spherical Roller Bearings
| 23224Spherical Roller Bearings | |||
|---|---|---|---|

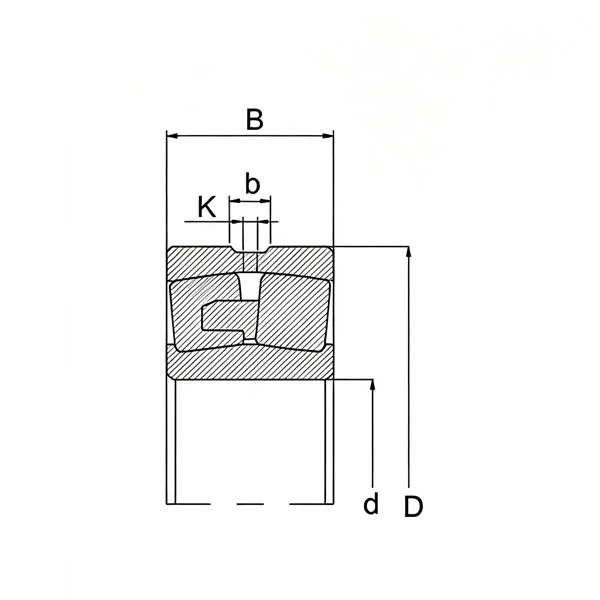

| Part Number | 23224 | Weight(Kg) | 10.7 |
| d | 120 | Dynamic Load Co(N) | 605000 |
| D1 | 215 | Static Load Cor(N) | 760000 |
| B | 76 | Grease Speed | 1400 |
| R | 2.1 | Oil Speed | 1800 |
23224 Spherical Roller Bearing | CA / CC / K Types Available
The 23224 spherical roller bearing is a robust, heavy-duty self-aligning roller bearing built for high radial loads and moderate bidirectional axial loads. It features reliable self-aligning performance to compensate for shaft misalignment and operational deflection, delivering low-friction, stable and anti-vibration operation. Available in CA, CC and K structural types with GCr15 and stainless steel material options, the 23224 bearing provides long-lasting and consistent performance for a wide range of heavy industrial applications.
23224 CA / CC / K Type Differences

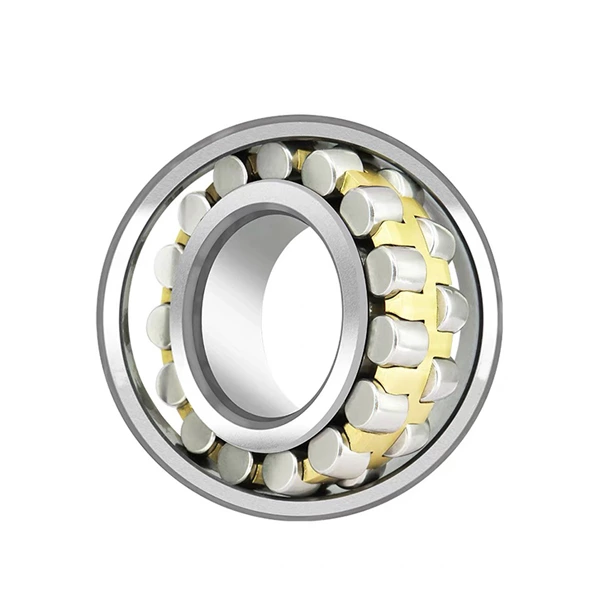

23224CA: Comes with a solid machined brass cage and symmetrical roller structure with inner ring middle ribs. It offers high rigidity, minimal wear and outstanding high-speed stability, ideal for continuous heavy-load and high-precision industrial equipment.
23224CC: Adopts a stamped steel cage and movable middle spacer without inner ring ribs. It features larger internal grease volume, lower friction and better heat dissipation, ensuring stable and cost-effective operation for general heavy-duty machinery.
23224K: Designed with a standard 1:12 tapered inner bore for adapter sleeve mounting. It enables easy assembly, disassembly and flexible shaft positioning, perfect for equipment requiring regular maintenance and adjustments.
Material Introduction
Bearing Steel (GCr15): GCr15 high-carbon chromium bearing steel is the standard material for 23224 bearings. With precise heat treatment, it achieves high hardness, excellent wear resistance and strong fatigue resistance. It maintains stable rotational accuracy and structural rigidity during long-term heavy-load operation with great cost performance.
Stainless Steel: Stainless steel 23224 bearings deliver excellent rust-proof, anti-oxidation and weak corrosion resistance. They effectively resist moisture and industrial contaminants, preventing precision loss and premature bearing failure, suitable for humid, sanitary and lightly corrosive working environments.
Product Features
Excellent self-aligning capability offsets shaft deflection and installation errors. Strong radial load capacity with stable bidirectional axial load tolerance. Multiple structural designs meet precision, economical and easy-maintenance requirements. Low friction, efficient heat dissipation and reliable anti-vibration performance. Dual material grades support wide adaptability for complex industrial conditions.
Application Scenarios
23224 spherical roller bearings are widely applied in mining machinery, cement equipment, heavy-duty conveyors, large industrial fans, construction machinery and industrial transmission systems. 23224CA is suitable for continuous heavy-load precision equipment; 23224CC fits general heavy industrial machinery; 23224K is ideal for frequently maintained shaft systems. Stainless steel versions work well for food machinery, medical devices and high-humidity working scenarios.
