29416Spherical Roller Bearings

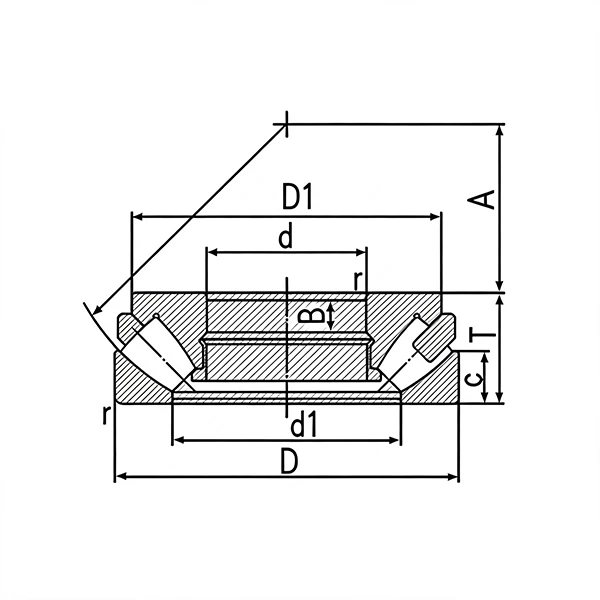

| 29416Spherical Roller Bearings | |||
|---|---|---|---|
| Part Number | 29416 | Weight(Kg) | 5.55 |
| d | 80 | Dynamic Load Co(N) | 575000 |
| D1 | 170 | Static Load Cor(N) | 1600000 |
| B | 54 | Grease Speed | 1400 |
| R | 2.1 | Oil Speed | 1900 |

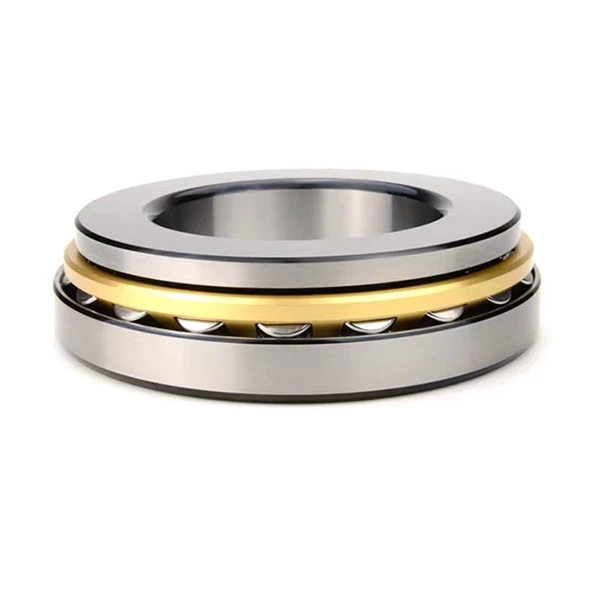

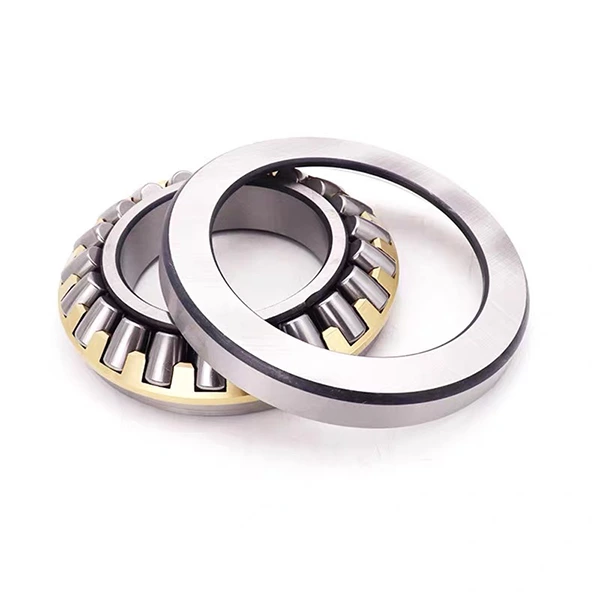

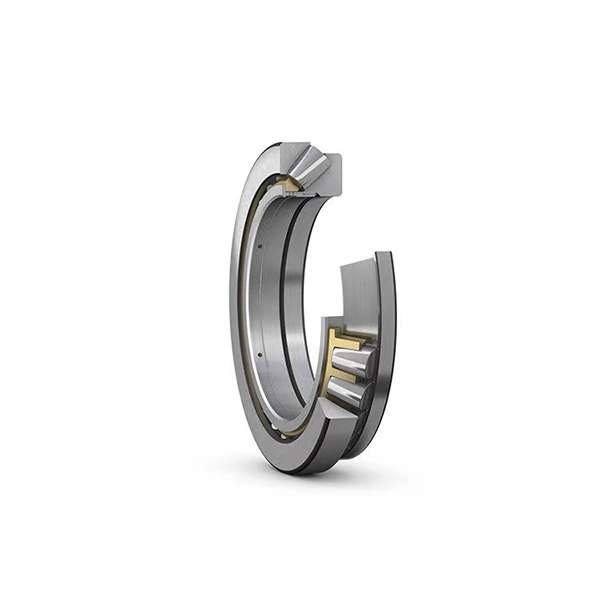

29416 Spherical Roller Thrust Bearing | M / E Types Available
The 29416 spherical roller thrust bearing is a heavy-duty thrust bearing built for extreme axial loads and moderate radial loads. It features superior self-aligning performance to offset shaft deflection and installation misalignment, delivering low-friction, stable and long-lasting operation. Available in 29416M and 29416E variants, this bearing offers high-durability and cost-effective thrust support for heavy industrial machinery.
29416 M / E Type Differences
29416M: Designed with a solid machined brass cage for high structural rigidity and excellent impact resistance. It maintains steady operation under continuous heavy loads and harsh working conditions with low wear rates, ideal for long-cycle, constant-load industrial equipment requiring high stability.
29416E: Features an optimized enhanced roller structure with upgraded load distribution and higher dynamic load capacity. It provides improved rotational flexibility and heat dissipation compared to the M type, making it ideal for high-speed and variable-load heavy-duty mechanical systems.
Material Introduction
Bearing Steel (GCr15): 29416 thrust bearings adopt premium GCr15 high-carbon chromium bearing steel. With precise heat treatment, the material achieves high hardness, outstanding wear resistance and strong fatigue resistance, retaining stable rotational accuracy and structural rigidity under long-term heavy axial loads with reliable cost performance.
Stainless Steel (Optional): Custom stainless steel 29416 bearings deliver excellent rust-proof, anti-oxidation and weak corrosion resistance. They resist moisture and industrial contaminants effectively, preventing premature bearing failure for humid, sanitary and lightly corrosive working environments.
Product Features
Reliable self-aligning capability compensates for installation errors and operational deflection. Ultra-high axial load capacity with stable radial load tolerance. Two structural designs fit constant-load and high-speed working demands. Low friction and efficient heat dissipation extend overall service life. High mechanical strength ensures long-term stable performance.
Application Scenarios
29416 spherical roller thrust bearings are widely used in heavy-duty gearboxes, mining machinery, cement production equipment, large industrial fans, hydraulic systems and construction machinery. 29416M is suitable for continuous constant-load equipment; 29416E fits high-speed and variable-load industrial systems. Stainless steel versions apply to food machinery, medical equipment and high-humidity working conditions.
