62316 Deep Groove Ball Bearing Drawing
| 62316 Deep Groove Ball Bearing Drawing | |||
|---|---|---|---|
| Part Number | 62316 | Ball Number | 11 |
| d | 80 | Ball Size | 23.812 |
| D1 | 170 | Dynamic Load Co(N) | 130000 |
| B | 58 | Static Load Cor(N) | 88000 |
| R | 2.1 | Grease Speed | 2400 |
| Weight(Kg) | 5.15 | Oil Speed | 2800 |
62316 Deep Groove Ball Bearing | Open, ZZ, 2RS Heavy-Duty Bearings
The 62316 deep groove ball bearing is a robust extra-wide heavy-duty bearing in the professional 623 series, engineered with widened raceway grooves and thickened rolling elements to deliver exceptional structural rigidity and superior radial load capacity. Optimized for medium-to-large industrial machinery requiring long-term stable high-speed operation and heavy-load endurance, this single-row deep groove ball bearing features low friction, outstanding anti-fatigue performance and ultra-quiet cyclic rotation. Suited for compact installation spaces with harsh operating conditions, the 62316 bearing is available in three standard industrial types: open, 62316ZZ double metal shield and 62316-2RS double rubber sealed versions. Supplied in five industrial-grade materials, it reliably adapts to economical, sanitary, high-wear and corrosive working environments for a wide range of industrial precision applications.
62316 Open / ZZ / 2RS Structural Features

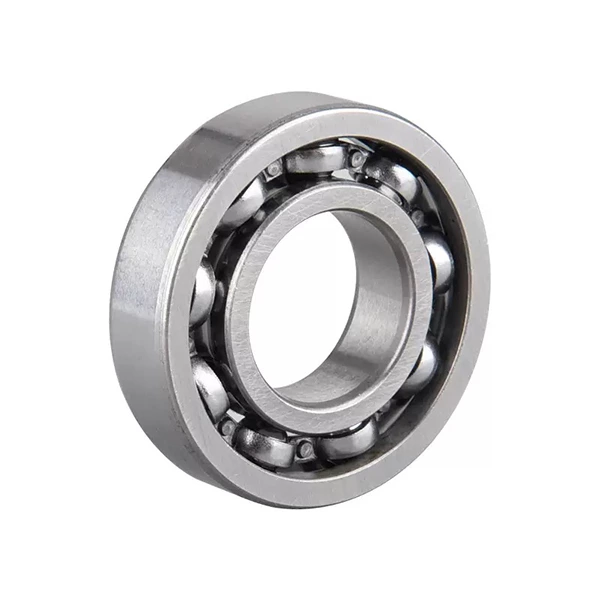

62316 Open Type: The unsealed open structure maximizes airflow and heat dissipation, effectively eliminating thermal buildup during continuous high-speed and heavy-load operation. It allows tool-free grease replenishment and effortless routine maintenance without increasing rotational resistance. Ideal for clean, dry indoor workshops and fully enclosed precision machinery, it maintains consistent running accuracy and stable long-cycle operational performance.

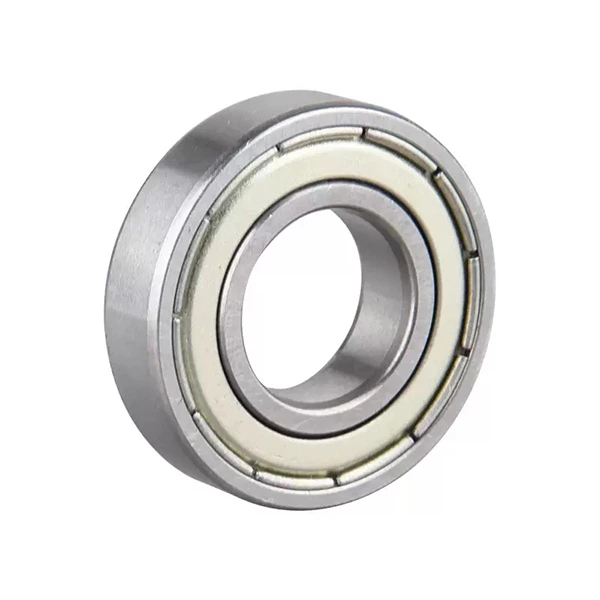

62316ZZ Double Metal Shields: Fitted with dual non-contact steel shields, the 62316ZZ bearing delivers excellent dust-proof protection against fine dry dust, floating micro particles and industrial debris. The non-contact design preserves original high-speed precision and smooth rotation with minimal friction loss. Offering long service life and outstanding cost performance, it is widely used in dry industrial environments for heavy-duty motors, automation assemblies, power transmission equipment and general industrial machinery.

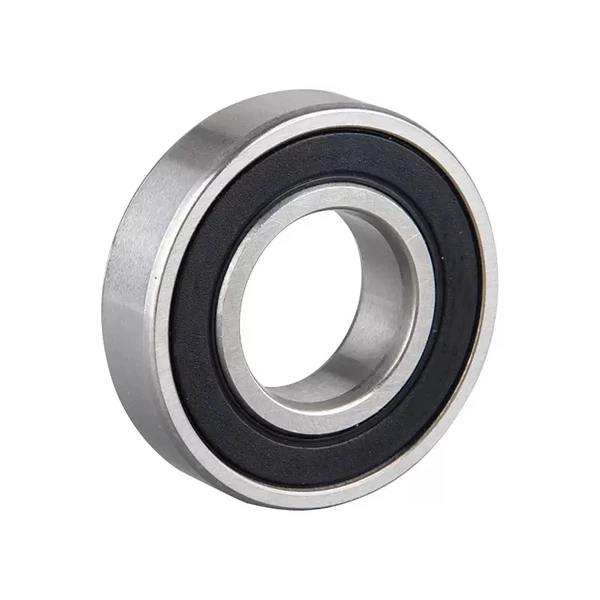

62316-2RS Double Rubber Seals: The fully sealed 62316-2RS model adopts double-sided contact rubber seals to block moisture, water splashes, oil mist and corrosive dust. It securely locks internal lubricant to prevent grease leakage, oxidation and aging, enabling long-term maintenance-free operation. This versatile sealed variant performs steadily in humid, dusty and mildly harsh conditions for outdoor equipment, portable machinery and heavy-duty precision electromechanical systems.
62316 Bearing Material Performance
Carbon Steel: Cost-effective industrial standard material with uniform hardness and stable anti-fatigue properties. It provides reliable wear resistance and smooth high-speed rotation for general machinery, delivering excellent cost efficiency for mass industrial batch production.
304 Stainless Steel: Food-grade stainless steel with superior oxidation and rust resistance. It resists micro corrosion in humid and open environments, ideal for food processing equipment and sanitary industrial machinery.
316 Stainless Steel: Marine-grade corrosion-resistant material with strong tolerance to acid, alkali and salt spray. It withstands coastal humidity and mild chemical corrosion, perfect for marine components, sanitary instruments and chemical processing equipment.
420 Stainless Steel: High-toughness martensitic stainless steel combining moderate corrosion resistance and high surface hardness. It ensures stable wear resistance and precise dimensional stability during continuous heavy-load operation.
440 Stainless Steel: Ultra-high hardness stainless steel with premium abrasion resistance and structural stability. It maintains accurate operation under severe wear and corrosive conditions, suited for high-end industrial precision mechanical systems.
Core Advantages And Industrial Applications
The 62316 deep groove ball bearing features an extra-wide thickened structure, ultra-strong heavy-load capacity, low noise and durable high-speed stability. Three sealing options and five material grades fully satisfy economical, anti-rust, wear-resistant and anti-corrosion industrial requirements. It is widely applied in heavy-duty industrial motors, large automation machinery, processing equipment, industrial power tools, medical devices and sanitary systems. As a dependable core rotary component for compact heavy-load mechanical systems, the 62316 bearing provides stable, low-maintenance and high-efficiency precision rotation solutions for diverse commercial and industrial scenarios.
