633 Deep Groove Ball Bearings
| 633 Deep Groove Ball Bearings | |||
|---|---|---|---|
| Part Number | 633 | Ball Number | 6 |
| d | 3 | Ball Size | 2.382 |
| D1 | 13 | Dynamic Load Co(N) | 1300 |
| B | 5 | Static Load Cor(N) | 485 |
| R | 0.2 | Grease Speed | 40000 |
| Weight(Kg) | 0.0032 | Oil Speed | 48000 |
633 Bearing: Open, ZZ, RS Types And Multi-Material Industrial Applications
The 633 bearing is a popular single-row deep groove ball bearing with standard dimensions, high load capacity, and excellent rotational stability. As a versatile general-purpose bearing, it is widely used in mechanical transmission, automotive equipment, household appliances, and industrial machinery. Optimized for high-speed operation and low friction performance, the 633 deep groove ball bearing supports radial and axial loads, meeting diverse working condition demands with multiple structural types and material options.
633 Bearing Basic Types: Open, ZZ, RS Structure Introduction
633 bearings are available in three mainstream structural designs to adapt to different environmental sealing and protection requirements, covering ordinary industrial, dust-proof, and moisture-proof working scenarios.
Open Type 633 Bearing
The open 633 bearing features no sealing covers on both sides, with fully exposed internal rolling elements. It boasts ultra-low rotational resistance, excellent heat dissipation, and high-speed operation performance. This type is suitable for clean, dry, and dust-free working environments with good external lubrication conditions, ideal for high-precision transmission equipment that requires frequent grease replacement and strict heat dissipation.

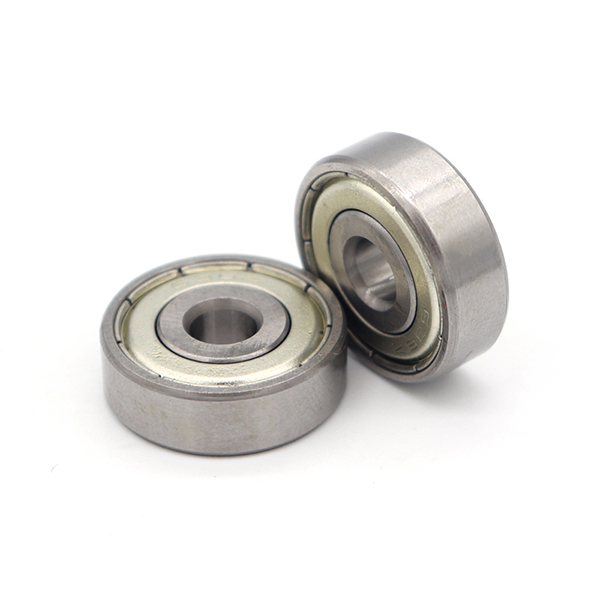

633 ZZ Bearing (Double Metal Shield)
633 ZZ bearings are equipped with double-sided iron shields, forming a semi-sealed structure. The metal shields effectively block dry dust, debris, and large particles from entering the bearing interior while retaining internal lubricating grease. It maintains low friction and high-speed stability, with better dust resistance than open-type bearings. Perfect for general industrial machinery, motors, and power tools working in ordinary indoor environments.

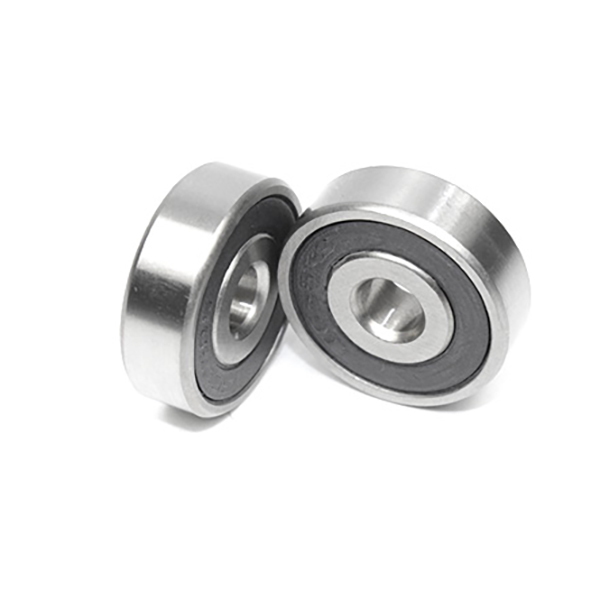

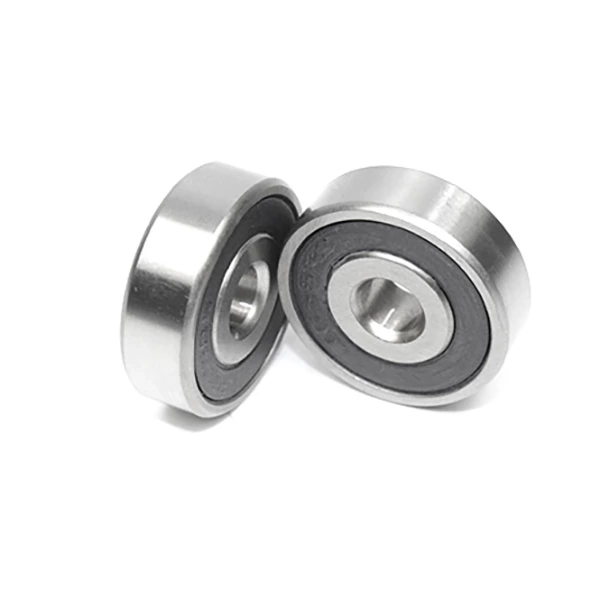

633 RS Bearing (Double Rubber Seal)
633 RS bearings adopt double-sided rubber contact seals, achieving full sealing protection. The rubber seal fits closely with the bearing inner ring, providing outstanding waterproof, oil-proof, dust-proof, and anti-corrosion capabilities. It prevents moisture, muddy water, and fine dust from invading the interior, adapting to harsh working conditions. This sealed type requires less maintenance and is the preferred choice for outdoor and humid industrial equipment.
633 Bearing Multi-Material Classification And Industrial Application Scenarios
To meet the corrosion resistance, hardness, and durability requirements of different industries, 633 bearings are manufactured in bearing steel, 304, 316, 420, and 440 stainless steel materials, with targeted applications for various working conditions.
Bearing Steel 633 Bearing
Made of high-carbon chromium bearing steel, this standard 633 bearing features high hardness, strong wear resistance, and excellent load-bearing capacity. It is cost-effective and stable in high-speed operation, widely used in conventional industrial fields such as general machinery, electric motors, fans, and automotive conventional parts, suitable for dry and normal-temperature working environments.
304 Stainless Steel 633 Bearing
304 stainless steel 633 bearings have good weak corrosion resistance and rust-proof performance, with moderate hardness. They are commonly applied in food machinery, light industrial equipment, and daily electrical appliances, adapting to conventional humid and weakly corrosive environments with low load operation requirements.
316 Stainless Steel 633 Bearing
With superior acid and alkali corrosion resistance and salt spray resistance, 316 stainless steel 633 bearings are suitable for extreme harsh environments. They are the first choice for marine equipment, chemical machinery, pharmaceutical equipment, and coastal industrial facilities, resisting seawater erosion and chemical liquid corrosion.
420 Stainless Steel 633 Bearing
420 stainless steel material balances hardness and rust resistance, with higher strength and wear resistance than 304 steel. It is mostly used in medium-load mechanical equipment, hardware tools, and precision instrumentation, applicable to slightly corrosive environments requiring high rotational precision.
440 Stainless Steel 633 Bearing
440 stainless steel 633 bearings feature ultra-high hardness, strong wear resistance, and excellent corrosion resistance, with comprehensive performance superior to other stainless steel materials. They adapt to high-load, high-speed, and strongly corrosive working conditions, widely used in precision machinery, medical equipment, and high-end industrial supporting fields.
Advantages of Our 633 Deep Groove Ball Bearings
Our 633 bearings adopt precision grinding technology, with uniform tolerance, stable rotation, low noise, and long service life. Multiple types and materials support customized selection, fully meeting general industrial, corrosion-resistant, high-precision, and harsh-environment use needs. All products comply with international industry standards, suitable for global wholesale, OEM, and equipment supporting procurement.
