6909 Deep Groove Ball Bearings
| 6909 Deep Groove Ball Bearings | |||
|---|---|---|---|
| Part Number | 6909 | Ball Number | 14 |
| d | 45 | Ball Size | 6.747 |
| D1 | 68 | Dynamic Load Co(N) | 15200 |
| B | 12 | Static Load Cor(N) | 10400 |
| R | 0.6 | Grease Speed | 9200 |
| Weight(Kg) | 0.12 | Oil Speed | 11000 |
6909 Deep Groove Ball Bearing | Open, ZZ, 2RS Ultra-Thin Micro Bearings
The 6909 deep groove ball bearing is a high-rigidity ultra-thin micro precision model in the 6900 series, featuring upgraded reinforced raceway grooves and optimized rolling element distribution for improved structural stability and reliable light-medium load capacity. Designed for ultra-compact, space-constrained installation scenarios, this single-row thin-wall miniature bearing delivers ultra-low friction rotation, consistent dimensional accuracy and excellent anti-fatigue performance. It supports long-term ultra-quiet, high-speed continuous cyclic operation, acting as an essential rotary core for miniaturized electromechanical devices and compact precision electronic systems. The 6909 series provides three standard industrial configurations: open type, 6909ZZ double metal shield type and 6909-2RS double rubber sealed type, with five industrial-grade materials to suit economical, sanitary, wear-resistant and corrosive complex working environments.
6909 Open / ZZ / 2RS Structural Features

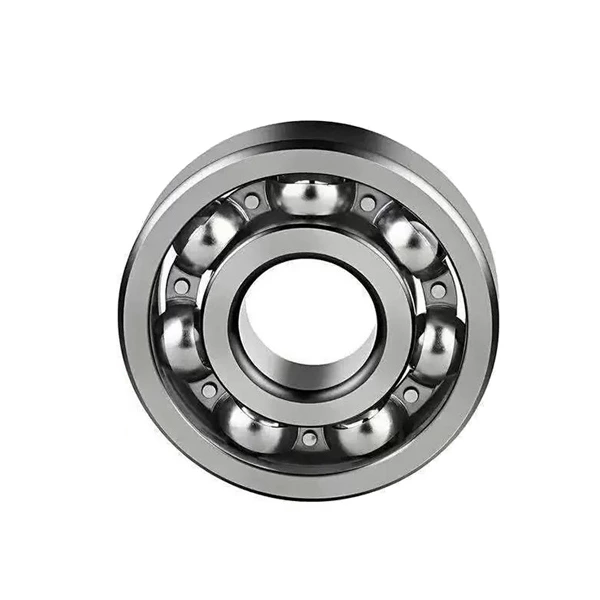

6909 Open Type: The unsealed open structure ensures unobstructed air circulation and efficient heat dissipation, effectively preventing thermal accumulation during prolonged high-speed micro operation. It allows tool-free grease refilling and convenient daily maintenance without extra rotational resistance. Perfect for clean, dry indoor workshops and fully enclosed micro-precision equipment, it maintains stable running accuracy and steady performance during long-cycle light-medium load operation.

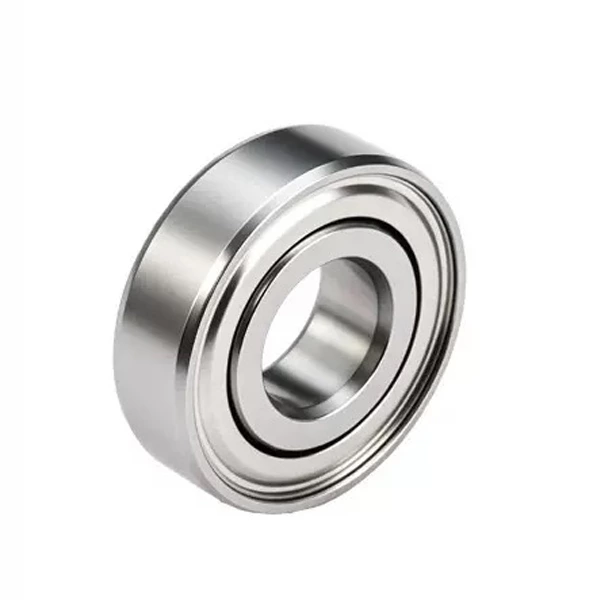

6909ZZ Double Metal Shields: Equipped with dual-sided non-contact steel shields, this dust-proof micro bearing effectively blocks fine dry dust, floating micro particles and tiny industrial debris. The non-contact design preserves original high-speed precision and rotational smoothness with minimal friction loss. Featuring long service life and outstanding cost performance, 6909ZZ bearings are widely applied in dry miniature high-speed motors, precision consumer electronics, smart micro devices and compact micro-transmission systems.

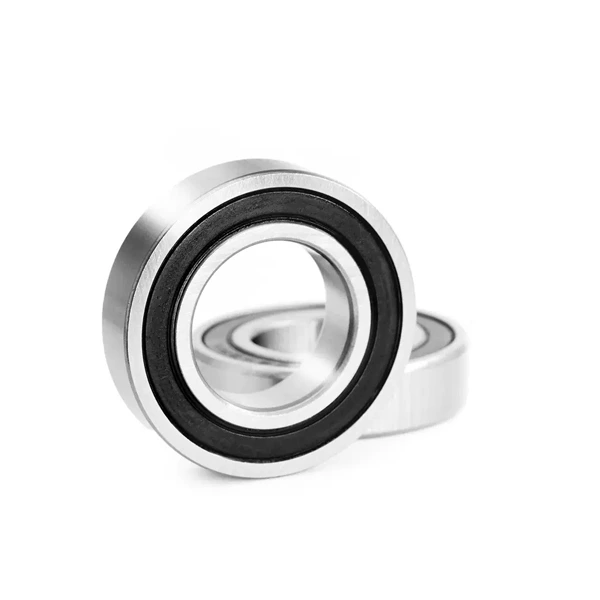

6909-2RS Double Rubber Seals: This fully sealed variant adopts double-sided contact rubber seals to comprehensively isolate moisture, water splashes, oil mist and corrosive fine dust. It tightly locks internal micro lubricating grease to prevent leakage, oxidation and aging, enabling long-term maintenance-free operation. It stably adapts to humid, dusty and mildly harsh working conditions for portable, outdoor and industrial micro-precision electromechanical equipment.
6909 Bearing Material Performance
Carbon Steel: High cost-performance standard industrial material with uniform hardness and stable anti-fatigue properties. It delivers reliable wear resistance and smooth high-speed rotation for conventional micro-precision equipment, offering optimal cost efficiency for mass electronic products and small industrial batch applications.
304 Stainless Steel: Food-grade stainless steel with superior oxidation and rust resistance. It avoids micro corrosion and precision degradation in humid and open environments, ideal for miniature food processing equipment, sanitary micro-devices and daily precision gadgets.
316 Stainless Steel: Marine-grade corrosion-resistant material with strong resistance to acid, alkali and salt spray. It withstands mild chemical erosion and coastal high humidity, perfect for marine micro-precision parts, sanitary instruments and chemical miniature equipment.
420 Stainless Steel: High-toughness martensitic stainless steel balancing moderate corrosion resistance and high surface hardness. It features stable wear and impact resistance, maintaining precise micro dimensional stability during long-term continuous high-speed operation.
440 Stainless Steel: Ultra-high hardness stainless steel with top-tier abrasion resistance and structural stability. It sustains accurate and stable operation under severe wear and corrosive conditions, customized for high-end miniature ultra-thin precision industrial and electronic equipment.
Core Advantages And Industrial Applications
The 6909 deep groove ball bearing features an ultra-compact micro-size structure, lightweight ultra-thin design, ultra-low noise and durable high-speed precision. Three versatile sealing types and five professional material grades fully cover economical, anti-rust, wear-resistant and anti-corrosion micro-precision application scenarios. It is extensively used in miniature precision motors, smart wearable devices, consumer electronics, small household appliances, micro medical devices, automated micro-components and light-duty sanitary machinery. This bearing provides compact, low-maintenance and high-efficiency precision rotation solutions for modern micro-space limited miniaturized mechanical systems, satisfying diverse commercial and industrial precision operation demands.
