LMH10UU Linear Bearings

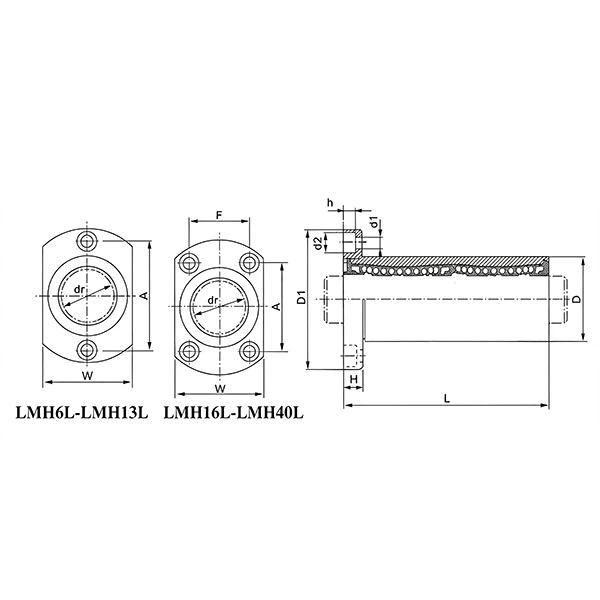

| LMH10UU Linear Bearings | |||
|---|---|---|---|
| Part Number | LMH10UU | F | - |
| Number of Ball Columns | 4 | d1 | 4.5 |
| dr | 10 | d2 | 7.5 |
| D | 19 | h | 4.1 |
| L | 29 | Verticality of flange | 12 |
| D1 | 40 | Radial runout | 12 |
| W | 25 | Dynamic Load Co(N) | 270 |
| H | 6 | Static Load Cor(N) | 410 |
| A | 29 | Weight(Kg) | 0.033 |

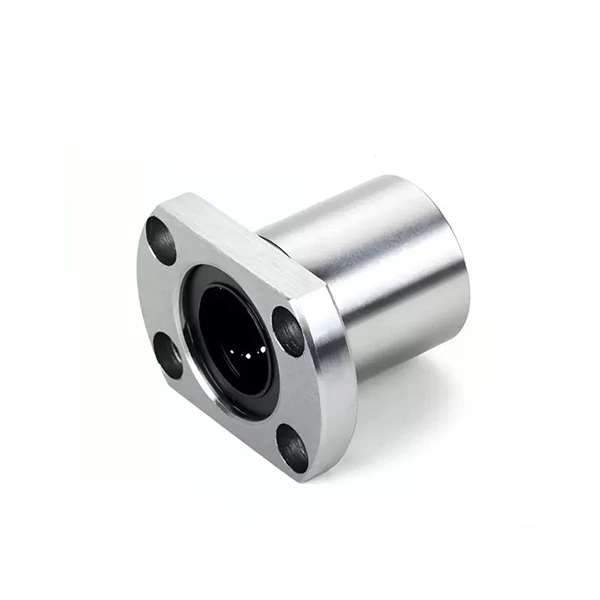

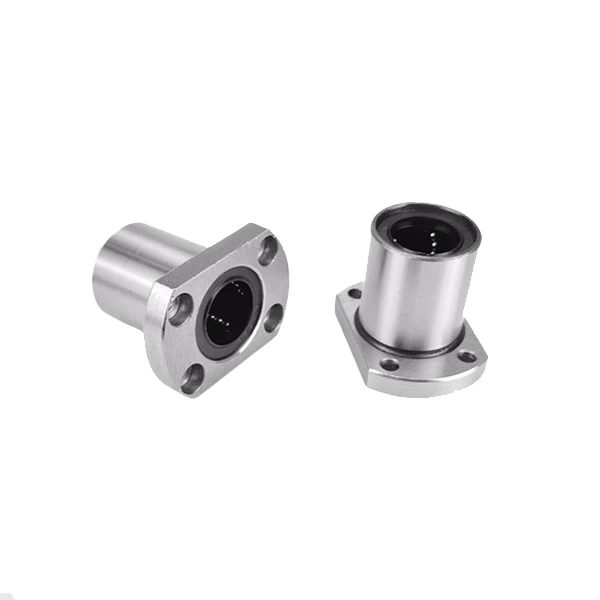

LMH10 Linear Bearing | LMH10UU / LMH10OP Types Available
The LMH10 linear bearing is a precision extended flange-type linear motion component. With a lengthened body and integrated flange structure, it delivers enhanced load capacity, better running stability and ultra-low friction sliding. Offered in LMH10UU closed type and LMH10OP open type, this bearing supplies stable and cost-effective linear motion solutions for precision automation and mechanical equipment.
LMH10UU vs LMH10OP | Model Differences
LMH10UU (Closed Type): Features a fully closed double rubber sealing design with excellent dustproof and anti-fouling performance. It retains internal lubrication and enables long-term maintenance-free operation, suitable for standard workshops and dusty working conditions with regular linear strokes.
LMH10OP (Open Type): Adopts an open hollow structure with pre-set oil grooves for easy lubrication and efficient heat dissipation. It effectively avoids heat buildup during high-frequency continuous operation, ideal for long-stroke and high-speed precision linear motion applications.
Material Introduction
Bearing Steel Shell And Steel Balls: LMH10 linear bearings adopt high-quality bearing steel with professional heat treatment. High hardness and outstanding wear resistance ensure stable load performance and smooth sliding, extending service life during long-term continuous operation.
Engineering Plastic Retainer And Rubber Seals: High-toughness engineering plastic retainer supports flexible steel ball circulation with low noise and low running resistance. LMH10UU is equipped with durable rubber seals for reliable dustproof protection.
Product Features
Lengthened body structure for improved load capacity and stability. Integrated flange design for quick and secure mounting. Ultra-low friction for smooth and consistent linear motion. High positioning accuracy and excellent repeatability. Two structural types adapt to various working environments.
Application Scenarios
LMH10 extended flange linear bearings are widely used in 3D printers, CNC engraving machines, precision sliding platforms, robotic arms and small automation machinery. LMH10UU is ideal for conventional and dusty environments; LMH10OP fits high-speed, long-stroke precision automation scenarios.
