LMH16UU Linear Bearings

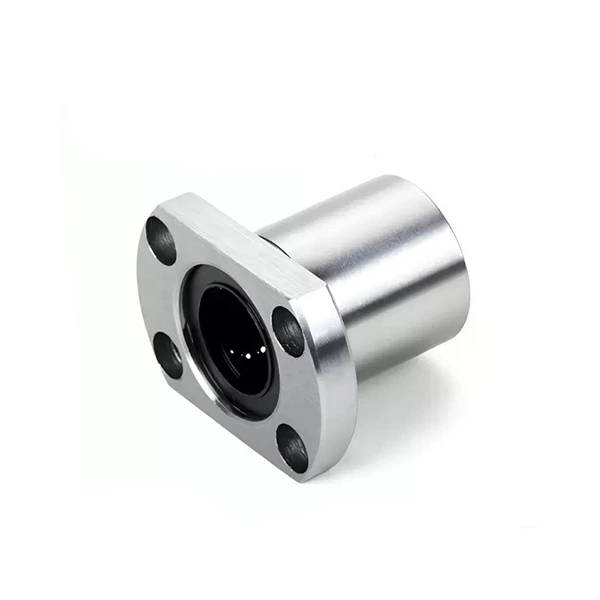

| LMH16UU Linear Bearings | |||
|---|---|---|---|

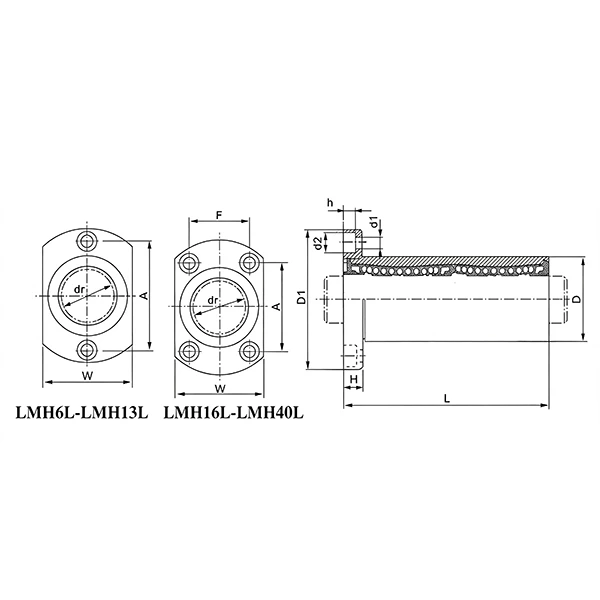

| Part Number | LMH16UU | F | 22 |
| Number of Ball Columns | 5 | d1 | 4.5 |
| dr | 16 | d2 | 7.5 |
| D | 28 | h | 4.1 |
| L | 37 | Verticality of flange | 12 |
| D1 | 48 | Radial runout | 12 |
| W | 34 | Dynamic Load Co(N) | 790 |
| H | 6 | Static Load Cor(N) | 1200 |
| A | 31 | Weight(Kg) | 0.112 |

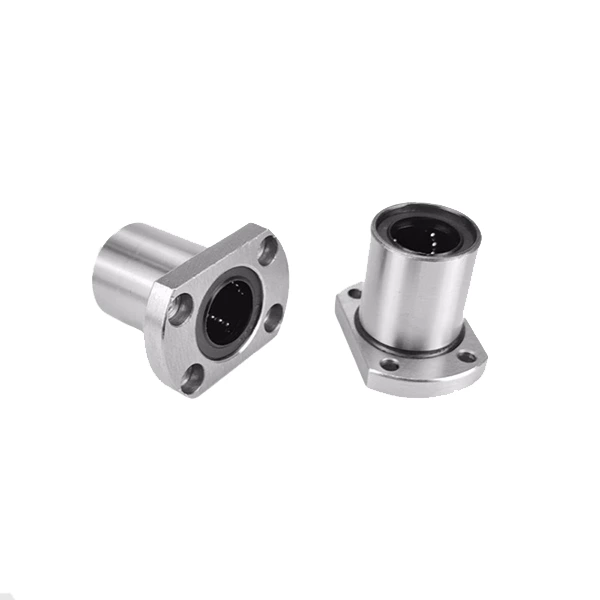

LMH16 Linear Bearing | LMH16UU / LMH16OP Types Available
The LMH16 linear bearing is a heavy-duty extended flange-type linear motion component. Built with a lengthened body and integrated flange structure, it delivers higher rigidity, larger load capacity and more stable operation than standard bearings. Available in LMH16UU closed type and LMH16OP open type, this precision bearing offers reliable and cost-effective linear motion solutions for medium precision automation machinery.
LMH16UU vs LMH16OP | Model Differences
LMH16UU (Closed Type): Comes with a fully closed double rubber sealing structure for superior dustproof and anti-fouling performance. It locks internal lubrication securely, enabling long-term maintenance-free operation, suitable for standard workshops and dusty working environments with regular linear stroke movement.
LMH16OP (Open Type): Features an open hollow design with built-in oil grooves for convenient lubrication and fast heat dissipation. It effectively reduces heat accumulation during high-frequency continuous operation, ideal for long-stroke, high-speed and high-precision linear motion applications.
Material Introduction
Bearing Steel Shell And Steel Balls: LMH16 linear bearings adopt high-quality bearing steel with professional heat treatment. High surface hardness and excellent wear resistance ensure stable load performance and ultra-smooth sliding, extending service life under continuous operating conditions.
Engineering Plastic Retainer And Rubber Seals: High-toughness engineering plastic retainer supports flexible, low-noise steel ball circulation with low running resistance. LMH16UU is equipped with wear-resistant rubber seals for stable long-term dustproof protection.
Product Features
Lengthened body for enhanced rigidity and heavier load capacity. Integrated flange for fast and firm installation. Ultra-low friction ensures smooth and stable linear motion. High positioning accuracy and excellent motion repeatability. Dual structural types adapt to various working scenarios.
Application Scenarios
LMH16 extended flange linear bearings are widely applied in CNC engraving machines, automated sliding platforms, industrial robotic arms, 3D printers and precision automation equipment. LMH16UU fits conventional and dusty environments; LMH16OP is optimal for high-speed, long-stroke precision automation systems.
