LMH35UU Linear Bearings

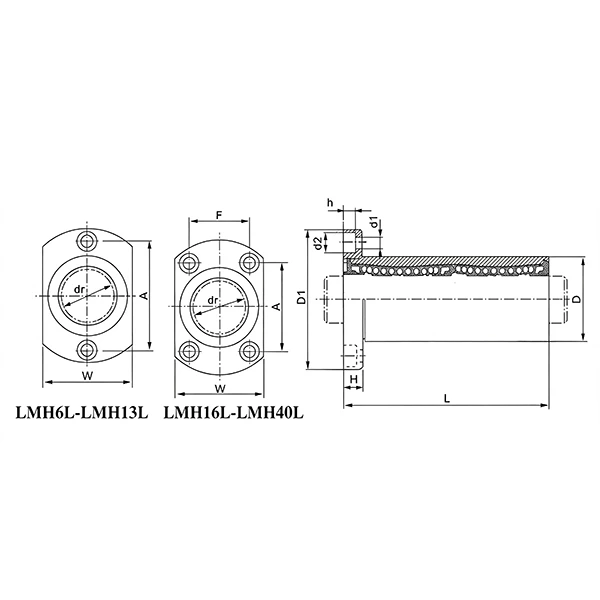

| LMH35UU Linear Bearings | |||
|---|---|---|---|
| Part Number | LMH35UU | F | 38 |
| Number of Ball Columns | 6 | d1 | 6.6 |
| dr | 35 | d2 | 11 |
| D | 52 | h | 6.1 |
| L | 70 | Verticality of flange | 20 |
| D1 | 82 | Radial runout | 20 |
| W | 58 | Dynamic Load Co(N) | 1700 |
| H | 10 | Static Load Cor(N) | 3200 |
| A | 55 | Weight(Kg) | 0.59 |

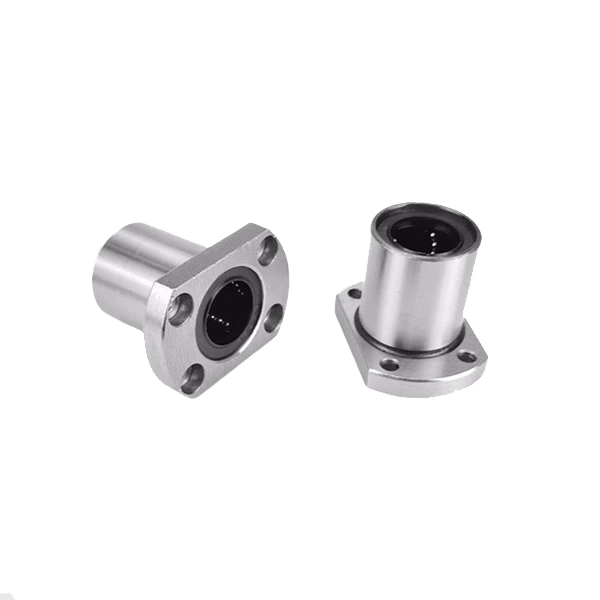

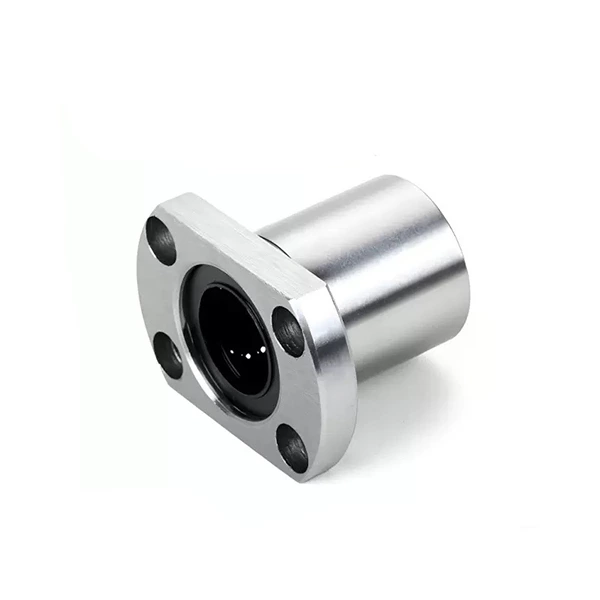

LMH35 Linear Bearing | LMH35UU / LMH35OP Types Available
The LMH35 linear bearing is a large heavy-duty extended flange-type linear motion component. Its lengthened body and integrated flange structure provide high rigidity, enhanced load capacity and stable linear operation. Supplied in LMH35UU closed type and LMH35OP open type, this precision bearing delivers durable, cost-effective linear motion solutions for heavy industrial and high-precision automation systems.
LMH35UU vs LMH35OP | Model Differences
LMH35UU (Closed Type): Equipped with a full double rubber sealing structure for reliable dust and contaminant protection. It preserves internal lubrication and enables long-term maintenance-free operation, ideal for standard workshops and dusty industrial environments with regular linear stroke movement.
LMH35OP (Open Type): Features an open hollow structure with built-in oil grooves for easy lubrication and fast heat dissipation. It effectively reduces heat accumulation during high-frequency continuous operation, perfect for long-stroke, high-speed and heavy-load precision linear motion applications.
Material Introduction
Bearing Steel Shell And Steel Balls: LMH35 linear bearings adopt high-grade bearing steel with professional heat treatment. High surface hardness and excellent wear resistance ensure stable heavy-load performance and ultra-smooth sliding, extending service life under long-term continuous industrial operation.
Engineering Plastic Retainer And Rubber Seals: High-toughness engineering plastic retainer supports flexible, low-noise steel ball circulation with low running resistance. LMH35UU is fitted with premium wear-resistant rubber seals for stable long-term dustproof and anti-fouling performance.
Product Features
Extended body design for improved structural rigidity and heavy load capacity. Integrated flange enables fast, secure mounting. Ultra-low friction ensures smooth, consistent linear motion. High positioning accuracy and excellent repeatability. Dual structure types adapt to various heavy-duty working conditions.
Application Scenarios
LMH35 extended flange linear bearings are widely used in heavy-duty CNC machine tools, large engraving machinery, automated sliding platforms, industrial robotic arms and heavy automation production lines. LMH35UU suits conventional and dusty environments; LMH35OP is optimal for high-speed, long-stroke heavy-duty precision automation equipment.
