GE10 Spherical Plain Bearings

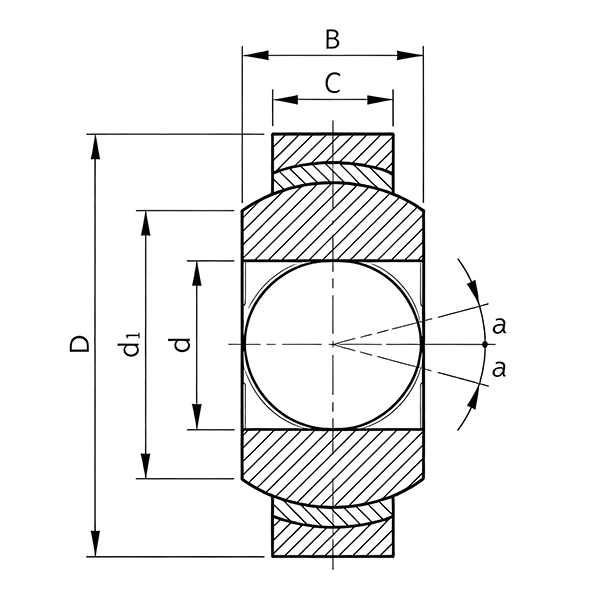

| GE10 Spherical Plain Bearings | |||
|---|---|---|---|
| Part Number | GE10 | R | 0.3 |
| d | 10 | Weight(Kg) | 0.011 |
| D1 | 19 | Dynamic Load Co(N) | 8150 |
| B | 9 | Static Load Cor(N) | 40500 |

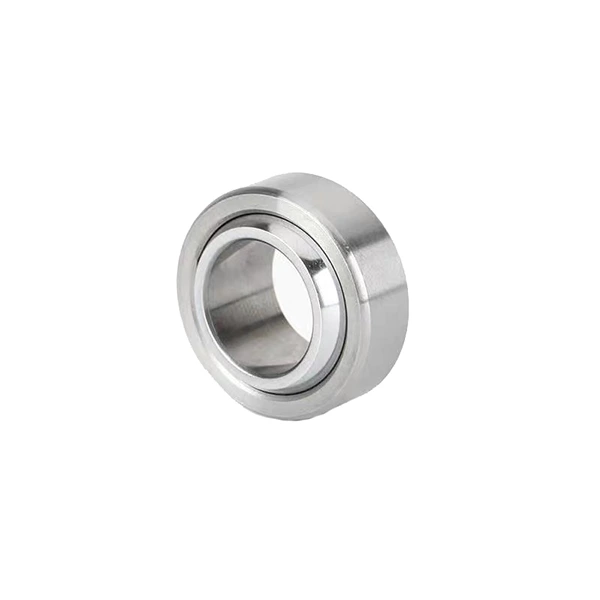

GE10 Spherical Plain Bearing | GE10E / GE10ES Types Available
The GE10 spherical plain bearing is a compact precision joint bearing designed for oscillating, tilting and radial movement. It features a self-aligning structure to compensate for shaft misalignment, delivering low friction and durable mechanical performance. Available in GE10E open type and GE10ES sealed type, this bearing provides cost-effective motion solutions for general machinery and precision automation equipment.

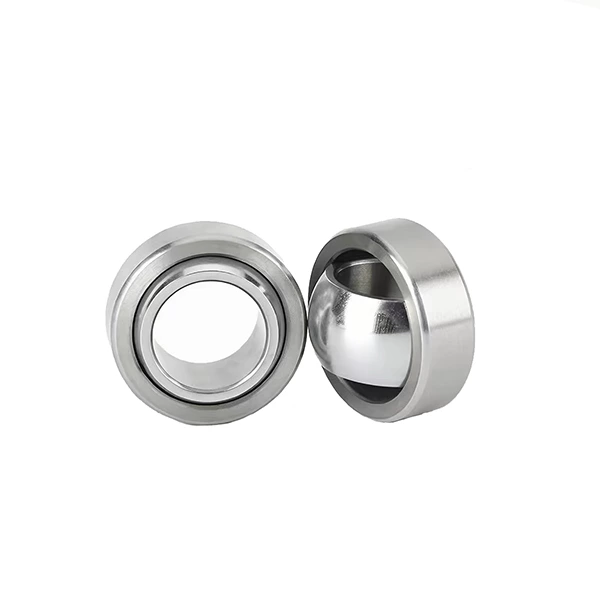

GE10E vs GE10ES | Model Differences
GE10E (Open Type): Standard open structure without sealing covers. It allows convenient grease filling and fast heat dissipation during continuous swing movement. Suitable for clean indoor workshops, low-speed and light-load working environments with regular maintenance.
GE10ES (Sealed Type): Equipped with double rubber sealing rings on both sides. The tight sealing structure effectively blocks dust, water and debris, retaining internal lubrication for long-term maintenance-free operation. Ideal for dusty, humid and harsh outdoor working conditions.
Material Introduction
Outer And Inner Ring: GE10 spherical plain bearings adopt high-quality bearing steel with professional quenching and tempering treatment. High surface hardness, strong wear resistance and excellent impact resistance ensure stable load capacity and long service life under frequent oscillating operation.
Lubrication And Sealing Material: The inner spherical surface adopts precision grinding and solid lubrication treatment for smooth self-lubricating performance. GE10ES uses high-elasticity wear-resistant rubber seals to ensure durable dustproof and anti-leakage performance.
Product Features
Excellent self-aligning capability to correct installation errors. Low friction coefficient ensures flexible swing and tilting movement. High wear resistance and strong impact resistance. Compact structure saves installation space. Open and sealed two types adapt to diverse working environments.
Application Scenarios
GE10 spherical plain bearings are widely used in automation equipment, hydraulic machinery, automotive parts, engineering machinery hinges, textile machines and general mechanical transmission structures. GE10E fits clean and regularly maintained equipment; GE10ES is suitable for dusty, humid and harsh industrial scenarios.
