GE4 Spherical Plain Bearing | GE4E, GE4ES, GE4ES-2RS Industrial Joint Bearings

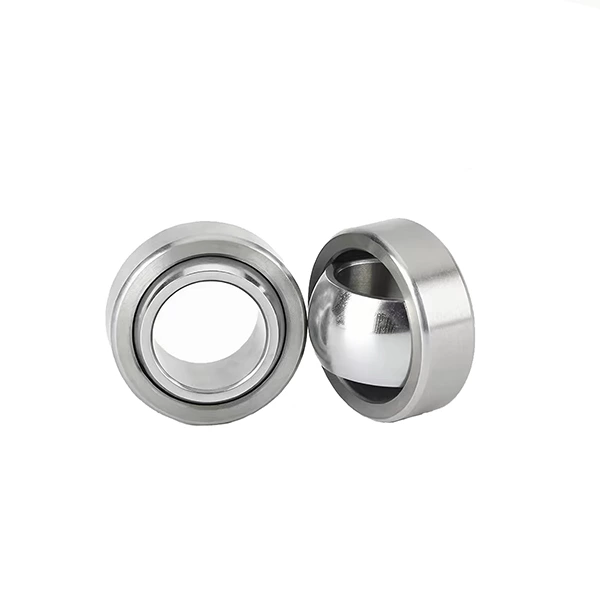

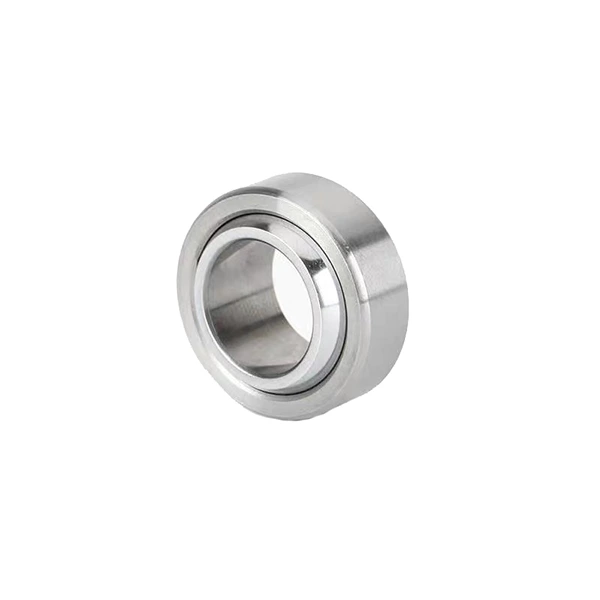

The GE4 spherical plain bearing is a miniature metric radial joint bearing widely used for precision swing and linkage mechanical systems. Featuring a compact inner bore size of 4mm and integrated spherical sliding structure, it enables flexible angular deflection and self-aligning compensation to resolve shaft misalignment and structural offset. Capable of bearing radial loads and slight bidirectional axial loads, this low-friction joint bearing supports low-speed reciprocating swing and intermittent motion. It is available in three core specifications: GE4E, GE4ES and GE4ES-2RS, with differentiated structural designs and material configurations to fit diverse precision industrial scenarios.

GE4E / GE4ES / GE4ES-2RS Model Differences And Features

GE4E (Basic Open Type): The base open-structured joint bearing with a single-split outer ring, no lubrication groove or sealing structure. It features minimal structural resistance and flexible spherical sliding performance. Designed for clean, dry and low-load operating environments, it supports regular manual lubrication maintenance and is ideal for simple precision linkage mechanisms with low environmental requirements.

GE4ES (Lubrication Optimized Type): Upgraded on the GE4E basis with built-in annular lubrication groove and oil holes. This structure ensures uniform grease distribution, effectively improving lubrication efficiency and reducing sliding wear during long-term reciprocating operation. Without sealing shields, it retains excellent heat dissipation, suitable for medium-cycle swing equipment that requires periodic relubrication.

GE4ES-2RS (Double Sealed Type): Equipped with dual-sided 2RS rubber contact seals on the basis of ES structure. The full-enclosure sealing design effectively blocks fine dust, moisture and oil contaminants, preventing internal grease loss and pollution. It realizes long-term maintenance-free operation, perfectly adapting to dusty, humid and variable complex working conditions.

Common Bearing Material Introduction

High Carbon Chrome Bearing Steel: The standard material for conventional GE4 series bearings. It delivers high surface hardness, excellent wear resistance and stable sliding performance. With strong compression resistance and long mechanical fatigue life, it offers outstanding cost performance, suitable for most indoor precision machinery and general industrial linkage equipment.

Stainless Steel: Premium customized material with excellent oxidation, rust and weak corrosion resistance. It avoids surface rust and precision attenuation in humid, outdoor and light corrosive environments. Featuring stable dimensional accuracy and sanitary performance, it meets the usage standards of food, medical and outdoor precision equipment.

Core Advantages And Industrial Applications

The GE4 spherical plain bearing stands out for its ultra-compact size, flexible self-aligning swing, low friction and high positioning accuracy. Multiple models and material options achieve full-scene coverage: open GE4E for simple clean equipment, lubrication-enhanced GE4ES for cyclic operating mechanisms, and sealed GE4ES-2RS for harsh working environments. Widely applied in precision instrumentation, miniature automation linkages, robot joints, medical equipment, light industrial machinery and aerospace auxiliary components, it provides reliable, low-wear and high-precision motion connection solutions for miniature mechanical systems.
