LM10UU Linear Bearings
| LM10UU Linear Bearings | |||
|---|---|---|---|

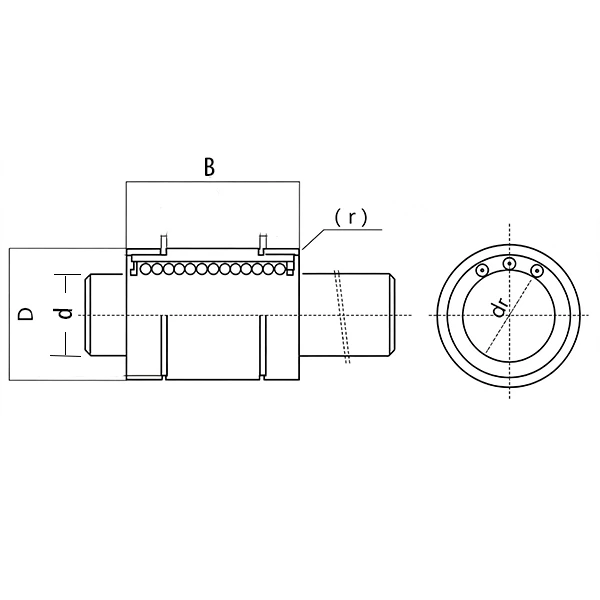

| Part Number | LM10UU | Weight(Kg) | 0.030 |
| d | 10 | Dynamic Load Co(N) | 380 |
| D1 | 19 | Static Load Cor(N) | 560 |
| B | 29 | ||
LM10 Linear Bearing | LM10UU / LM10OP Types Available
The LM10 linear bearing is a high-precision standard linear motion component designed for low-friction linear sliding. It provides accurate positioning, stable high-speed operation and great repeatability for precision automation machinery. Supplied in LM10UU closed type and LM10OP open type, this bearing delivers durable and cost-effective linear motion solutions for diverse industrial equipment.
LM10UU vs LM10OP | Model Differences

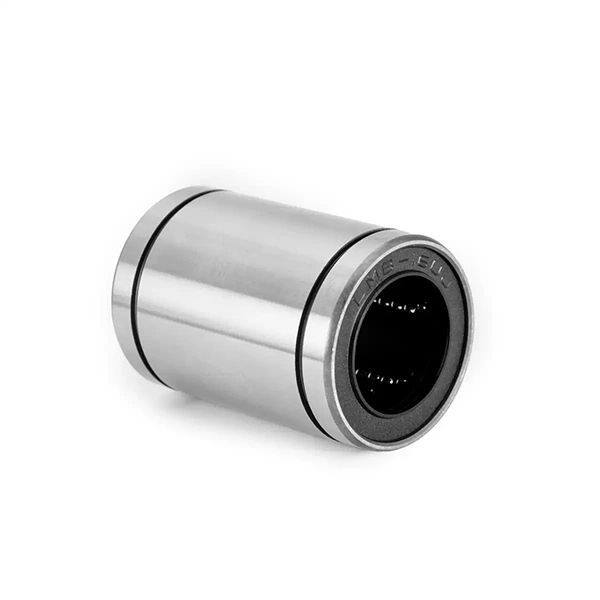

LM10UU (Closed Type): Equipped with double-sided rubber sealed dust-proof structure. It effectively isolates dust, debris and contaminants, retains internal grease and realizes long-term maintenance-free operation. It is suitable for standard and dusty working environments with conventional stroke operation.

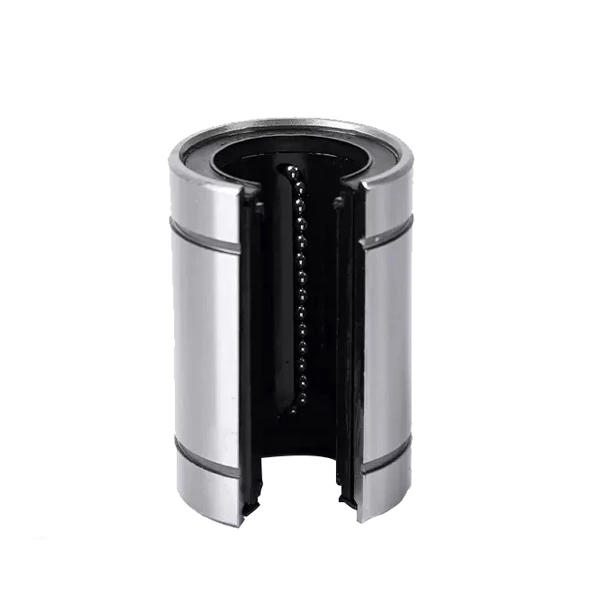

LM10OP (Open Type): Features an open hollow structure with reserved oil grooves for convenient lubrication and efficient heat dissipation. It minimizes heat accumulation during continuous high-frequency movement, adapting to long-stroke, high-speed and high-load linear motion working conditions.
Material Introduction
Bearing Steel Shell & Steel Balls: LM10 linear bearings adopt premium bearing steel with strict heat treatment. The high-hardness shell and steel balls offer excellent wear resistance and structural stability, ensuring smooth linear movement and long service life under continuous operating conditions.
Engineering Plastic Retainer & Rubber Seals: High-toughness plastic retainer ensures flexible steel ball circulation with low noise and low resistance. LM10UU is equipped with wear-resistant rubber seals to achieve reliable dustproof and anti-fouling performance.
Product Features
Low friction for ultra-smooth linear motion. High positioning accuracy and motion repeatability. Dual structural designs meet different working demands. Excellent heat dissipation and dustproof performance. Standard compact size for easy installation and replacement.
Application Scenarios
LM10 linear bearings are widely used in 3D printers, CNC engraving machines, automatic sliding tables, mechanical arms, packaging equipment and industrial automation transmission systems. LM10UU applies to conventional and dusty environments; LM10OP is ideal for high-speed, long-stroke precision automation applications.
