LM16UU Linear Bearings

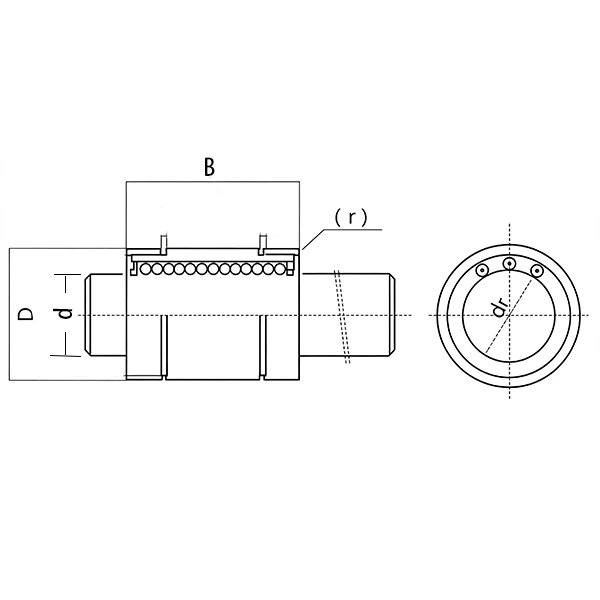

| LM16UU Linear Bearings | |||
|---|---|---|---|
| Part Number | LM16UU | Weight(Kg) | 0.069 |
| d | 16 | Dynamic Load Co(N) | 790 |
| D1 | 28 | Static Load Cor(N) | 1200 |
| B | 37 | ||
LM16 Linear Bearing | LM16UU / LM16OP Types Available
The LM16 linear bearing is a high-precision linear motion component designed for low-friction, high-accuracy linear sliding. It delivers stable high-speed performance, excellent positioning repeatability and sturdy structural stability, ideal for medium-load precision automation machinery. Offered in LM16UU closed type and LM16OP open type, this bearing provides durable and cost-effective linear motion solutions for industrial automation and mechanical transmission systems.
LM16UU vs LM16OP | Model Differences

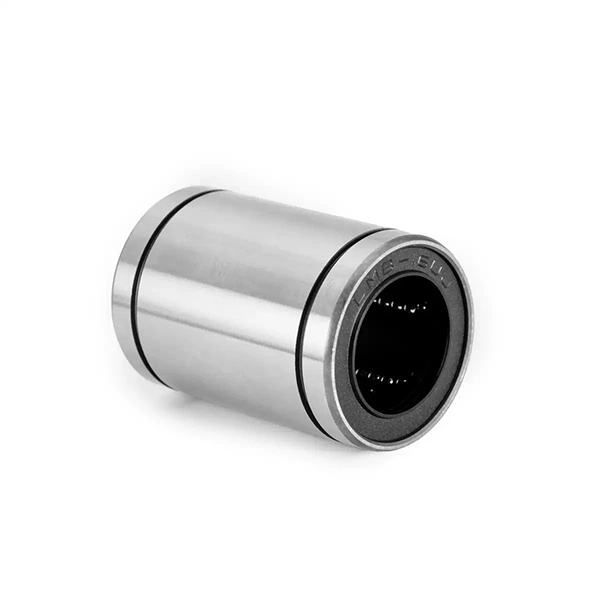

LM16UU (Closed Type): Features a full closed structure with double rubber seals. The integrated dust-proof design effectively blocks dust, debris and contaminants, retaining internal lubrication to support long-term maintenance-free operation. It is suitable for standard working conditions and dusty industrial environments with regular linear strokes.

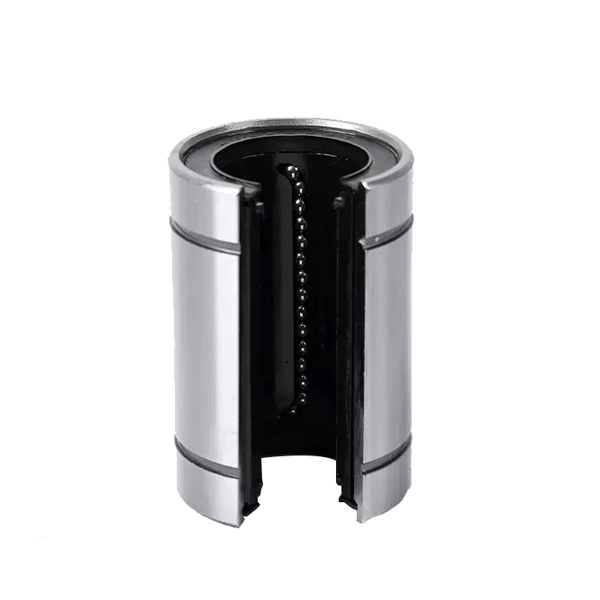

LM16OP (Open Type): Adopts an open hollow structure with reserved oil grooves for convenient lubrication and efficient heat dissipation. It greatly reduces heat accumulation during high-frequency continuous movement, making it perfect for long-stroke, high-speed and medium-heavy load linear motion applications.
Material Introduction
Bearing Steel Shell & Steel Balls: LM16 linear bearings adopt premium bearing steel with precise heat treatment. High surface hardness and excellent wear resistance ensure smooth linear sliding, strong pressure resistance and long service life under continuous operating loads.
Engineering Plastic Retainer & Rubber Seals: High-toughness plastic retainer ensures flexible steel ball circulation with low noise and low running resistance. LM16UU is equipped with wear-resistant rubber seals to achieve reliable dustproof and anti-fouling performance.
Product Features
Ultra-low friction for smooth linear motion. High positioning accuracy and stable repeatability. Dual structural designs meet different load and speed demands. Excellent heat dissipation and dustproof performance. Standard mounting size for easy installation and replacement.
Application Scenarios
LM16 linear bearings are widely used in CNC machining equipment, automated sliding platforms, robotic arms, packaging machinery, 3D printing equipment and industrial automation systems. LM16UU suits conventional and dusty working environments; LM16OP is ideal for high-speed, long-stroke and high-precision automation equipment.
