LM60UU Linear Bearings
| LM60UU Linear Bearings | |||
|---|---|---|---|

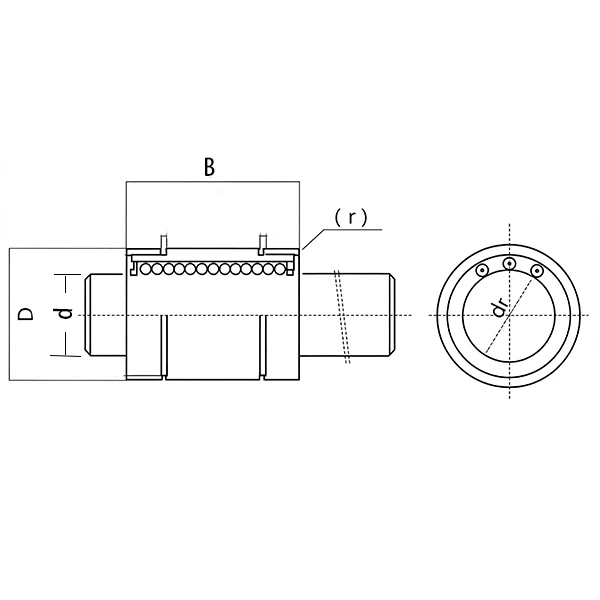

| Part Number | LM60UU | Weight(Kg) | 1.42 |
| d | 60 | Dynamic Load Co(N) | 6150 |
| D1 | 90 | Static Load Cor(N) | 9800 |
| B | 110 | ||
LM60 Linear Bearing | LM60UU / LM60OP Types Available
The LM60 linear bearing is a large-size, heavy-duty high-precision linear motion component. Built for low-friction and stable linear sliding, it features ultra-high load capacity, precise positioning and durable high-speed performance. Available in LM60UU closed type and LM60OP open type, it provides reliable and cost-effective linear motion solutions for heavy industrial automation and mechanical transmission systems.
LM60UU vs LM60OP | Model Differences

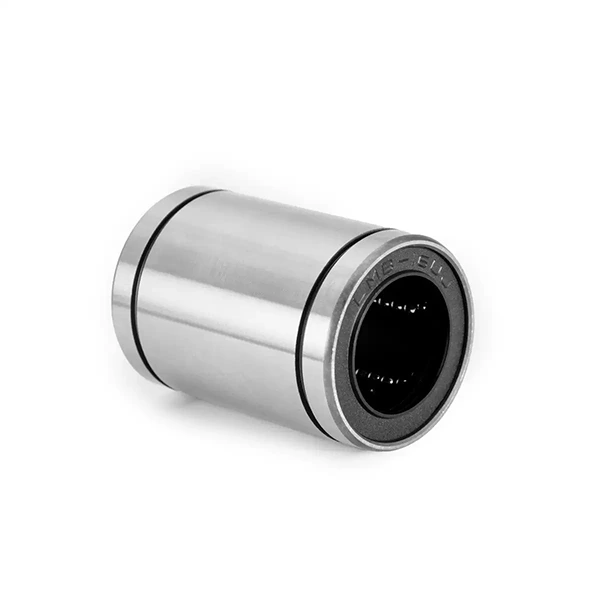

LM60UU (Closed Type): Equipped with fully closed double rubber seals for complete dust and contaminant isolation. It locks internal lubrication firmly and enables long-term maintenance-free operation, ideal for standard factory environments and dusty working conditions with regular linear strokes.

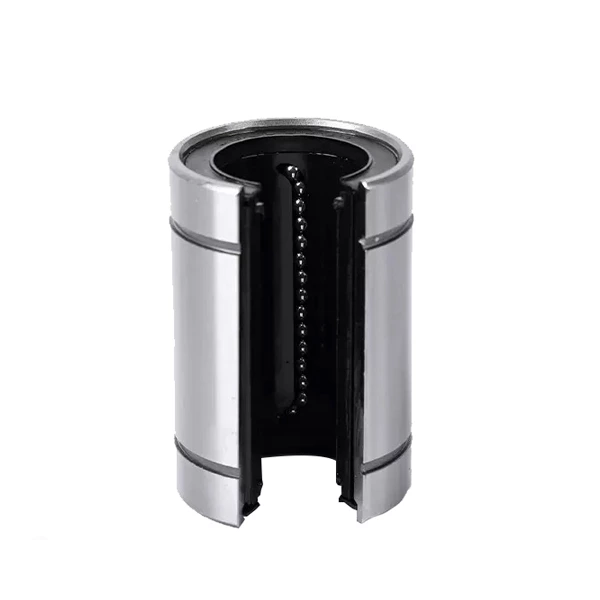

LM60OP (Open Type): Adopts an open hollow structure with reserved oil grooves for quick lubrication and efficient heat dissipation. It avoids excessive heat accumulation during long-cycle, high-frequency operation, perfectly suited for long-stroke, high-speed and super heavy-load linear motion scenarios.
Material Introduction
Bearing Steel Shell & Steel Balls: LM60 linear bearings adopt high-quality bearing steel with strict heat treatment. High surface hardness and strong wear resistance deliver stable heavy-load bearing capacity and ultra-smooth sliding, ensuring long service life under continuous heavy-duty operation.
Engineering Plastic Retainer & Rubber Seals: High-toughness engineering plastic retainer ensures flexible steel ball circulation with low noise and low resistance. LM60UU is equipped with wear-resistant rubber seals to achieve stable dustproof and anti-fouling protection.
Product Features
Ultra-low friction for consistent smooth linear motion. High positioning accuracy and excellent repeatability. Dual structural types meet heavy-duty speed and load requirements. Superior heat dissipation and dustproof performance. Standard dimension design for easy installation and replacement.
Application Scenarios
LM60 linear bearings are widely used in large CNC machine tools, heavy-duty automation platforms, industrial robotic arms, large packaging equipment and automated production lines. LM60UU is suitable for conventional and dusty industrial environments; LM60OP is the best choice for high-speed, long-stroke and high-precision heavy-duty automation equipment.
