R5 Deep groove ball bearing
| R5 Deep groove ball bearing | |||
|---|---|---|---|
| Part Number | R5 | Ball Number | 7 |
| d | 5 | Ball Size | 3.175 |
| D1 | 16 | Dynamic Load Co(N) | 1480 |
| B | 5 | Static Load Cor(N) | 490 |
| R | 0.3 | Grease Speed | 45000 |
| Weight(Kg) | 0.0032 | Oil Speed | 53000 |
R5 Miniature Deep Groove Ball Bearing | Open, ZZ, 2RS High Precision Bearings
The R5 deep groove ball bearing is a high-precision imperial miniature bearing engineered for ultra-compact, space-constrained micro mechanical systems. Featuring standard imperial dimensions, finely polished raceways and precision rolling elements, this single-row micro bearing delivers ultra-low friction, minimal vibration and consistent high-speed stability. Optimized for light-load, high-frequency cyclic operation, the R5 bearing maintains excellent dimensional accuracy and structural rigidity, perfectly meeting the precision demands of miniaturized electromechanical equipment. Available in three universal industrial configurations, open type, R5ZZ double metal shield type and R5-2RS double rubber sealed type, this imperial micro bearing supports five industrial-grade materials to adapt to economical, sanitary, high-wear and corrosive working environments for diverse micro-precision applications.
R5 Open / ZZ / 2RS Structural Features

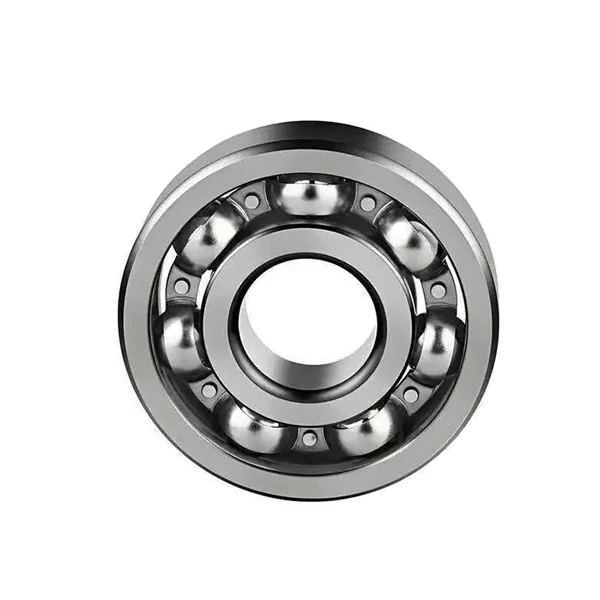

R5 Open Type: The unsealed open structure enables unobstructed air circulation and efficient heat dissipation, effectively preventing thermal accumulation during prolonged high-speed micro operation. It supports convenient grease replenishment and simple routine maintenance without generating extra rotational resistance. Ideal for clean, dry indoor workshops and fully enclosed precision micro machinery, it retains ultra-high running accuracy and stable long-cycle performance for lightweight micro mechanical assemblies.

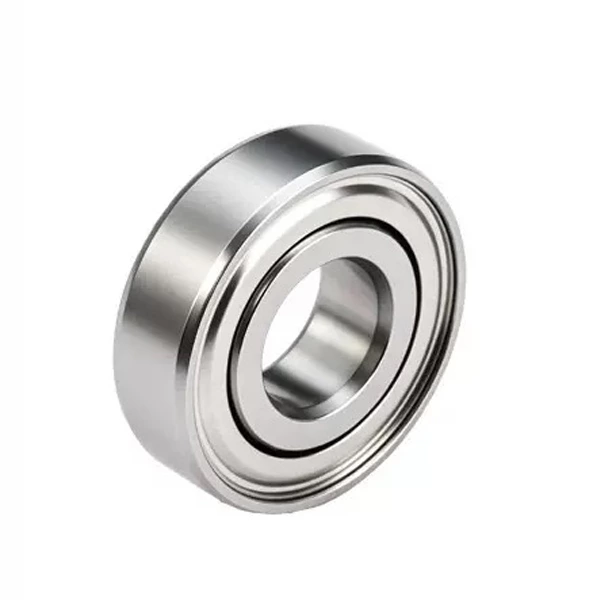

R5ZZ Double Metal Shields: Equipped with dual non-contact steel shields, the R5ZZ miniature bearing effectively blocks fine dry dust, floating micro particles and tiny industrial debris. The non-contact protective design preserves original high-speed smoothness and micro precision with negligible friction loss. Featuring reliable durability and outstanding cost performance, it is widely applied in dry working conditions for micro high-speed motors, drone precision parts, optical instruments and miniature transmission systems.

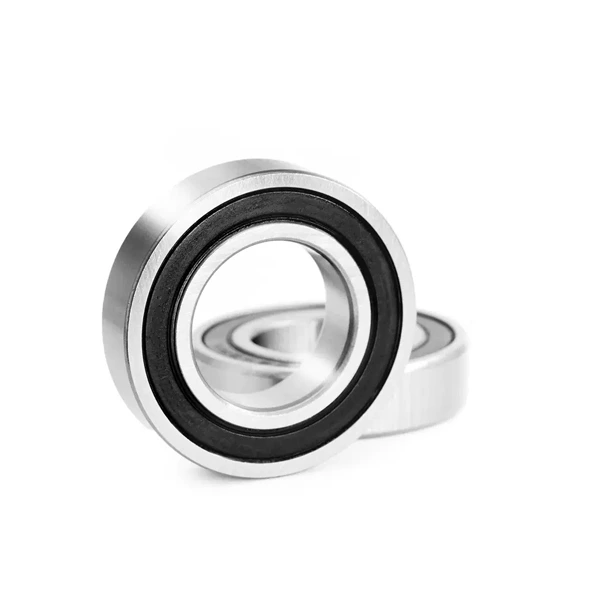

R5-2RS Double Rubber Seals: The fully sealed R5-2RS variant adopts double-sided contact rubber seals to comprehensively isolate moisture, water splashes, oil mist and corrosive fine dust. It tightly locks internal micro lubricating grease to prevent leakage, oxidation and aging, enabling long-term maintenance-free operation. This versatile sealed model operates stably in humid, dusty and mildly harsh scenarios for portable micro precision devices and outdoor miniature electromechanical equipment.
R5 Bearing Material Performance
Carbon Steel: High cost-performance industrial base material with uniform hardness and stable anti-fatigue properties. It provides reliable wear resistance and smooth high-speed rotation for conventional micro precision machinery, ideal for mass batch production and cost-sensitive miniature equipment projects.
304 Stainless Steel: Food-grade stainless steel with excellent anti-rust and anti-oxidation performance. It resists micro corrosion in humid and open environments, perfectly suitable for food processing accessories and sanitary micro precision equipment.
316 Stainless Steel: Marine-grade corrosion-resistant material with strong resistance to acid, alkali and salt spray erosion. It withstands coastal high humidity and mild chemical corrosion, applicable for marine micro instruments and light chemical miniature machinery.
420 Stainless Steel: High-toughness martensitic stainless steel balancing moderate corrosion resistance and high surface hardness. It maintains stable wear resistance and precise dimensional stability during continuous high-speed micro cyclic operation.
440 Stainless Steel: Ultra-high hardness stainless steel with top-tier abrasion resistance and structural stability. It sustains accurate and stable micro operation under severe wear and corrosive conditions, customized for high-end micro precision mechanical systems.
Core Advantages And Industrial Applications
The R5 imperial miniature bearing features an ultra-compact structure, lightweight design, ultra-low noise and durable high-speed precision. Three universal sealing solutions and five diversified material grades fully meet industrial demands for economy, rust resistance, wear resistance and corrosion resistance. It is extensively applied in miniature high-speed motors, drone core components, optical precision instruments, micro transmission parts, portable micro power tools and compact medical devices. As a critical ultra-small imperial rotary component for space-limited micro mechanical systems, the R5 bearing delivers high-efficiency, low-maintenance and ultra-precise rotation solutions for modern miniaturized industrial and commercial precision equipment.
