SA10 Spherical Plain Bearings

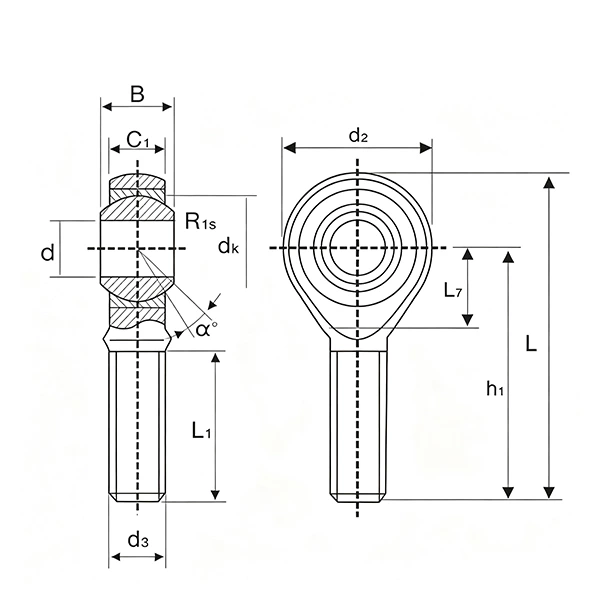

| SA10T/K Spherical Plain Bearings | |||
|---|---|---|---|
| Part Number | SA10T/K | h1 | 48 |
| d | 10 | L | 62 |
| B | 14 | R1s | 0.3 |
| dk | 19.05 | a°≈ | 13 |
| C1 | 10.5 | Dynamic Load Co(N | 14500 |
| d2 | 28 | Static Load Cor(N) | 18000 |
| D | M10*1.5 | Weight(Kg) | 0.055 |

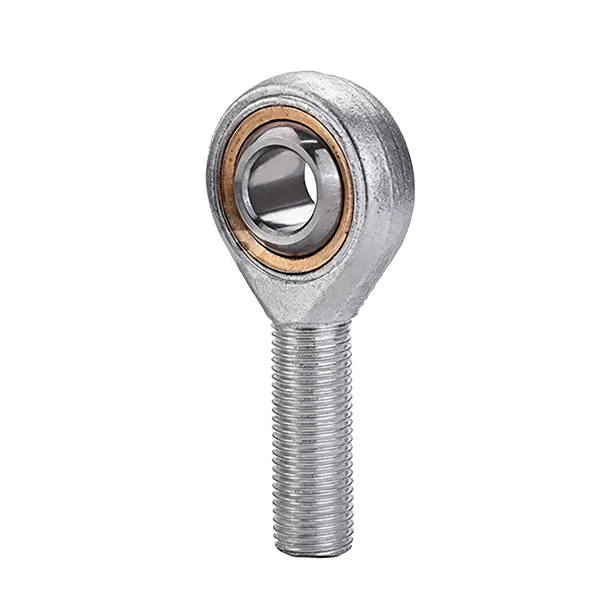

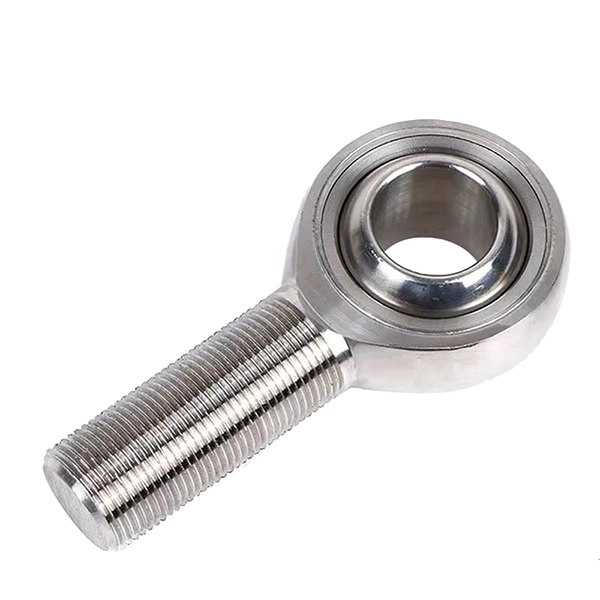

SA10 Spherical Plain Bearing | SA10T / SA10K Steel And Stainless Steel
The SA10 spherical plain bearing is a standard female thread rod end bearing built for light and medium-duty industrial automation and precision machinery. It supports flexible multi-directional oscillation and tilting movement, with great self-aligning performance to compensate for mounting deviation. Available in SA10T and SA10K models in bearing steel and stainless steel, it provides low-friction, stable motion solutions for a wide range of industrial equipment.
SA10T vs SA10K | Model Differences
SA10T (Teflon Lined Type): Adopts integrated PTFE lining with excellent self-lubricating ability and ultra-low friction. It allows dry operation without regular grease maintenance, suitable for clean, dry working environments and maintenance-free precision machinery.
SA10K (Open Lubrication Type): Standard open groove structure supports easy grease refilling and fast heat dissipation. After lubrication, it delivers stable wear resistance and consistent load capacity, ideal for long-cycle continuous operation and general light-to-medium industrial scenarios.
Material Introduction
Bearing Steel: Manufactured from high-carbon chromium bearing steel with professional heat treatment. It features high hardness, strong wear resistance and rigid structure, ensuring long service life for standard indoor industrial applications.
Stainless Steel: High-quality stainless steel provides excellent rust-proof, waterproof and anti-corrosion performance. It performs stably in humid, dusty and corrosive environments, perfect for outdoor equipment, medical devices, food-grade machinery and precision electronics.
Product Features
Standard female thread structure for easy installation and replacement. Reliable self-aligning capability corrects mounting errors. Smooth low-friction multi-angle swing movement. Dual structure and material options fit diverse working conditions. High precision and stable long-term operation.
Application Scenarios
SA10 spherical plain bearings are widely used in automation machinery, robotic arms, textile equipment, precision instruments and medium-load transmission mechanisms. SA10T fits clean dry maintenance-free scenarios; SA10K suits conventional lubricated environments, and stainless steel versions adapt to humid and corrosive working conditions.
