SI16 Spherical Plain Bearings

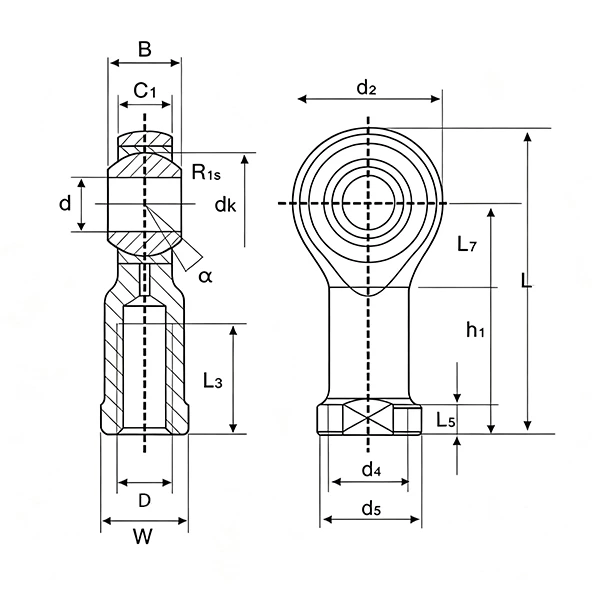

| SI16 Spherical Plain Bearings | |||
|---|---|---|---|
| Part Number | SI16T/K | L5 | 8 |
| d | 16 | d4 | 22 |
| D | M16*2 | d5 | 28 |
| W | 24 | dk | 28.575 |
| B | 21 | L3 | 24 |
| C1 | 15 | a°≈ | 15 |
| h | 64 | Dynamic Load Co(N) | 21600 |
| d2 | 40 | Static Load Cor(N) | 28500 |
| L | 84 | Weight(Kg) | 0.22 |

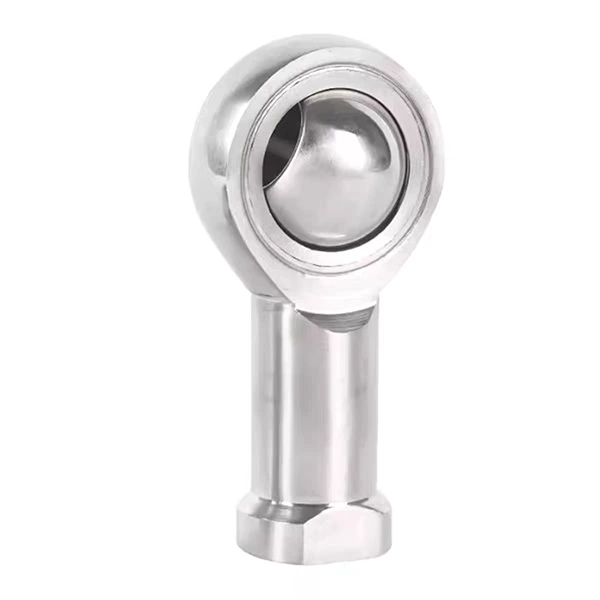

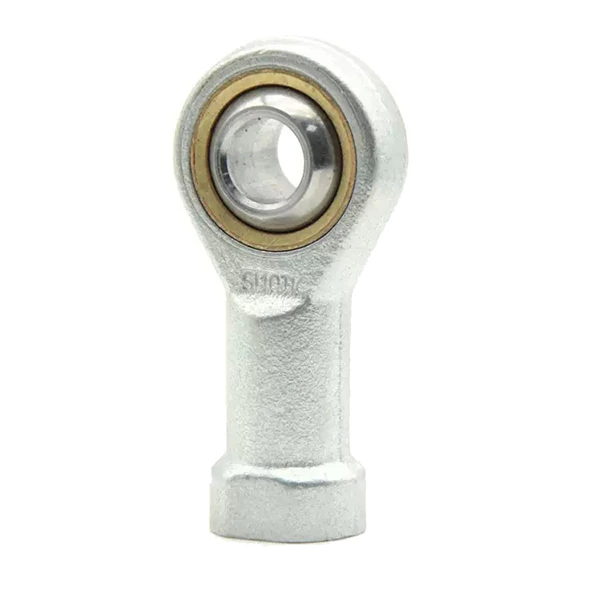

SI16 Spherical Plain Bearing | SI16T / SI16K Stainless And Steel Types
The SI16 spherical plain bearing is a heavy-duty rod end joint bearing commonly used in medium and heavy industrial mechanical systems. It enables flexible multi-directional oscillation and tilting movement, featuring outstanding self-aligning performance and stable low-friction operation. Available in SI16T and SI16K models with bearing steel and stainless steel options, this bearing offers reliable, cost-effective motion solutions for heavy-load automation and industrial equipment.
SI16T vs SI16K | Model Differences
SI16T (Teflon Lined Type): Designed with built-in PTFE liner for excellent self-lubrication and ultra-low friction. It supports dry operation without regular grease filling, suitable for clean, dry working environments and maintenance-free precision machinery.
SI16K (Open Lubrication Type): Standard open groove structure allows convenient grease refilling and efficient heat dissipation. With good wear resistance and stable heavy-load performance after lubrication, it is ideal for long-term continuous operation and general heavy-duty industrial scenarios.
Material Introduction
Bearing Steel: Made of high-carbon chromium bearing steel with professional heat treatment. It delivers high surface hardness, strong wear resistance and stable structural rigidity, extending service life for conventional indoor industrial equipment.
Stainless Steel: High-quality stainless steel provides superior rust-proof, waterproof and anti-corrosion properties. It operates stably in humid, dusty and corrosive environments, perfect for outdoor machinery, medical, food-grade and precision electronic equipment.
Product Features
Heavy-duty standard structure for easy installation and replacement. Excellent self-aligning capability to compensate for mounting errors. Smooth low-friction multi-angle swing movement. Dual structure and material options adapt to diverse working conditions. High precision and stable long-term operation.
Application Scenarios
SI16 spherical plain bearings are widely applied in heavy-duty automation machinery, industrial robotic arms, hydraulic equipment, textile machinery and heavy-load transmission mechanisms. SI16T fits clean dry maintenance-free scenarios; SI16K suits conventional lubricated environments, and stainless steel versions adapt to humid and corrosive working conditions.
