32001Taper Roller Bearings

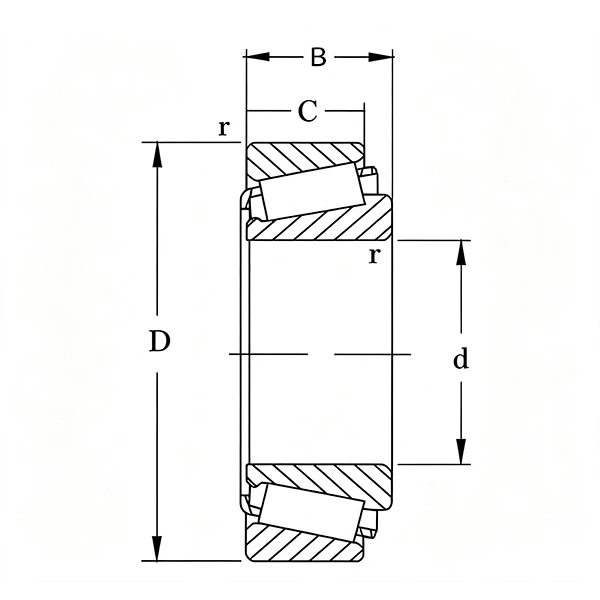

| 32001Taper Roller Bearings | |||
|---|---|---|---|
| Part Number | 32001 | Weight(Kg) | 0.030 |
| d | 12 | Dynamic Load Co(N) | 11200 |
| D1 | 28 | Static Load Cor(N) | 12400 |
| B | 10 | Grease Speed | 8500 |
| R | 0.3 | Oil Speed | 11000 |
32001 Tapered Roller Bearing | Material, Features And Industrial Applications
The 32001 is a miniature high-precision single-row tapered roller bearing with standard dimensions of 12×28×10mm. Featuring a tapered raceway and roller structure, this bearing is professionally designed to withstand combined radial and axial loads, with excellent anti-friction performance and stable rotational precision. It supports unidirectional axial force bearing and effective shaft positioning, delivering high rigidity and low-noise operation. Compact in size and high in precision, the 32001 bearing is widely adopted in small mechanical transmission systems, suitable for continuous light and medium-load cyclic operation in precision industrial equipment.
32001 Bearing Material Introduction
The entire 32001 bearing is manufactured from high-grade chrome alloy bearing steel, the mainstream material for premium industrial bearings. After integral high-temperature quenching and precise tempering treatment, the bearing inner ring, outer ring and tapered rollers achieve ultra-high surface hardness, outstanding wear resistance and structural stability. The optimized steel material effectively resists mechanical fatigue and surface abrasion during long-term high-frequency operation. Meanwhile, the precision stamped steel retainer features high toughness and anti-deformation performance, ensuring stable roller guidance and uniform operation clearance. Strict finish grinding processing eliminates internal burrs, greatly reducing friction coefficient and extending the overall service life of the bearing.
Core Product Advantages
The 32001 tapered roller bearing boasts unique structural and performance advantages compared with ordinary bearings. Its scientific tapered roller arrangement enables balanced bearing of radial and unidirectional axial loads, solving the positioning deviation problem of miniature transmission shafts. The standardized precision structure ensures low noise, high rotational stability and strong shock resistance. With compact overall volume and high assembly adaptability, it supports flexible installation in narrow mechanical spaces. In addition, the bearing features simple lubrication maintenance, strong versatility and cost-effective performance, fully meeting the long-term stable operation requirements of precision miniature mechanical systems.
Industrial Applications
32001 tapered roller bearings are widely used in precision light-load transmission fields. They are commonly applied in small automotive accessory parts, motorcycle transmission systems, precision instrument equipment, miniature reduction gearboxes, and small automated mechanical transmission components. Besides, this bearing is also suitable for household electrical machinery, testing equipment, light industrial machinery and other scenarios requiring precise shaft positioning and combined load bearing. It provides reliable, high-precision rotational support for various miniature mechanical transmission systems.
Product Summary: The 32001 tapered roller bearing integrates premium bearing steel material, stable structural performance and high precision advantages. With excellent combined load capacity, low-friction operation and strong versatility, it is a core precision component for miniature industrial machinery and light-load transmission equipment, delivering stable and durable operating performance for various precision mechanical systems.
