32002 Taper Roller Bearings

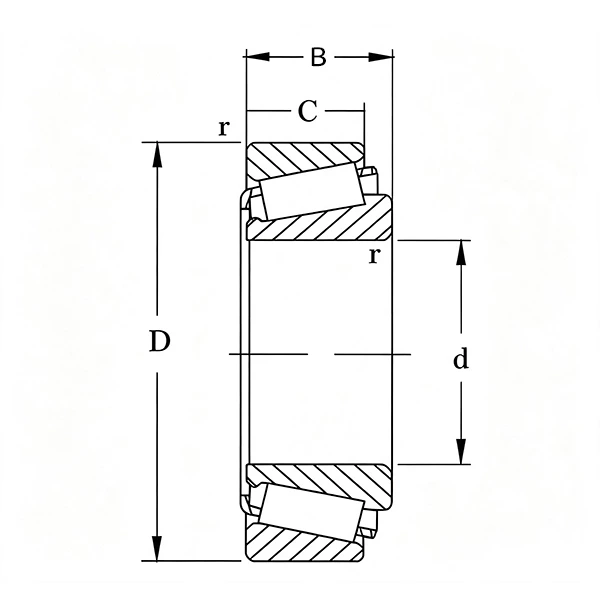

| 32002 Taper Roller Bearings | |||
|---|---|---|---|
| Part Number | 32002 | Weight(Kg) | 0.044 |
| d | 15 | Dynamic Load Co(N) | 27800 |
| D1 | 32 | Static Load Cor(N) | 29200 |
| B | 12 | Grease Speed | 14000 |
| R | 0.3 | Oil Speed | 19000 |
32002 Tapered Roller Bearing | Material, Features And Industrial Applications
The 32002 is a compact single-row tapered roller bearing with standard dimensions of 15×32×12mm. Designed to withstand combined radial and unidirectional axial loads, this precision tapered roller bearing delivers high rigidity, low friction rotation and excellent running stability. Its tapered raceway and roller structure optimize force distribution, effectively reducing operational wear and shaft deflection during cyclic load operation. Capable of compensating minor installation misalignment and resisting intermittent shock loads, the 32002 is a versatile core component widely used in light and medium-duty transmission machinery, meeting long-term continuous precision operation requirements.
32002 Bearing Material Introduction
The entire 32002 bearing is forged from high-quality high-carbon chrome bearing steel, the premium standard material for industrial rolling bearings. Through integral high-temperature quenching and precise tempering treatment, the inner ring, outer ring and tapered rollers achieve ultra-high surface hardness, outstanding wear resistance and stable structural toughness. The precision stamped high-tensile steel retainer features strong anti-deformation performance and fatigue resistance, ensuring uniform roller guidance and consistent internal clearance. Ultra-precision finish grinding eliminates surface burrs, lowers friction coefficient and effectively extends the bearing’s service life under high-frequency continuous operation.
Core Product Features
The 32002 tapered roller bearing boasts reliable comprehensive mechanical performance for precision transmission systems. Its optimized tapered structure perfectly bears composite radial and axial loads, solving positioning deviation and unstable rotation issues of miniature transmission shafts. The compact integrated structure features high assembly adaptability, suitable for narrow installation spaces of precision machinery. With low noise, high rotational accuracy and excellent shock resistance, it supports stable medium-speed cyclic operation. Additionally, the bearing offers simple lubrication maintenance, strong versatility and superior cost performance, ideal for mass assembly and long-term industrial application.
Industrial Applications
32002 tapered roller bearings are widely applied in precision light and medium-load transmission fields. They are commonly used for automotive accessory components, motorcycle transmission systems, small reduction gearboxes and precision mechanical transmission equipment. This bearing also fits household electrical machinery, automated miniature equipment, testing instruments and light industrial machinery. It provides stable shaft positioning and reliable composite load support, ensuring high-precision and low-friction operation of various miniature transmission systems.
Product Summary: The 32002 bearing adopts premium chrome bearing steel material, integrating high precision, strong wear resistance and stable load capacity. With excellent composite radial-axial bearing performance and versatile adaptability, it serves as an essential durable component for precision miniature industrial machinery and light-duty transmission equipment.
