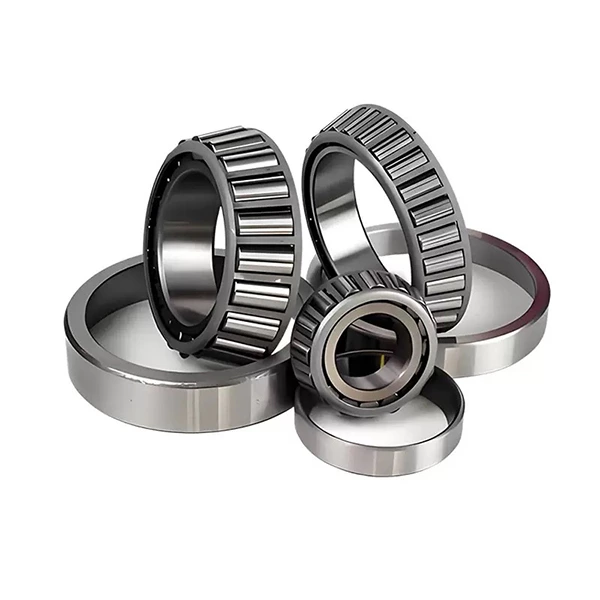

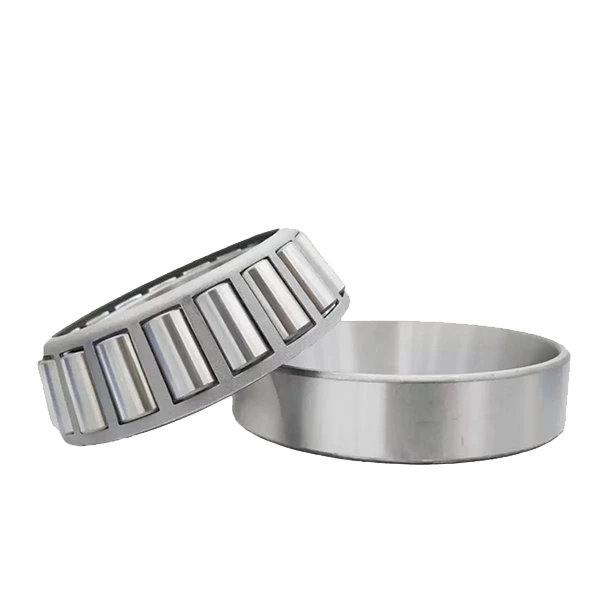

32007 Taper Roller Bearings
| 32007 Taper Roller Bearings | |||
|---|---|---|---|

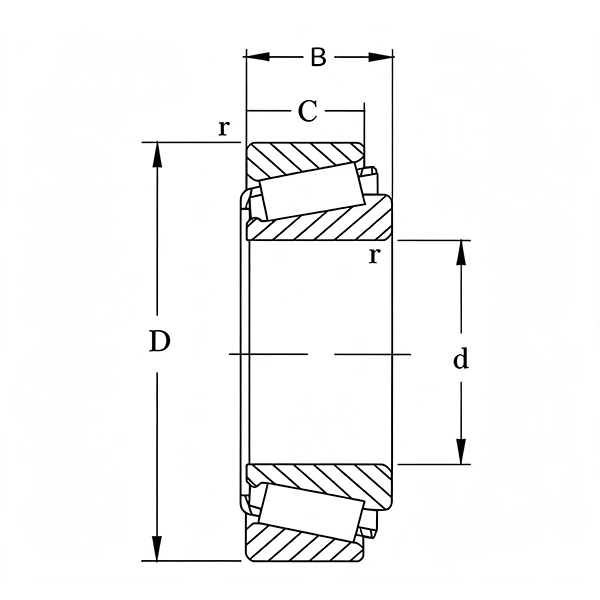

| Part Number | 32007 | Weight(Kg) | 0.22 |
| d | 35 | Dynamic Load Co(N) | 50200 |
| D1 | 62 | Static Load Cor(N) | 62000 |
| B | 18 | Grease Speed | 8500 |
| R | 1 | Oil Speed | 10500 |
32007 Angular Contact Ball Bearing | Double Row Precision Bearing
The 32007 angular contact ball bearing is a robust double-row precision bearing built for combined radial and axial loads. Featuring high rigidity, enhanced load capacity, low friction and quiet stable operation, it offers superior stability and service life compared with single-row bearings. Offered in GCr15 bearing steel and stainless steel variants, the 32007 bearing reliably performs in standard dry, humid and mildly corrosive industrial environments.
Product Material Introduction
Bearing Steel (GCr15): GCr15 bearing steel is the standard material for 32007 series bearings. With professional heat treatment, it achieves high hardness, excellent wear resistance and strong fatigue resistance. It sustains stable high-precision operation in conventional dry industrial conditions, delivering outstanding cost performance for general mechanical transmission applications.
Stainless Steel: Stainless steel 32007 bearings provide excellent rust-proof, anti-oxidation and weak corrosion resistance. They effectively withstand moisture, humidity and minor industrial contamination, avoiding precision degradation and corrosion failure. Ideal for sanitary, damp and lightly corrosive working scenarios with strict hygiene requirements.
Core Product Features
Reinforced double-row structure improves overall rigidity and composite load capacity. Supports bidirectional radial and axial combined loads. Ensures smooth, low-noise and high-precision rotational performance. Dual material options adapt to conventional and anti-corrosion working environments. Compact integrated design allows easy installation and broad equipment compatibility.
Application Scenarios
32007 double-row angular contact ball bearings are widely used in medium heavy-duty precision motors, machine tool spindles, industrial pumps, fans, compressors and automation machinery. Standard bearing steel models fit conventional industrial equipment; stainless steel versions are suitable for food machinery, medical equipment and high-humidity sanitary industrial systems.
