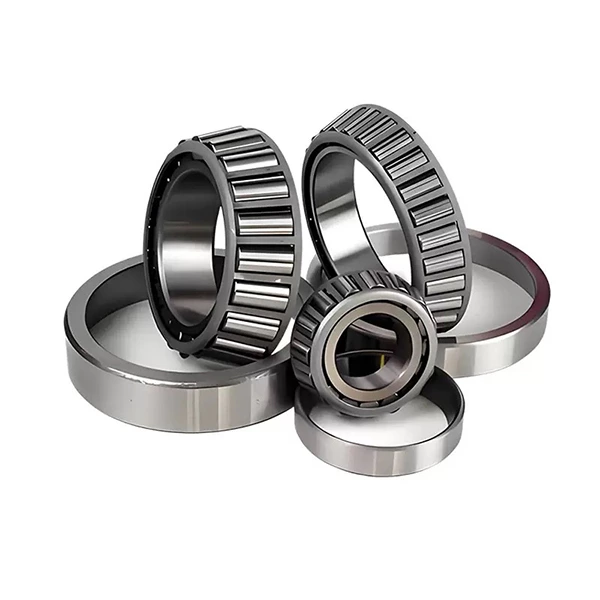

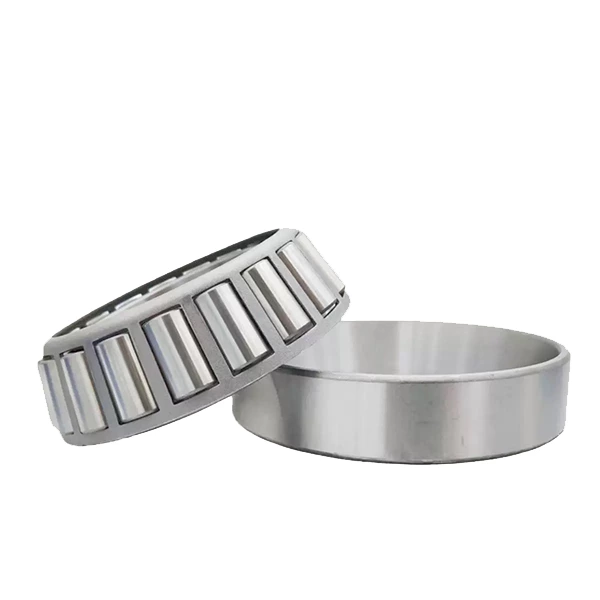

32907 Taper Roller Bearings

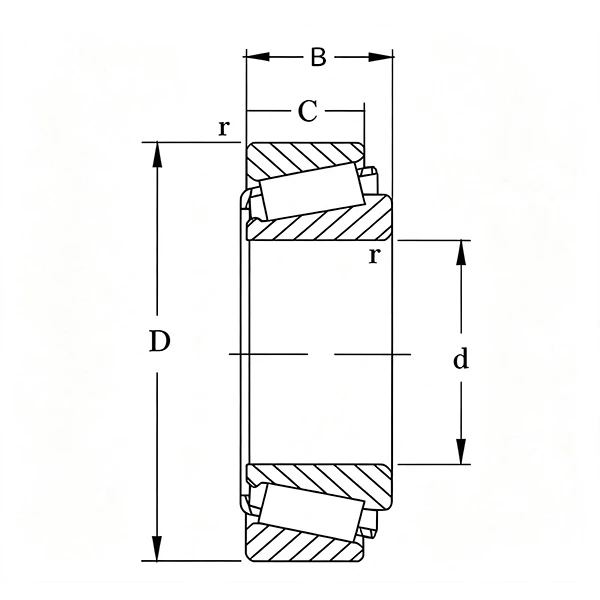

| 32907 Taper Roller Bearings | |||
|---|---|---|---|
| Part Number | 32907 | Weight(Kg) | 0.6 |
| d | 35 | Dynamic Load Co(N) | 31500 |
| D1 | 55 | Static Load Cor(N) | 40200 |
| B | 14 | Grease Speed | 7500 |
| R | 0.6 | Oil Speed | 9500 |
32907 Angular Contact Ball Bearing | Double Row Thin Section Bearing
The 32907 angular contact ball bearing is a high-rigidity double-row thin-section precision bearing, designed to support combined radial and bidirectional axial loads. With an ultra-slim lightweight structure, low friction, stable high-speed performance and quiet operation, it maximizes space utilization while maintaining reliable load capacity. Available in GCr15 bearing steel and stainless steel options, the 32907 bearing delivers steady precision performance for standard industrial, humid and mildly corrosive working environments.
Material Introduction
Bearing Steel (GCr15): GCr15 bearing steel is the standard material for 32907 bearings. After professional heat treatment, it possesses high hardness, excellent wear resistance and strong fatigue resistance. It ensures long-term stable high-precision rotation under conventional dry conditions, providing high cost performance for all kinds of precision mechanical equipment.
Stainless Steel: Stainless steel 32907 bearings offer superior rust-proof, anti-oxidation and weak corrosion resistance. They effectively resist moisture and minor industrial contamination, avoiding precision attenuation and premature failure, making them suitable for damp, sanitary and clean industrial scenarios.
Product Features
Ultra-thin double-row structure greatly saves installation space. Stably bears bidirectional radial and axial composite loads. Supports smooth, low-noise and high-speed precision operation. Dual material grades meet conventional and anti-corrosion application needs. Slim structure with high rigidity and wide equipment compatibility.
Application Scenarios
32907 double-row thin-section angular contact ball bearings are widely used in precision automation equipment, medium and small precision motors, instrumentation machinery, industrial fans and light-duty transmission systems. Standard GCr15 bearing steel models apply to conventional industrial machinery; stainless steel versions are ideal for food machinery, medical equipment and high-humidity working environments.
