UCF203 Pillow Block Bearings

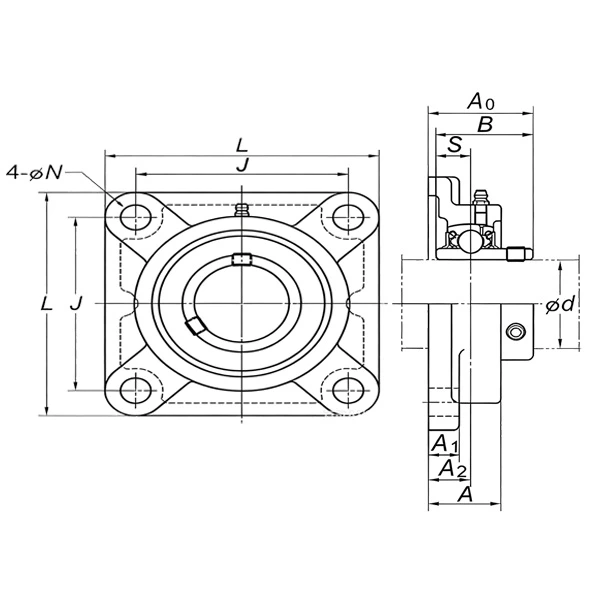

| UCF203 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCF203 | N | 12 |
| d | 17 | Install the bolt | M10 |
| B | 31 | Dynamic Load Co(N | 12800 |
| L | 76 | Static Load Cor(N) | 6650 |
| J | 54 | Weight(Kg) | 0.61 |
| A2 | 15 | ||

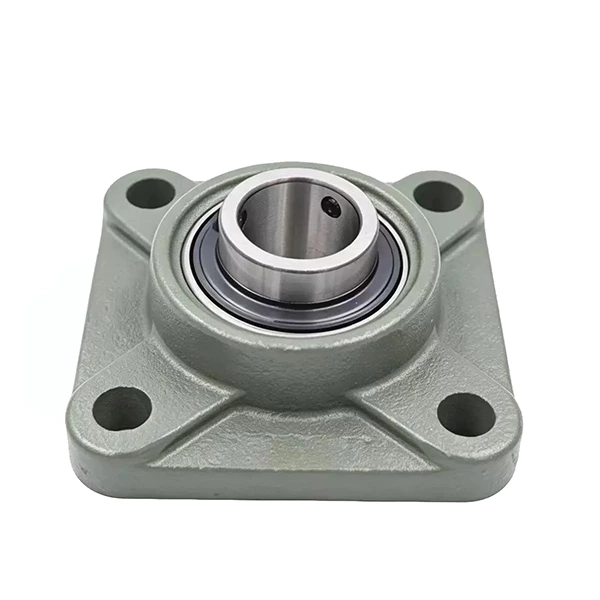

UCF203 Flange Bearing | 17mm Bore Square Flange Mounted Bearing
The UCF203 square flange bearing is a standard integrated mounted bearing unit with a 17mm bore. It combines a precision self-aligning UC bearing insert and durable square cast iron housing with dual set screw locking design. Supporting flat mounting, this bearing offers stable low-noise rotation, simple installation and reliable durability for light and medium-duty industrial power transmission.
Product Material
Bearing Core: Made of high-quality GCr15 bearing steel with professional heat treatment. It features high hardness, superior wear resistance and stable structural performance for long-term continuous operation.
Bearing Housing: Adopts high-strength cast iron construction. It delivers excellent structural stability and shock resistance, fitting various standard flat mounting equipment.
Core Features
Square flange structure enables stable flat installation and saves mounting space. Built-in self-aligning design compensates for shaft misalignment and mounting deviation. Dual set screw fixation prevents shaft loosening and slipping during operation. Integrated one-piece design simplifies installation and replacement. Effective dust-proof sealing lowers daily maintenance frequency.
Application Scenarios
UCF203 square flange bearings are widely used in light-duty conveyor systems, textile machinery, packaging equipment, food processing machinery, automated auxiliary devices and general light industrial production lines. Ideal for light to medium-load, low-vibration and continuous stable rotation working conditions.
