UCF204 Pillow Block Bearings

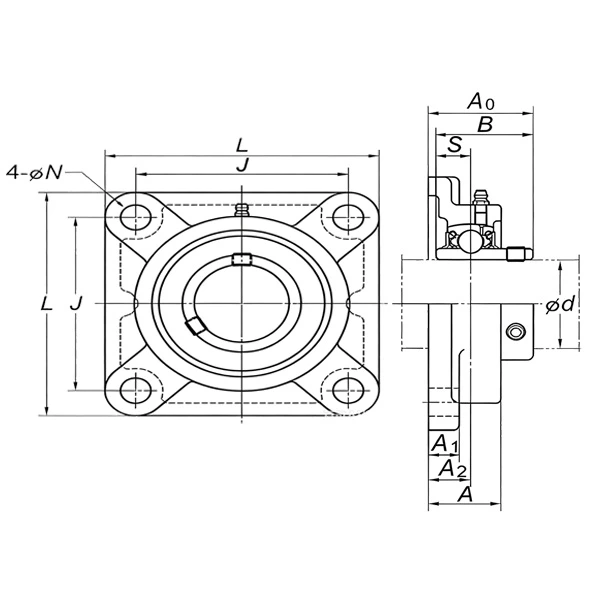

| UCF204 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCF204 | N | 12 |
| d | 20 | Install the bolt | M10 |
| B | 31 | Dynamic Load Co(N | 12800 |
| L | 86 | Static Load Cor(N) | 6650 |
| J | 64 | Weight(Kg) | 0.61 |
| A2 | 15 | ||

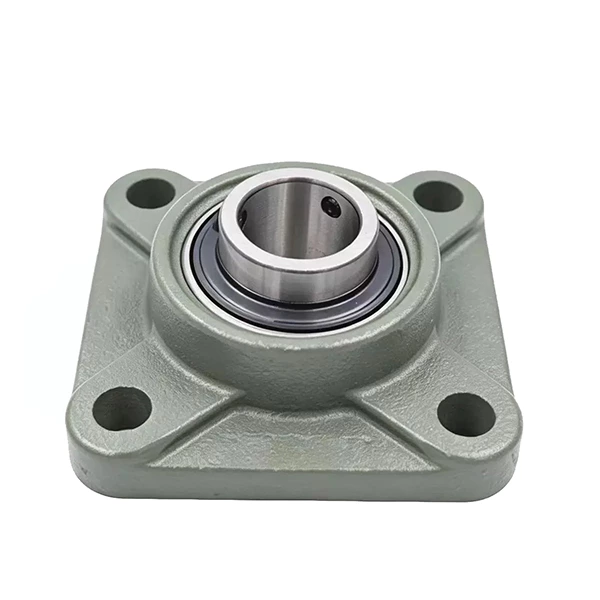

UCF204 Flange Bearing | 20mm Bore Square Flange Mounted Bearing
The UCF204 square flange bearing is a standard integrated mounted bearing unit with a 20mm bore. It consists of a precision self-aligning UC bearing insert and sturdy square cast iron housing with dual set screw locking. Designed for flat surface mounting, this bearing provides stable low-noise operation, easy installation and long service life for light and medium-duty industrial power transmission systems.
Product Material
Bearing Core: Manufactured from high-quality GCr15 bearing steel with professional heat treatment. It delivers high hardness, excellent wear resistance and stable performance for long-term continuous industrial operation.
Bearing Housing: Constructed with high-strength cast iron. It offers great structural stability and shock resistance, suitable for various standard flat mounting applications.
Core Features
Square flange design ensures firm flat mounting and saves installation space. Built-in self-aligning structure compensates for shaft misalignment and mounting deviation. Dual set screw fixation effectively prevents shaft slipping and loosening. Integrated all-in-one structure simplifies installation and replacement. Reliable dust-proof sealing reduces daily maintenance frequency.
Application Scenarios
UCF204 square flange bearings are widely applied in light-duty conveyor systems, textile machinery, packaging equipment, food processing machinery, automated auxiliary equipment and general industrial production lines. Perfect for light to medium-load, low-vibration and continuous stable rotation working conditions.
