UCFB201 Pillow Block Bearings

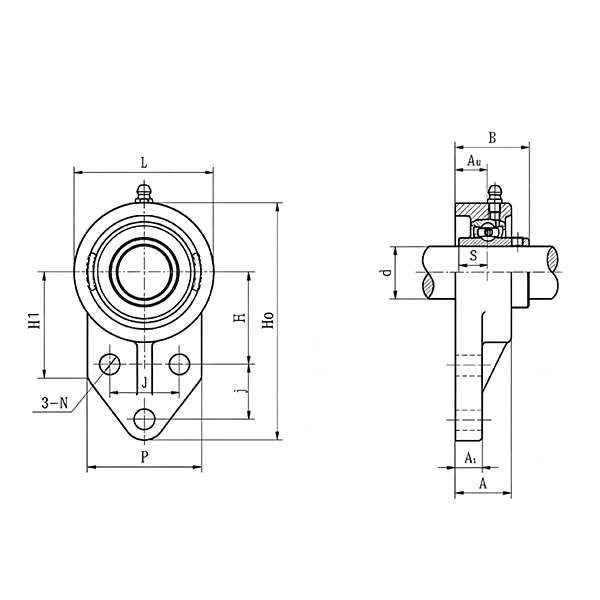

| UCFB201 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFB201 | H | 40 |
| d | 12 | j | 27 |
| H0 | 104 | J | 30 |
| L | 55 | B | 29.9 |
| H1 | 50 | S | 11.5 |
| P | 49 | Install the bolt | M8 |
| A | 23.5 | Dynamic Load Co(N) | 12800 |
| N | 10 | Static Load Cor(N) | 6650 |
| A1 | 10 | Weight(Kg) | 0.42 |
UCFB201 Flange Bearing | 12mm Bore Square Flange Mounted Bearing
The UCFB201 square flange bearing is a compact 4-bolt mounted bearing unit with a 12mm bore. Equipped with a self-aligning UC insert and dual set screw locking structure, this UCFB201 bearing delivers stable low-noise rotation and low maintenance, ideal for light-duty industrial transmission and automation systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It delivers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

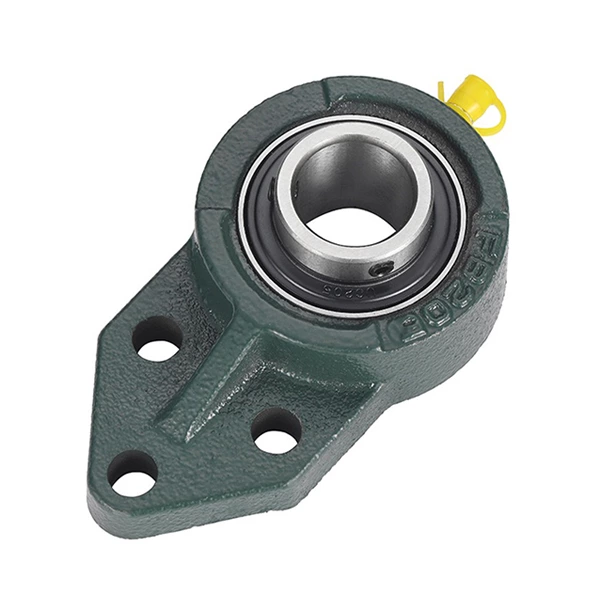

Cast Iron Housing: Standard HT200 grey cast iron housing features high rigidity and strong shock resistance. Cost-effective and durable, it suits dry, indoor and conventional standard industrial working environments.

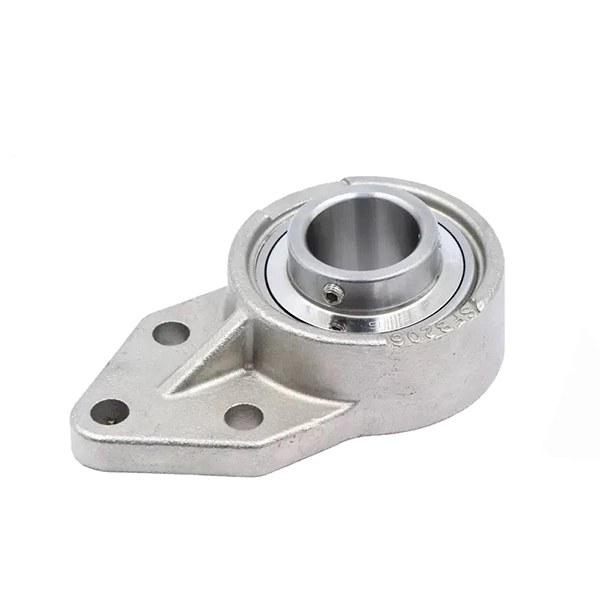

Stainless Steel Housing: Premium stainless steel housing with superior rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary working conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
4-bolt square flange structure enables stable installation and even force distribution. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during operation. Compact integrated design supports fast installation and replacement. Reliable sealing blocks dust and moisture to extend bearing service life.
Application Scenarios
UCFB201 square flange bearings are widely applied in small conveyor systems, textile machinery, packaging equipment and automated auxiliary equipment. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
