UCFB202 Pillow Block Bearings

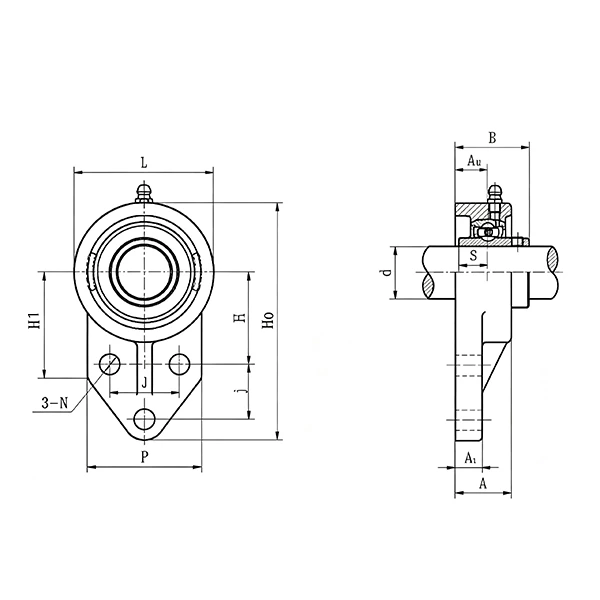

| UCFB202 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFB202 | H | 40 |
| d | 15 | j | 27 |
| H0 | 104 | J | 30 |
| L | 55 | B | 29.9 |
| H1 | 50 | S | 11.5 |
| P | 49 | Install the bolt | M8 |
| A | 23.5 | Dynamic Load Co(N) | 12800 |
| N | 10 | Static Load Cor(N) | 6650 |
| A1 | 10 | Weight(Kg) | 0.41 |
UCFB202 Flange Bearing | 15mm Bore Square Flange Mounted Bearing
The UCFB202 square flange bearing is a compact 4-bolt mounted bearing unit with a 15mm bore. Adopting a self-aligning UC insert and dual set screw locking structure, this UCFB202 bearing features stable low-noise operation and low maintenance, widely used for light-duty industrial transmission and automation equipment.
Product Material And amp; Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It offers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

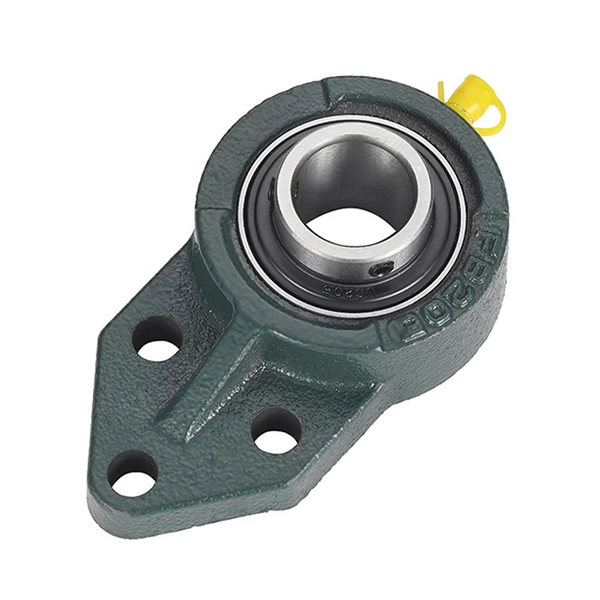

Cast Iron Housing: Standard HT200 grey cast iron housing provides high rigidity and strong shock resistance. Cost-effective and sturdy, it is suitable for dry, indoor and conventional industrial working environments.

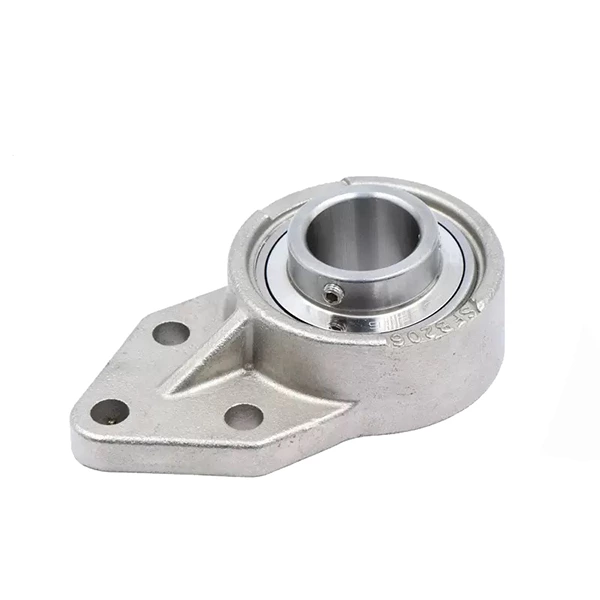

Stainless Steel Housing: High-grade stainless steel housing delivers excellent rust-proof, anti-corrosion and moisture-resistant performance. It works steadily in humid, wet and sanitary conditions, ideal for food machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Standard 4-bolt square flange design ensures firm mounting and uniform force distribution. Built-in self-aligning function compensates for minor shaft misalignment and installation deviation. Dual set screw locking prevents shaft slipping and loosening during continuous operation. Compact lightweight structure supports quick installation and replacement. Effective sealing resists dust and water intrusion to extend bearing service life.
Application Scenarios
UCFB202 square flange bearings are commonly applied in small conveyor systems, textile machinery, packaging devices and automated auxiliary machinery. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimized for sanitary, humid and corrosive industrial environments.
