UCFB203 Pillow Block Bearings

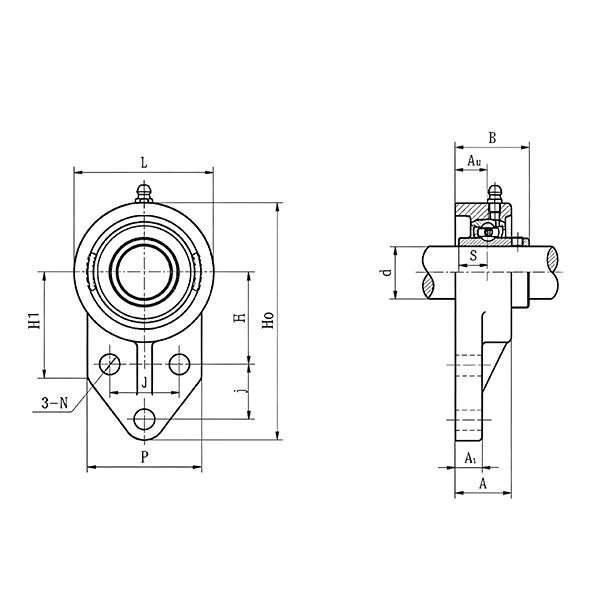

| UCFB203 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFB203 | H | 40 |
| d | 17 | j | 27 |
| H0 | 104 | J | 30 |
| L | 55 | B | 29.9 |
| H1 | 50 | S | 11.5 |
| P | 49 | Install the bolt | M8 |
| A | 23.5 | Dynamic Load Co(N) | 12800 |
| N | 10 | Static Load Cor(N) | 6650 |
| A1 | 10 | Weight(Kg) | 0.40 |
UCFB203 Flange Bearing | 17mm Bore Square Flange Mounted Bearing
The UCFB203 square flange bearing is a practical 4-bolt mounted bearing unit with a 17mm bore. Designed with a self-aligning UC insert and dual set screw locking system, this UCFB203 bearing delivers stable low-noise rotation and minimal maintenance, widely utilized in light-duty industrial transmission and automation systems.
Product Material And Housing Difference
Bearing Core: Constructed from premium GCr15 bearing steel with professional heat treatment. It features high hardness, superior wear resistance and stable mechanical performance for long-term continuous operation.

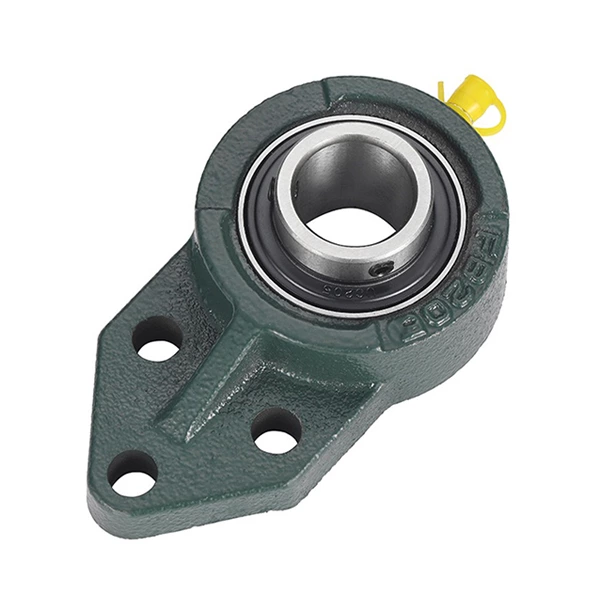

Cast Iron Housing: Standard HT200 grey cast iron housing boasts high structural rigidity and strong shock resistance. Cost-effective and durable, it is ideal for dry, indoor and conventional standard industrial environments.

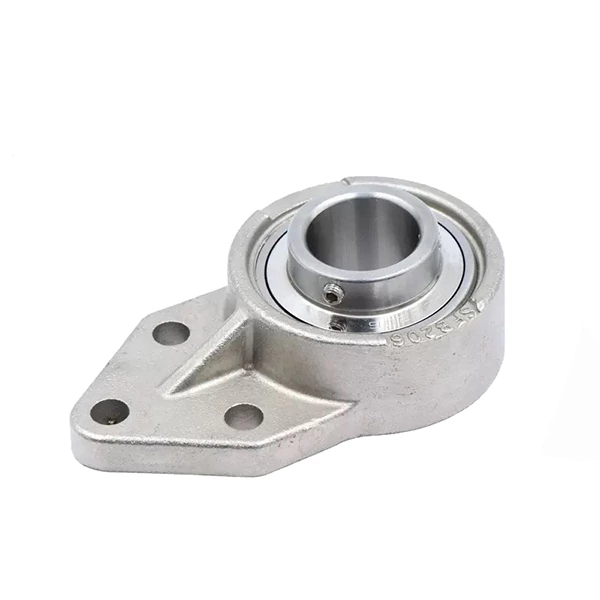

Stainless Steel Housing: High-quality stainless steel housing provides outstanding rust-proof, anti-corrosion and moisture-resistant capabilities. It performs reliably in humid, wet and sanitary working scenarios, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial applications.
Core Features
4-bolt square flange structure enables solid installation and even force distribution. Built-in self-aligning design offsets minor shaft misalignment and mounting errors. Dual set screw locking effectively avoids shaft slipping and loosening during operation. Compact integrated design allows fast installation and replacement. Reliable sealing structure blocks dust and moisture to prolong bearing service life.
Application Scenarios
UCFB203 square flange bearings are extensively used in conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing adapts to regular dry indoor working conditions, while stainless steel housing is the optimal choice for high-sanitary, humid and corrosive industrial environments.
