UCFB204 Pillow Block Bearings

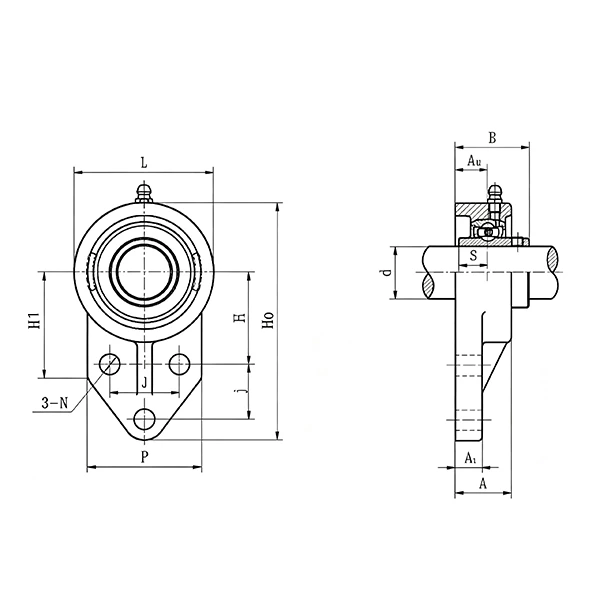

| UCFB204 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFB204 | H | 42 |
| d | 20 | j | 27 |
| H0 | 110 | J | 32 |
| L | 62 | B | 33.3 |
| H1 | 52 | S | 12.7 |
| P | 52 | Install the bolt | M8 |
| A | 25.5 | Dynamic Load Co(N) | 12800 |
| N | 10 | Static Load Cor(N) | 6650 |
| A1 | 13 | Weight(Kg) | 0.54 |
UCFB204 Flange Bearing | 20mm Bore Square Flange Mounted Bearing
The UCFB204 square flange bearing is a standard 4-bolt mounted bearing unit with a 20mm bore. It adopts a self-aligning UC insert and dual set screw locking structure, offering stable low-noise operation and low-maintenance performance for light and medium-duty industrial transmission and automation systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It features high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

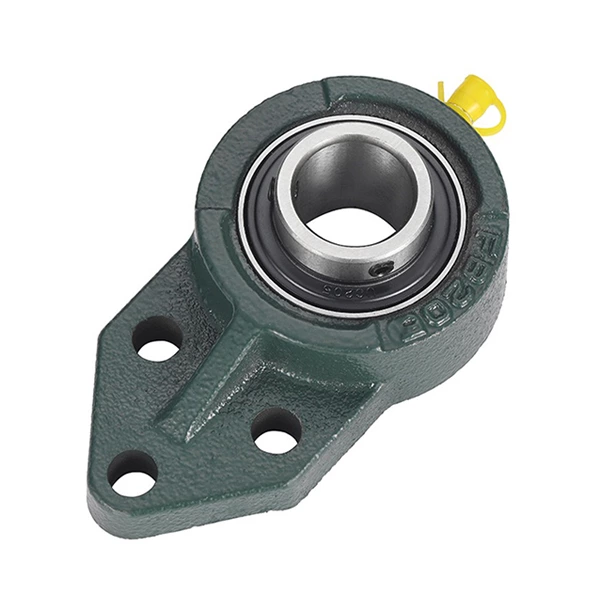

Cast Iron Housing: HT200 grey cast iron housing provides high rigidity and strong shock resistance. Cost-effective and robust, it is suitable for dry, indoor and conventional industrial working environments.

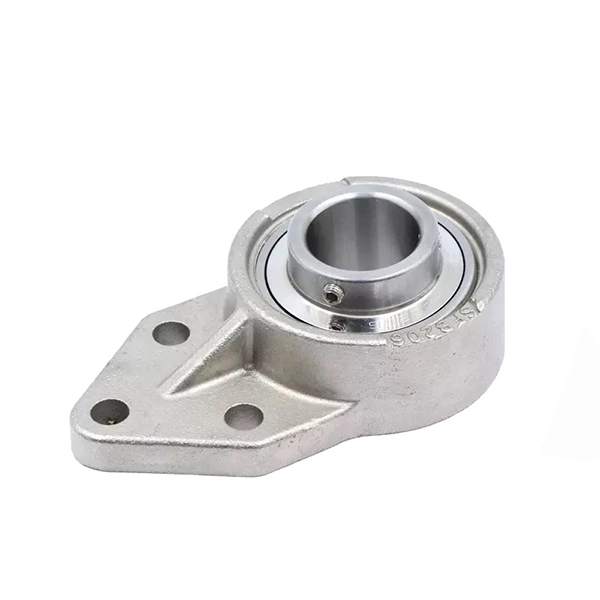

Stainless Steel Housing: Premium stainless steel housing delivers excellent rust-proof, anti-corrosion and moisture-resistant performance. It works steadily in humid, wet and sanitary conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
4-bolt square flange structure ensures stable installation and uniform force distribution. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking prevents shaft slipping and loosening during continuous operation. Compact integrated design supports quick installation and replacement. Reliable sealing blocks dust and moisture to extend bearing service life.
Application Scenarios
UCFB204 square flange bearings are widely applied in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
