UCFB205 Pillow Block Bearings
| UCFB205 Pillow Block Bearings | |||
|---|---|---|---|

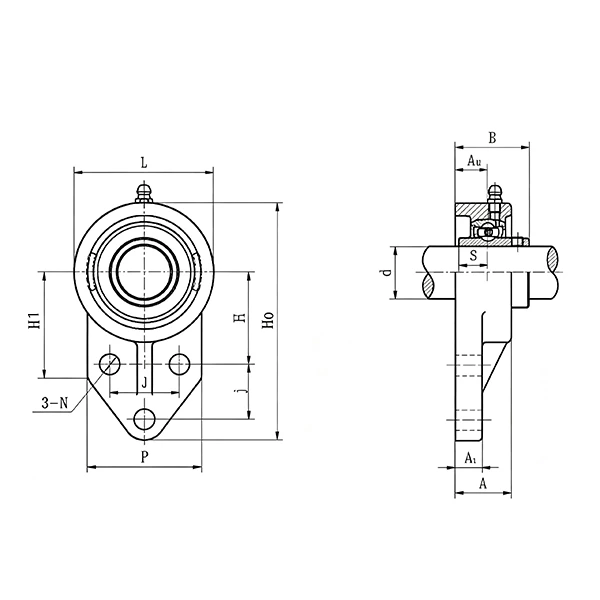

| Part Number | UCFB205 | H | 45 |
| d | 25 | j | 27 |
| H0 | 116 | J | 34 |
| L | 68 | B | 35.8 |
| H1 | 52 | S | 14.3 |
| P | 56 | Install the bolt | M8 |
| A | 27 | Dynamic Load Co(N) | 14000 |
| N | 10 | Static Load Cor(N) | 7800 |
| A1 | 13 | Weight(Kg) | 0.79 |
UCFB205 Flange Bearing | 25mm Bore Square Flange Mounted Bearing
The UCFB205 square flange bearing is a standard 4-bolt mounted bearing unit with a 25mm bore. Built with a self-aligning UC insert and dual set screw locking structure, this UCFB205 bearing ensures stable, low-noise operation and low maintenance, ideal for light and medium-duty industrial transmission and automation systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It offers high hardness, great wear resistance and stable mechanical performance for long-term continuous operation.

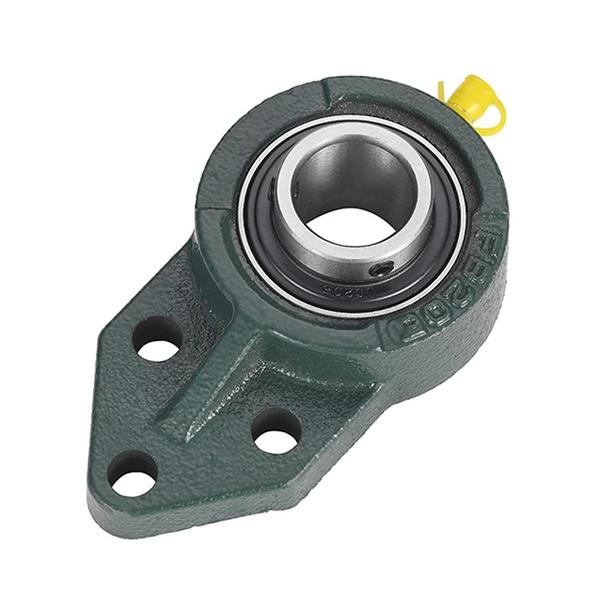

Cast Iron Housing: HT200 grey cast iron housing features high rigidity and strong shock resistance. Cost-effective and durable, it works well in dry, indoor and ordinary industrial environments.

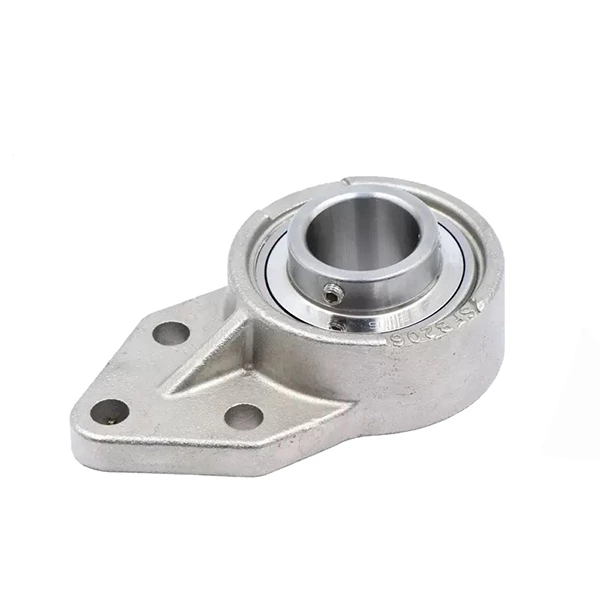

Stainless Steel Housing: Premium stainless steel housing provides superior rust-proof, anti-corrosion and moisture-resistant properties. It is suitable for humid, wet and sanitary working conditions, such as food machinery, outdoor equipment and mildly corrosive industrial scenes.
Core Features
4-bolt square flange design guarantees stable installation and even force distribution. Built-in self-aligning function compensates for minor shaft misalignment and mounting errors. Dual set screw locking avoids shaft slipping and loosening during operation. Compact integrated structure enables fast installation and replacement. Effective sealing prevents dust and moisture ingress to extend bearing service life.
Application Scenarios
UCFB205 square flange bearings are widely used in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing is perfect for standard dry indoor environments, while stainless steel housing suits sanitary, humid and corrosive industrial working conditions.
