UCFB207 Pillow Block Bearings

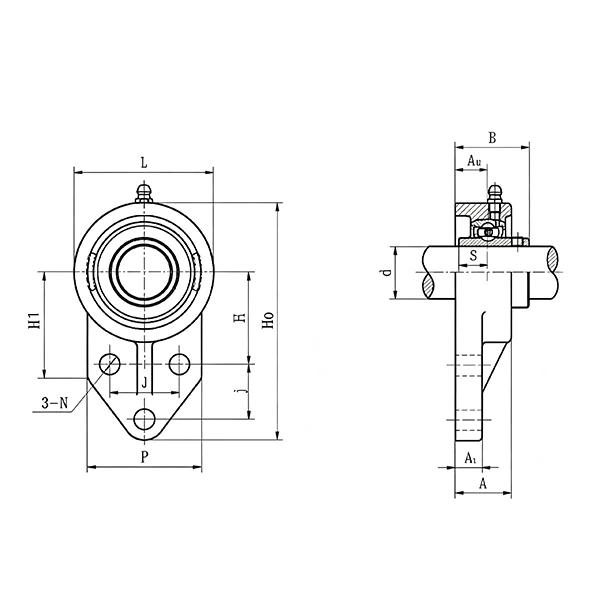

| UCFB207 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFB207 | H | 55 |
| d | 35 | j | 32 |
| H0 | 144 | J | 46 |
| L | 90 | B | 44 |
| H1 | 62 | S | 17.5 |
| P | 70 | Install the bolt | M8 |
| A | 34 | Dynamic Load Co(N) | 25500 |
| N | 10 | Static Load Cor(N) | 15300 |
| A1 | 15 | Weight(Kg) | 1.29 |
UCFB207 Flange Bearing | 35mm Bore Square Flange Mounted Bearing
The UCFB207 square flange bearing is a standard 4-bolt mounted bearing unit with a 35mm bore. Built with a self-aligning UC insert and dual set screw locking structure, this UCFB207 bearing delivers stable low-noise operation and low maintenance, suitable for light and medium-duty industrial transmission and automation systems.
Product Material And amp; Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It offers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

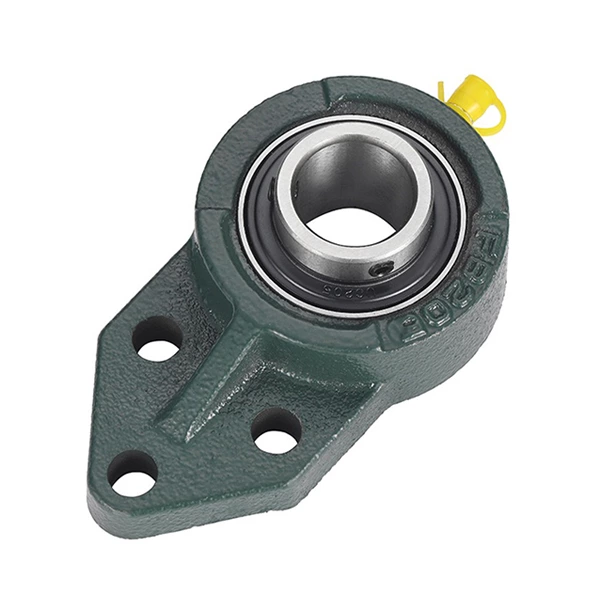

Cast Iron Housing: HT200 grey cast iron housing features high rigidity and strong shock resistance. Cost-effective and durable, it works well in dry, indoor and conventional standard industrial environments.

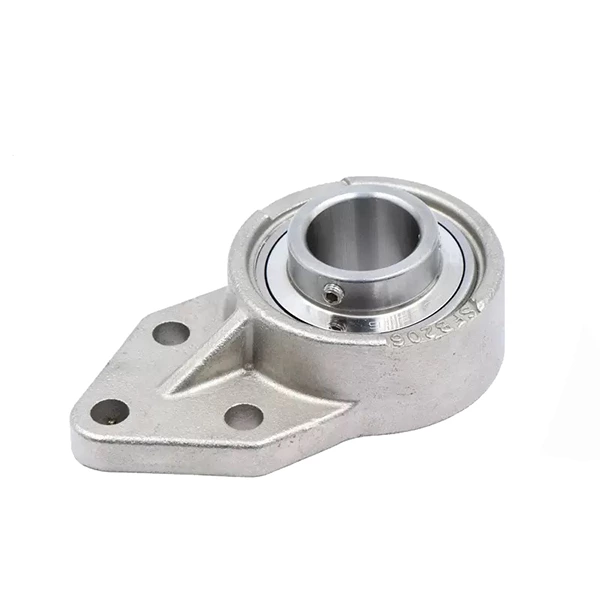

Stainless Steel Housing: Premium stainless steel housing provides superior rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
4-bolt square flange design guarantees stable installation and even force distribution. Built-in self-aligning function compensates for minor shaft misalignment and mounting errors. Dual set screw locking avoids shaft slipping and loosening during continuous operation. Compact integrated structure enables fast installation and replacement. Effective sealing prevents dust and moisture ingress to extend bearing service life.
Application Scenarios
UCFB207 square flange bearings are widely applied in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
