UCFC203 Pillow Block Bearings

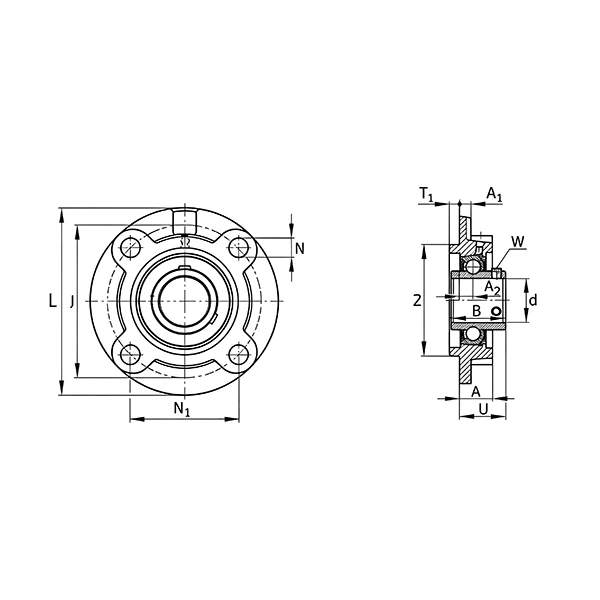

| UCFC203 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFC203 | N | 12 |
| d | 17 | N1 | 55.1 |
| B | 31 | Install the bolt | M10 |
| L | 100 | Dynamic Load Co(N) | 12800 |
| Z | 62 | Static Load Cor(N) | 6650 |
| A2 | 10 | Weight(Kg) | 0.7 |
UCFC203 Flange Bearing | 17mm Bore Round Flange Mounted Bearing
The UCFC203 round flange bearing is a practical 4-bolt mounted bearing unit with a 17mm bore. Adopting a self-aligning UC insert and dual set screw locking structure, this UCFC203 bearing features stable low-noise rotation and zero daily maintenance, widely applied in light and medium-duty industrial transmission and automation systems.
Product Material And Housing Difference
Bearing Core: Manufactured from high-quality GCr15 bearing steel with professional heat treatment. It maintains high hardness, excellent wear resistance and stable operation performance for long-term continuous mechanical work.

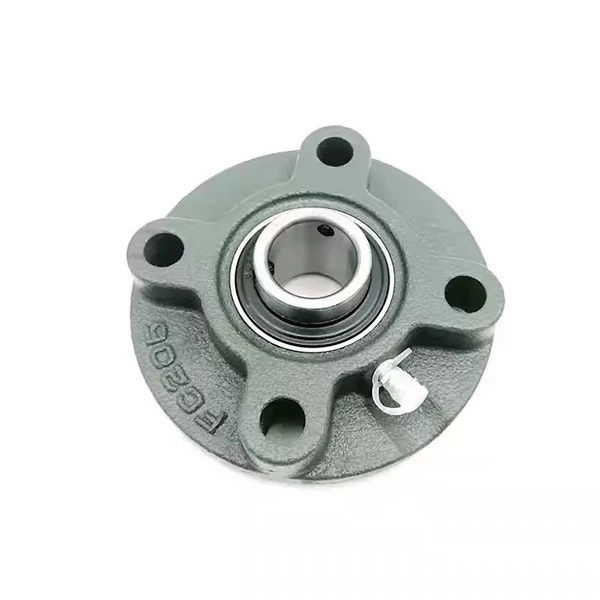

Cast Iron Housing: Standard HT200 grey cast iron housing owns high structural rigidity and shock resistance. With cost-effective and durable advantages, it is suitable for dry, indoor and conventional industrial working environments.

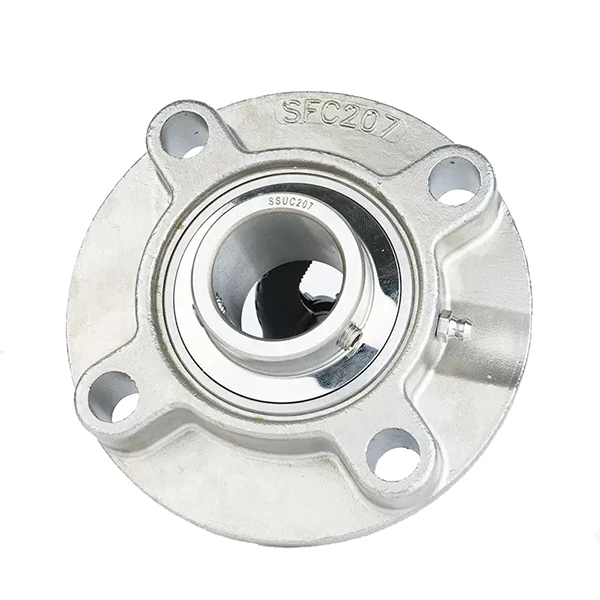

Stainless Steel Housing: High-grade stainless steel housing comes with excellent rust-proof, anti-corrosion and moisture-resistant capabilities. It adapts to humid, wet and sanitary working scenarios, ideal for food machinery, outdoor equipment and mildly corrosive industrial environments.
Core Features
Standard 4-bolt round flange design ensures firm installation and uniform force distribution. Built-in self-aligning function offsets minor shaft misalignment and mounting errors. Dual set screw locking avoids shaft slipping and loosening during high-speed operation. Compact structure allows fast installation and replacement. Optimized sealing structure effectively resists dust and water intrusion to prolong bearing service life.
Application Scenarios
UCFC203 flange bearings are extensively used in conveyor systems, textile machinery, packaging equipment and automated production auxiliary devices. Cast iron housing matches ordinary dry indoor working conditions, while stainless steel housing is the best choice for sanitary, humid and corrosive industrial scenarios.
