UCFC209 Pillow Block Bearings

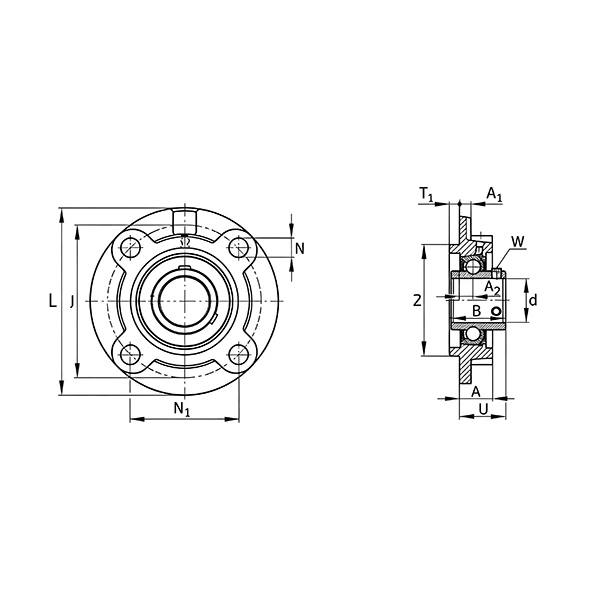

| UCFC209 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFC209 | N | 16 |
| d | 45 | N1 | 93.3 |
| B | 49.2 | Install the bolt | M14 |
| L | 160 | Dynamic Load Co(N) | 34100 |
| Z | 105 | Static Load Cor(N) | 21300 |
| A2 | 10 | Weight(Kg) | 2.7 |
UCFC209 Flange Bearing | 45mm Bore Round Flange Mounted Bearing
The UCFC209 round flange bearing is a standard 4-bolt mounted bearing unit with a 45mm bore. Built with a self-aligning UC insert and dual set screw locking structure, this UCFC209 bearing provides stable low-noise operation and low maintenance, suited for medium-duty industrial transmission and automation machinery.
Product Material And Housing Difference
Bearing Core: Manufactured from high-quality GCr15 bearing steel with precision heat treatment. It offers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

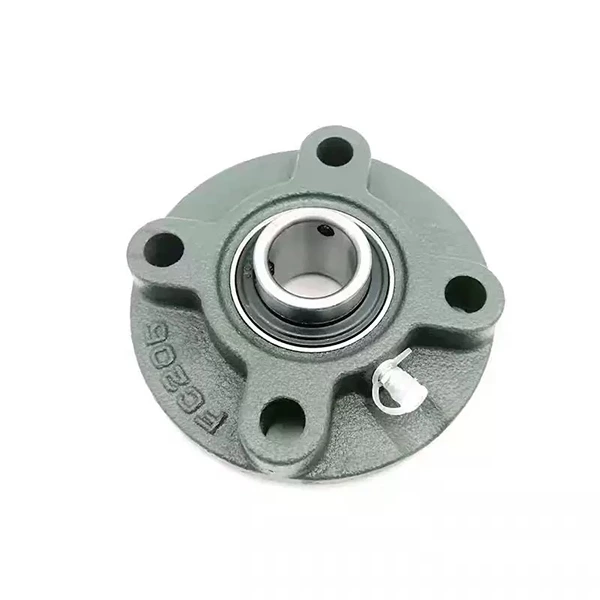

Cast Iron Housing: HT200 grey cast iron housing features high rigidity and strong shock resistance. Cost-effective and durable, it is designed for dry, indoor and conventional standard industrial environments.

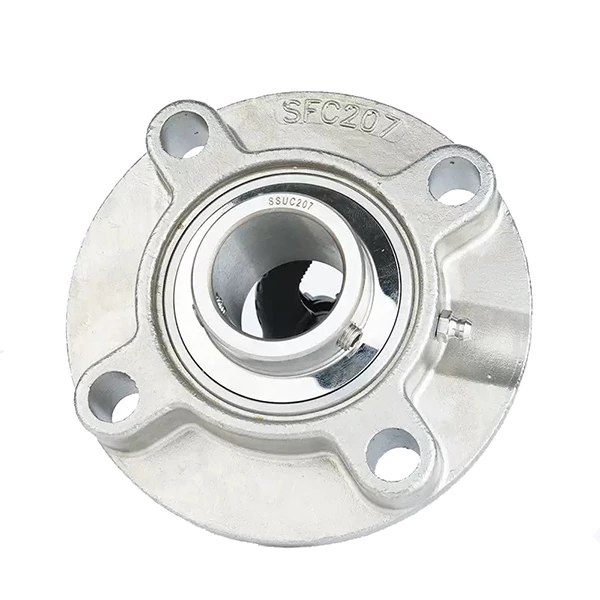

Stainless Steel Housing: Stainless steel housing delivers outstanding rust-proof, anti-corrosion and moisture-resistant performance. It runs steadily in humid, wet and sanitary conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
4-bolt round flange design guarantees stable mounting and uniform force distribution. Built-in self-aligning structure compensates for minor shaft misalignment and installation deviation. Dual set screw locking avoids shaft slipping and loosening during continuous operation. Compact integrated structure enables quick installation and replacement. Reliable sealing effectively blocks dust and moisture to extend bearing service life.
Application Scenarios
UCFC209 flange bearings are widely used in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing fits regular dry indoor working conditions, while stainless steel housing is perfect for high-sanitary, humid and corrosive industrial working environments.
