UCFL201 Pillow Block Bearings

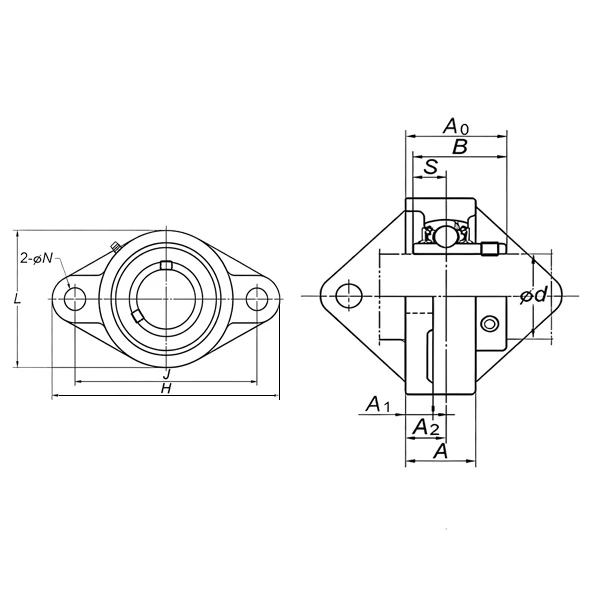

| UCFL201 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFL201 | L | 60 |
| d | 12 | A0 | 33.3 |
| H | 99 | B | 31 |
| J | 76.5 | S | 12.7 |
| A2 | 15 | Install the bolt | M10 |
| A1 | 12 | Dynamic Load Co(N) | 12800 |
| A | 25.5 | Static Load Cor(N) | 6650 |
| N | 12 | Weight(Kg) | 0.49 |

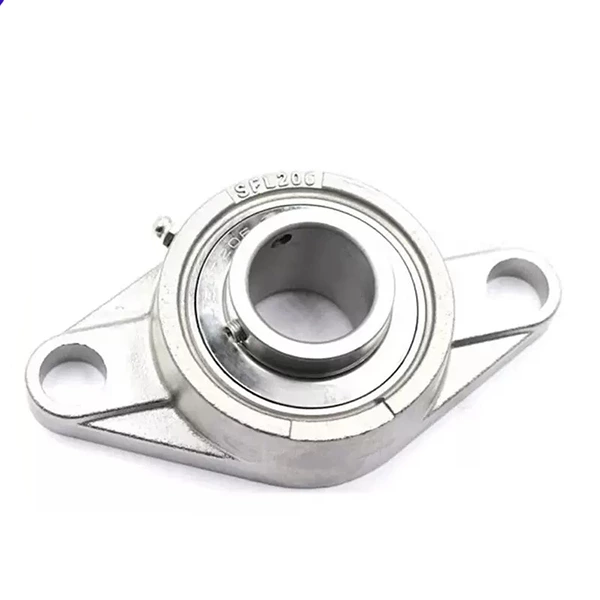

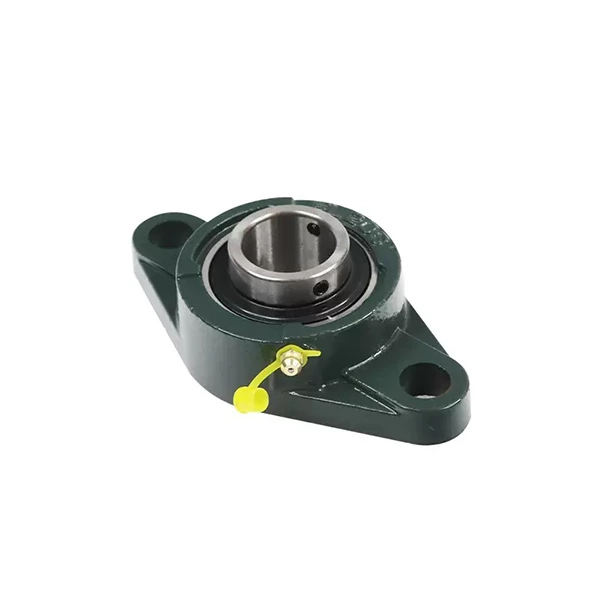

UCFL201 Oval Flange Bearing | 12mm Bore Mounted Bearing Unit
The UCFL201 oval flange bearing is a compact integrated mounted bearing unit with a 12mm bore size. It features a self-aligning UC bearing insert and durable oval cast iron flange housing with dual set screw locking. Designed for limited-space installation, this UCFL201 bearing ensures low-noise, stable operation and easy assembly for light-duty industrial transmission equipment.
Product Material
Bearing Core: Made of high-grade GCr15 bearing steel with professional heat treatment. It delivers high hardness, outstanding wear resistance and stable performance for long-term continuous light-load operation.
Bearing Housing: Constructed from high-strength cast iron, offering reliable structural stability and shock resistance to adapt to various compact mounting environments.
Core Features
Oval flange design fits narrow installation spaces and enables flexible flat mounting. Built-in self-aligning structure compensates for minor shaft misalignment and mounting deviation. Dual set screw fixation effectively prevents shaft slipping and loosening. Integrated one-piece structure simplifies quick installation and replacement. Fine dust-proof sealing reduces daily maintenance frequency.
Application Scenarios
UCFL201 oval flange bearings are widely used in small conveyor equipment, light textile machinery, miniature packaging machines, automated auxiliary equipment and general light industrial machinery. Ideal for light-load, low-vibration and long-term stable continuous operation working conditions.
