UCFL203 Pillow Block Bearings

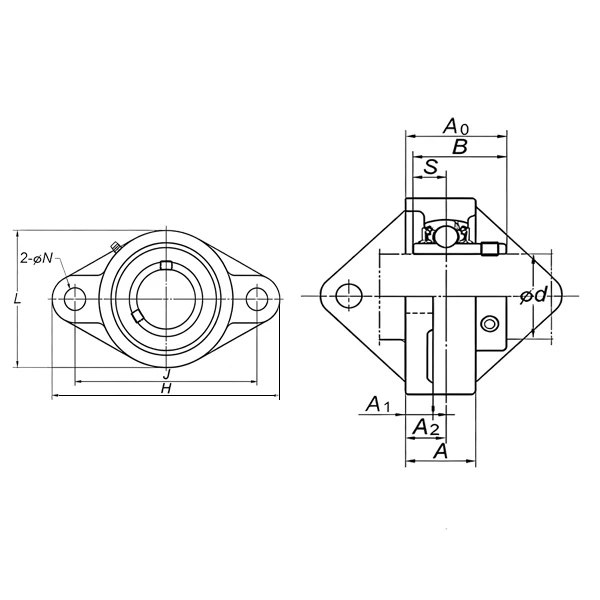

| UCFL203 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCFL203 | L | 60 |
| d | 17 | A0 | 33.3 |
| H | 99 | B | 31 |
| J | 76.5 | S | 12.7 |
| A2 | 15 | Install the bolt | M10 |
| A1 | 12 | Dynamic Load Co(N) | 12800 |
| A | 25.5 | Static Load Cor(N) | 6650 |
| N | 12 | Weight(Kg) | 0.49 |
UCFL203 Oval Flange Bearing | 17mm Bore 2-Bolt Mounted Bearing
The UCFL203 oval flange bearing is a standard 2-bolt integrated mounted bearing unit with a 17mm bore. Adopting a self-aligning UC bearing insert and dual set screw locking structure, this UCFL203 flange bearing offers flexible installation, low-noise stable operation and easy maintenance, ideal for compact light and medium-duty industrial transmission equipment.
Product Material & Housing Difference
Bearing Core: Constructed from high-purity GCr15 bearing steel with professional heat treatment, featuring high hardness, superior wear resistance and stable mechanical performance for long-term continuous operation.

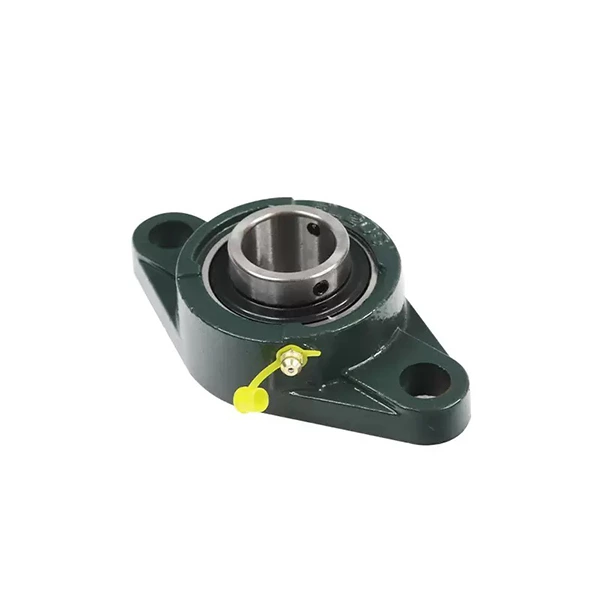

Cast Iron Housing: Standard HT200 grey cast iron with high structural rigidity and strong shock resistance. It is cost-effective and pressure-resistant, perfectly suitable for ordinary indoor, dry and standard industrial working environments.

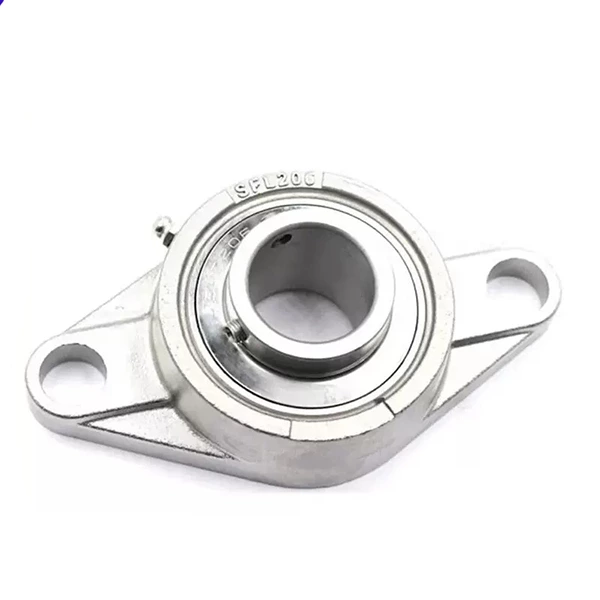

Stainless Steel Housing: Premium stainless steel housing with excellent rust-proof, anti-corrosion and anti-oxidation properties. It adapts to humid, wet, dusty and slightly corrosive environments, widely used for food machinery, outdoor equipment and sanitary-grade industrial facilities.
Core Features
Oval 2-bolt structure fits narrow installation spaces for flexible flat mounting. Built-in self-aligning design offsets minor shaft misalignment and mounting deviation. Dual set screw fixation effectively avoids shaft loosening and slipping. All-in-one integrated structure enables quick installation and replacement. Reliable double-layer dust sealing minimizes daily maintenance workload.
Application Scenarios
UCFL203 oval flange bearings are widely used in medium-duty conveyor systems, textile machinery, packaging equipment, automatic auxiliary machinery and general light industrial equipment. Cast iron housing is applicable for conventional dry indoor conditions, while stainless steel housing is the best choice for humid, corrosive and high-sanitization working scenarios.
