UCP203 Pillow Block Bearings

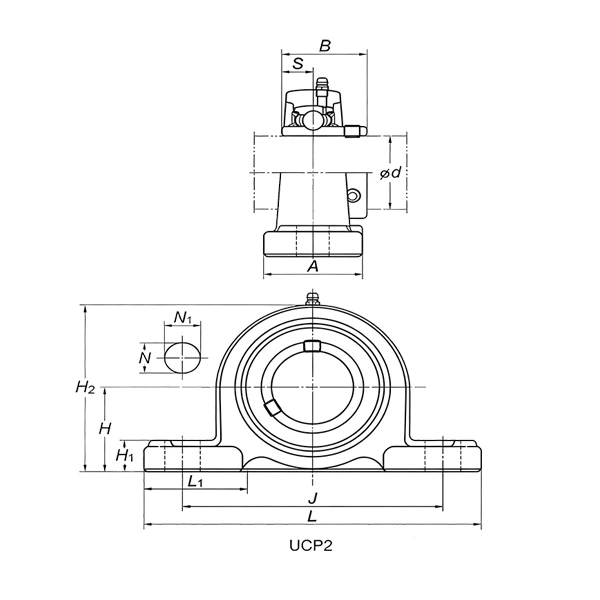

| UCP203 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCP203 | B | 27.4 |
| d | 17 | Install the bolt | M10 |
| H | 30.2 | Dynamic Load Co(N | 12800 |
| L | 127 | Static Load Cor(N) | 66500 |
| J | 96 | Weight(Kg) | 0.7 |
| H2 | 62 | ||

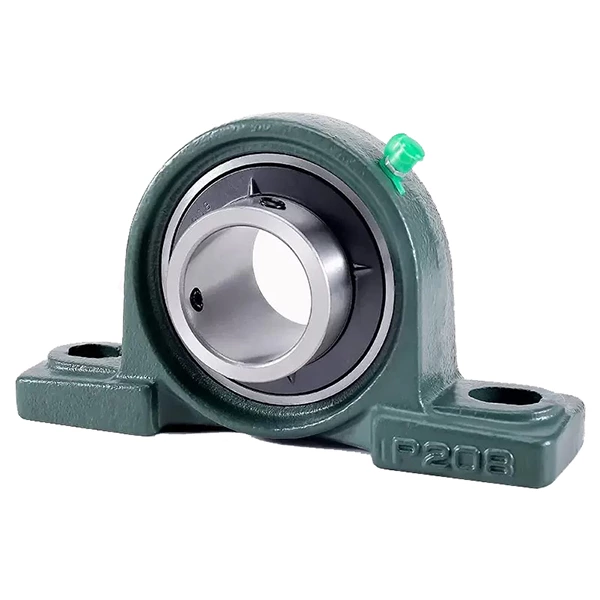

UCP203 Pillow Block Bearing | Self-Aligning Insert Bearing Unit
The UCP203 pillow block bearing is a standard integrated mounted bearing unit with a 17mm bore, composed of a UC insert bearing and heavy-duty cast iron housing. It offers excellent self-aligning performance and dual set screw fixation, ensuring stable rotation, simple installation and reliable load resistance. This cost-effective bearing unit is widely used for light and medium-duty industrial power transmission systems.
Product Material
Bearing Core: Adopts high-quality GCr15 bearing steel with professional heat treatment. It features high hardness, superior wear resistance and stable structural performance, supporting long-term continuous operation and extending service life.
Bearing Housing: Made of high-strength cast iron with integral casting technology. It provides strong rigidity, good shock resistance and vibration damping ability, ensuring stable installation in conventional industrial environments.
Core Features
Advanced self-aligning design effectively compensates for shaft misalignment and mounting deviation. Dual set screw locking structure prevents shaft slipping and loosening. Integrated one-piece structure simplifies installation and replacement. Optimized dust-proof sealing reduces maintenance frequency. Standard size with strong universality and interchangeability.
Application Scenarios
UCP203 pillow block bearings cover a wide range of industrial applications, including conveyor systems, textile machinery, packaging equipment, industrial fans, HVAC devices, agricultural machinery and general automation equipment. It is perfectly suited for light-medium load, continuous rotating and general indoor industrial working conditions.
