UCP309 Pillow Block Bearings

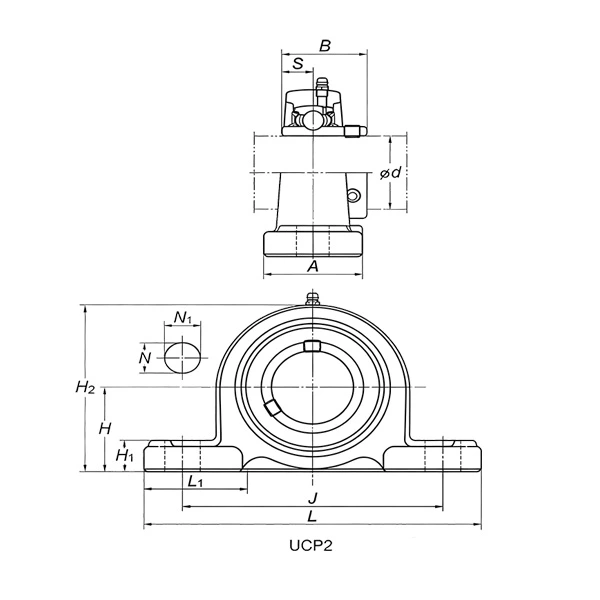

| UCP309 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCP309 | B | 57 |
| d | 45 | Install the bolt | M10*1.25 |
| H | 67 | Dynamic Load Co(N | 51500 |
| L | 245 | Static Load Cor(N) | 29500 |
| J | 190 | Weight(Kg) | 4.1 |
| H2 | 129 | ||
UCP309 Pillow Block Bearing | 45mm Bore Heavy Duty Bearing Unit
The UCP309 pillow block bearing is a heavy-duty integrated mounted bearing unit with a 45mm bore. Featuring a thickened housing and reinforced structure, it boasts higher load capacity and better stability than standard UCP2 series bearings. Equipped with self-aligning functionality and dual set screw locking, it delivers smooth rotation, easy installation and long-lasting durability for heavy-duty industrial power transmission.
Product Material
Bearing Core: Made of high-grade GCr15 bearing steel with precision heat treatment. It features high hardness, superior wear resistance and strong pressure resistance, supporting stable long-term heavy-load continuous operation.
Bearing Housing: Constructed with thickened high-strength cast iron. It provides excellent shock resistance and vibration stability, suitable for harsh and high-intensity industrial working environments.
Core Features
Reinforced heavy-duty structure provides enhanced load capacity compared to regular bearing units. Built-in self-aligning design compensates for shaft misalignment and mounting deviation. Dual set screw locking prevents shaft slipping and loosening during operation. All-in-one integrated structure simplifies installation and replacement. Premium dust-proof sealing effectively lowers long-term maintenance costs.
Application Scenarios
UCP309 pillow block bearings are widely used in heavy-duty conveyor systems, construction machinery, agricultural equipment, mining auxiliary machinery, large textile machines and automated production lines. It is perfectly suited for heavy-load, high-vibration and long-duration continuous rotation industrial working conditions.
