UCPA201 Pillow Block Bearings

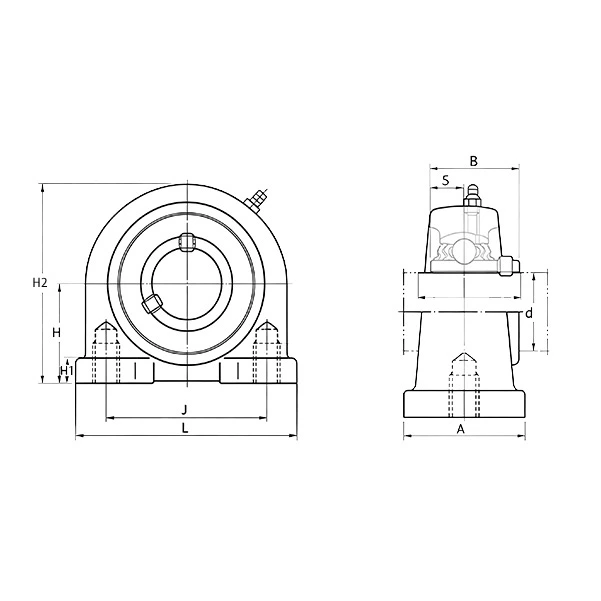

| UCPA201 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPA201 | H2 | 62 |
| d | 12 | B | 31 |
| H | 30.2 | S | 12.7 |
| L | 76 | Install the bolt | M10 |
| A | 38 | Dynamic Load Co(N) | 12800 |
| J | 52 | Static Load Cor(N) | 6650 |
| H1 | 8 | Weight(Kg) | 0.6 |
UCPA201 Bearing | 12mm Bore Pillow Block Mounted Bearing
The UCPA201 pillow block bearing is a lightweight mounted bearing unit with a 12mm bore. Adopting a self-aligning UC bearing insert and dual set screw locking design, this UCPA201 bearing ensures low-noise, stable operation with minimal maintenance, ideal for general light-duty industrial machinery and automation equipment.
Product Material And amp; Housing Difference
Bearing Core: Manufactured from premium GCr15 bearing steel with professional heat treatment. It features high hardness, outstanding wear resistance and stable mechanical performance for long-term continuous operation.

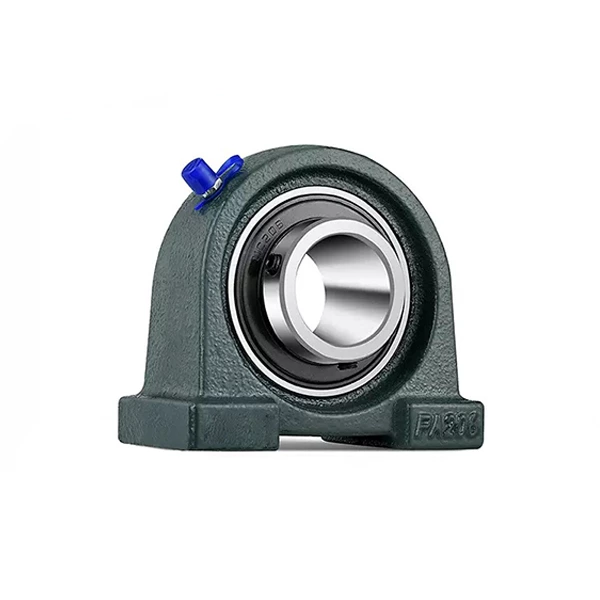

Cast Iron Housing: Standard HT200 grey cast iron housing delivers high rigidity and excellent shock resistance. Cost-effective and sturdy, it is suitable for dry, indoor and conventional standard industrial working environments.

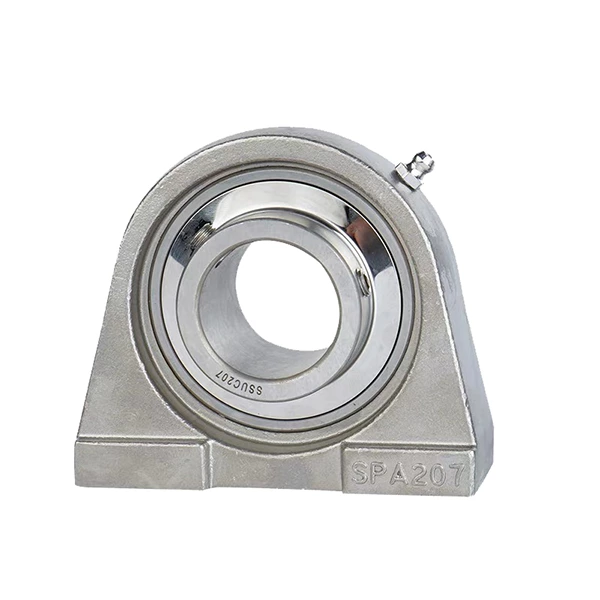

Stainless Steel Housing: High-grade stainless steel housing offers excellent rust-proof, anti-corrosion and waterproof performance. It works steadily in humid, wet and sanitary scenarios, perfect for food processing equipment, outdoor machinery and mildly corrosive industrial environments.
Core Features
Compact PA type housing structure saves installation space. Built-in self-aligning function compensates for minor shaft misalignment and mounting deviation. Dual set screw locking prevents shaft slipping and loosening during operation. Simple plug-and-play installation reduces assembly time. Fine sealing structure resists dust and moisture to extend bearing service life.
Application Scenarios
UCPA201 mounted bearings are widely used in small conveyor systems, textile machinery, packaging devices and automated auxiliary equipment. Cast iron housing adapts to ordinary dry indoor working conditions, while stainless steel housing is the best choice for sanitary, humid and corrosive industrial applications.
