UCPA202 Pillow Block Bearings

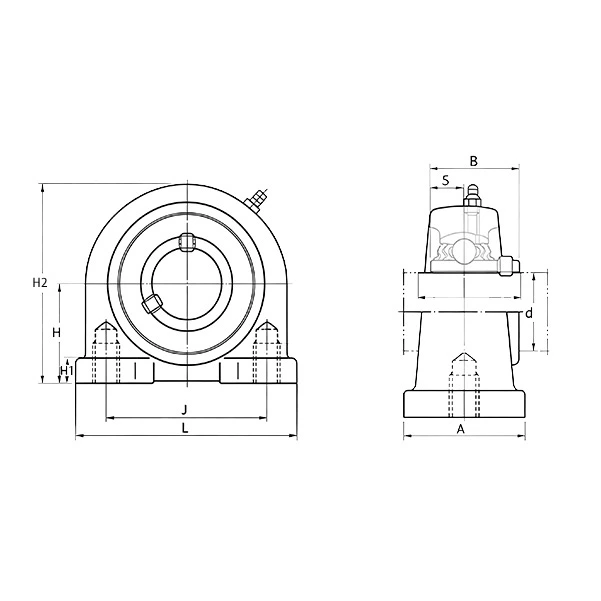

| UCPA202 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPA202 | H2 | 62 |
| d | 15 | B | 31 |
| H | 30.2 | S | 12.7 |
| L | 76 | Install the bolt | M10 |
| A | 38 | Dynamic Load Co(N) | 12800 |
| J | 52 | Static Load Cor(N) | 6650 |
| H1 | 8 | Weight(Kg) | 0.6 |
UCPA202 Bearing | 15mm Bore Pillow Block Mounted Bearing
The UCPA202 pillow block bearing is a compact light-duty mounted bearing unit with a 15mm bore. Equipped with a self-aligning UC insert and dual set screw locking structure, this UCPA202 bearing provides stable low-noise operation and low maintenance, suitable for light-duty industrial machinery and automation systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It delivers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

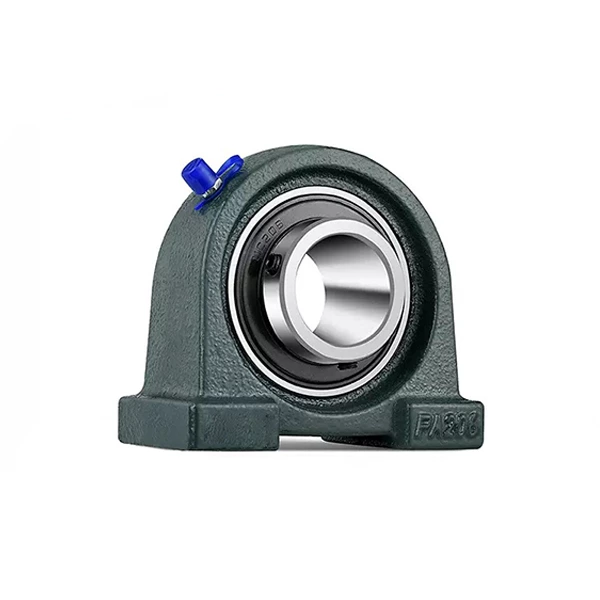

Cast Iron Housing: Standard HT200 grey cast iron housing features high rigidity and strong shock resistance. Cost-effective and durable, it suits dry, indoor and conventional standard industrial working environments.

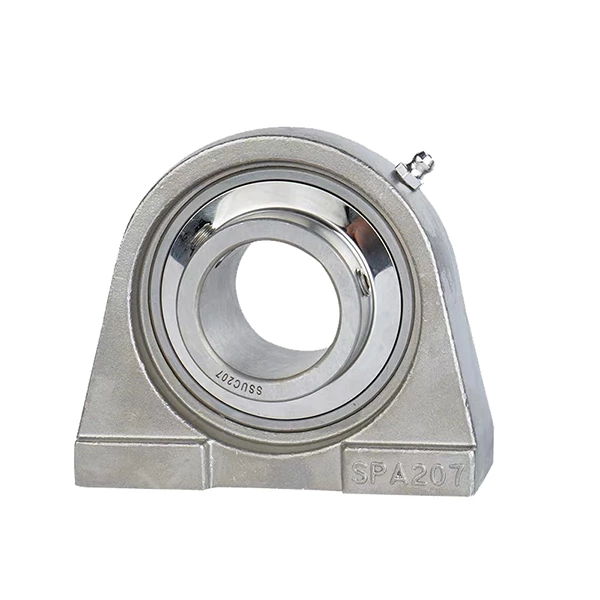

Stainless Steel Housing: Premium stainless steel housing boasts superior rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary working conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Space-saving PA type pillow block structure for easy compact installation. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during operation. Simple and fast installation reduces maintenance time. Reliable sealing resists dust and moisture to prolong bearing service life.
Application Scenarios
UCPA202 pillow block bearings are widely applied in small conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
