UCPA204 Pillow Block Bearings

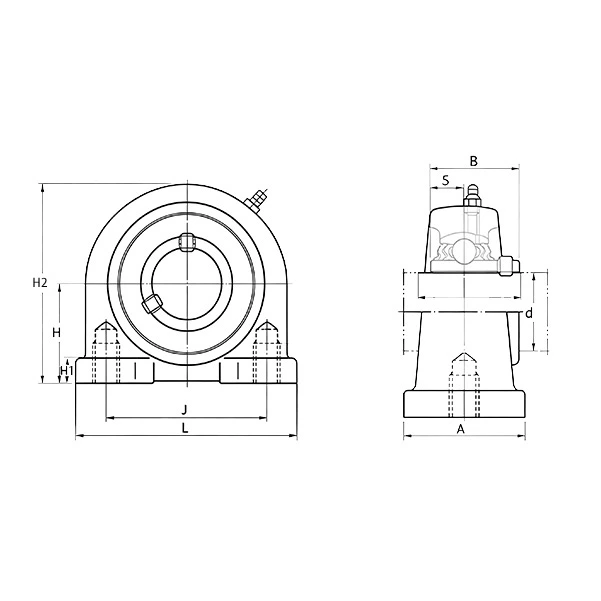

| UCPA204 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPA204 | H2 | 62 |
| d | 20 | B | 31 |
| H | 30.2 | S | 12.7 |
| L | 76 | Install the bolt | M10 |
| A | 38 | Dynamic Load Co(N) | 12800 |
| J | 52 | Static Load Cor(N) | 6650 |
| H1 | 8 | Weight(Kg) | 0.6 |
UCPA204 Bearing | 20mm Bore Pillow Block Mounted Bearing
The UCPA204 pillow block bearing is a compact light-duty mounted bearing unit with a 20mm bore. Equipped with a self-aligning UC insert and dual set screw locking structure, this UCPA204 bearing delivers stable low-noise operation and low-maintenance performance, ideal for light-duty industrial machinery and automation systems.
Product Material And amp; Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It provides high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

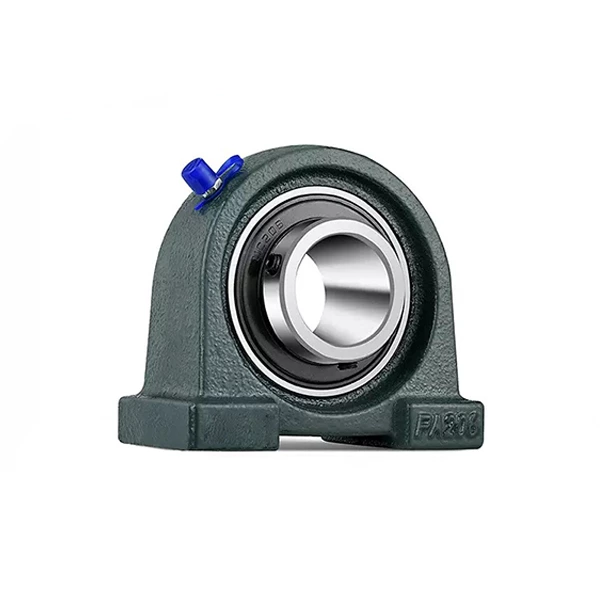

Cast Iron Housing: Standard HT200 grey cast iron housing offers high rigidity and strong shock resistance. Cost-effective and durable, it is suitable for dry, indoor and conventional standard industrial environments.

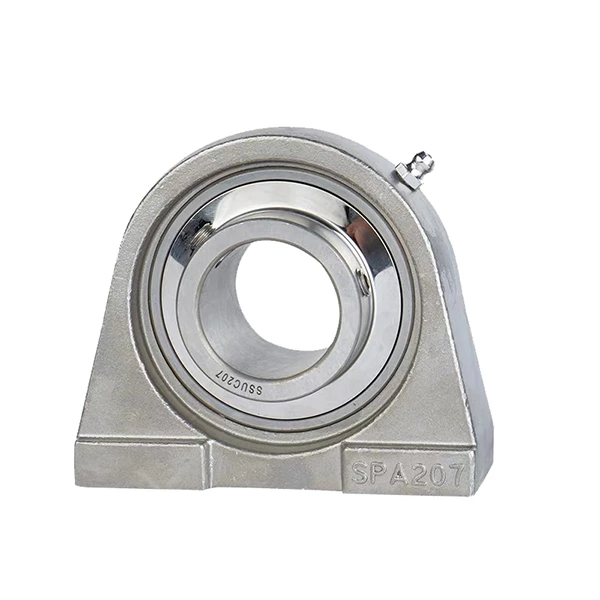

Stainless Steel Housing: Premium stainless steel housing features outstanding rust-proof, anti-corrosion and moisture-resistant performance. It works steadily in humid, wet and sanitary conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Space-saving PA-type pillow block structure enables compact and easy installation. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking avoids shaft slipping and loosening during operation. Simple assembly supports fast installation and routine replacement. High-quality sealing resists dust and moisture to extend bearing service life.
Application Scenarios
UCPA204 pillow block bearings are widely used in small conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimized for sanitary, humid and corrosive industrial environments.
