UCPA205 Pillow Block Bearings

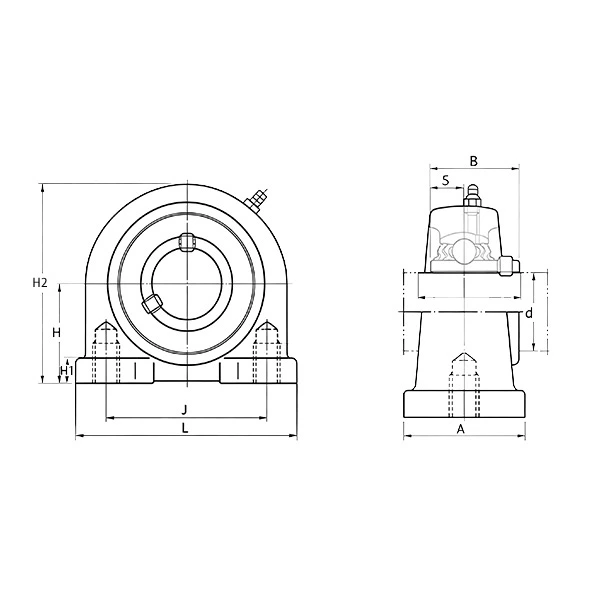

| UCPA205 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPA205 | H2 | 72 |
| d | 25 | B | 34.1 |
| H | 36.5 | S | 14.3 |
| L | 84 | Install the bolt | M10 |
| A | 38 | Dynamic Load Co(N) | 14000 |
| J | 56 | Static Load Cor(N) | 7800 |
| H1 | 10 | Weight(Kg) | 0.8 |
UCPA205 Bearing | 25mm Bore Pillow Block Mounted Bearing
The UCPA205 pillow block bearing is a compact mounted bearing unit with a 25mm bore. Adopting a self-aligning UC insert and dual set screw locking structure, this UCPA205 bearing features stable low-noise operation and low maintenance, suitable for light and medium-duty industrial machinery and automation systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It delivers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

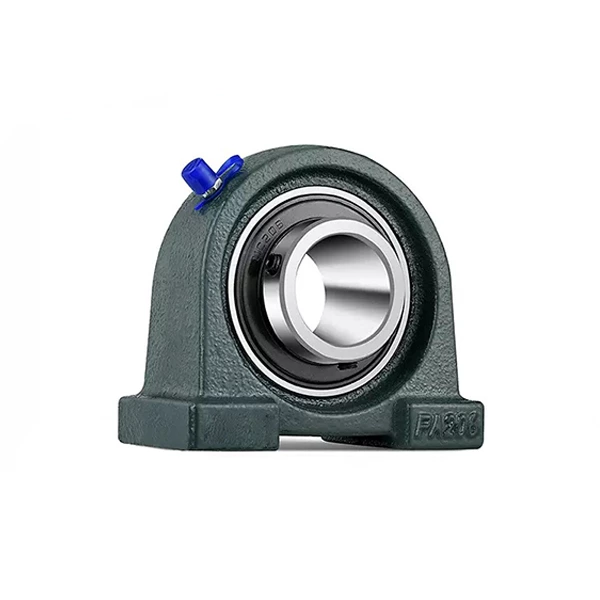

Cast Iron Housing: Standard HT200 grey cast iron housing provides high rigidity and strong shock resistance. Cost-effective and durable, it fits dry, indoor and conventional industrial working environments.

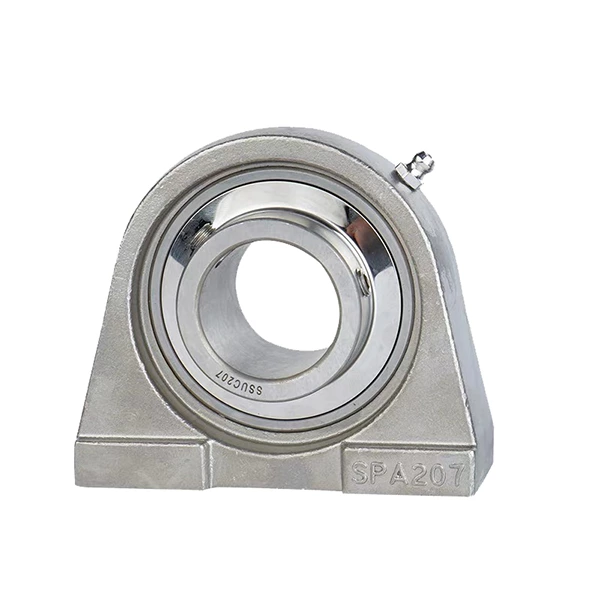

Stainless Steel Housing: Premium stainless steel housing offers excellent rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary working conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Space-saving PA-type pillow block design allows compact and quick installation. Built-in self-aligning function compensates for minor shaft misalignment and mounting errors. Dual set screw locking prevents shaft slipping and loosening during continuous operation. Reliable sealing structure blocks dust and water ingress to extend bearing service life.
Application Scenarios
UCPA205 pillow block bearings are widely applied in conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing is suitable for standard dry indoor environments, while stainless steel housing is the optimal choice for sanitary, humid and corrosive industrial working conditions.
