UCPA207 Pillow Block Bearings

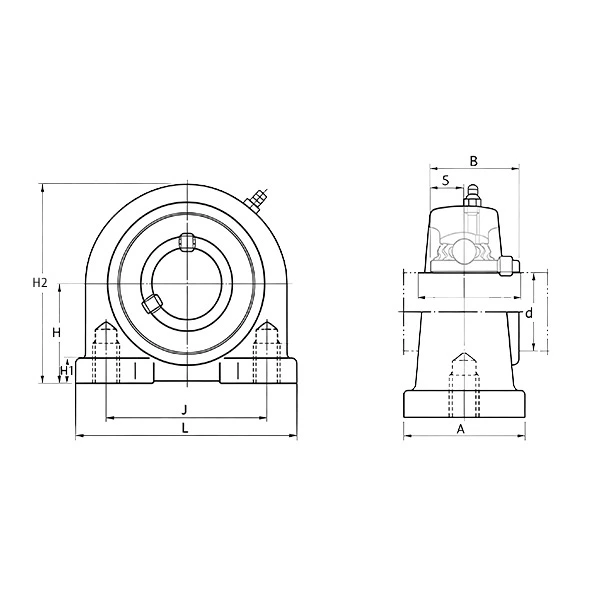

| UCPA207 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPA207 | H2 | 95 |
| d | 35 | B | 42.9 |
| H | 47.6 | S | 17.5 |
| L | 110 | Install the bolt | M14 |
| A | 48 | Dynamic Load Co(N) | 25500 |
| J | 80 | Static Load Cor(N) | 15300 |
| H1 | 12 | Weight(Kg) | 1.7 |
UCPA207 Bearing | 35mm Bore Pillow Block Mounted Bearing
The UCPA207 pillow block bearing is a reliable mounted bearing unit with a 35mm bore. Equipped with a self-aligning UC insert and dual set screw locking system, this UCPA207 bearing offers stable low-noise performance and low maintenance, ideal for light and medium-duty industrial machinery and automation systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It features high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

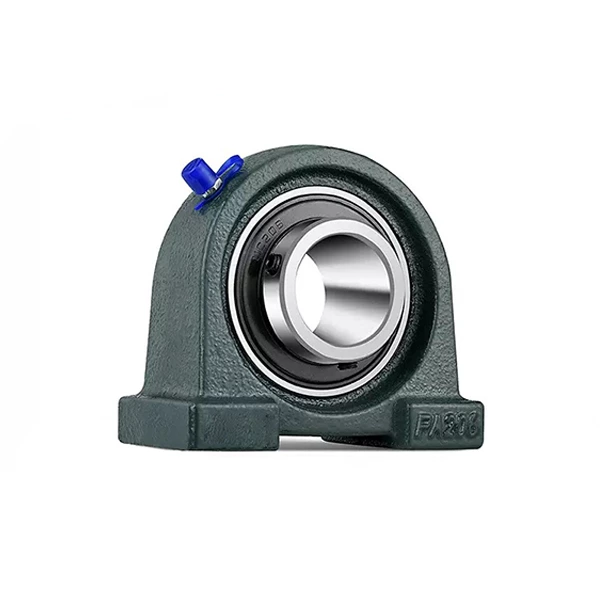

Cast Iron Housing: Standard HT200 grey cast iron housing delivers high rigidity and strong shock resistance. Cost-effective and durable, it fits dry, indoor and conventional standard industrial working environments.

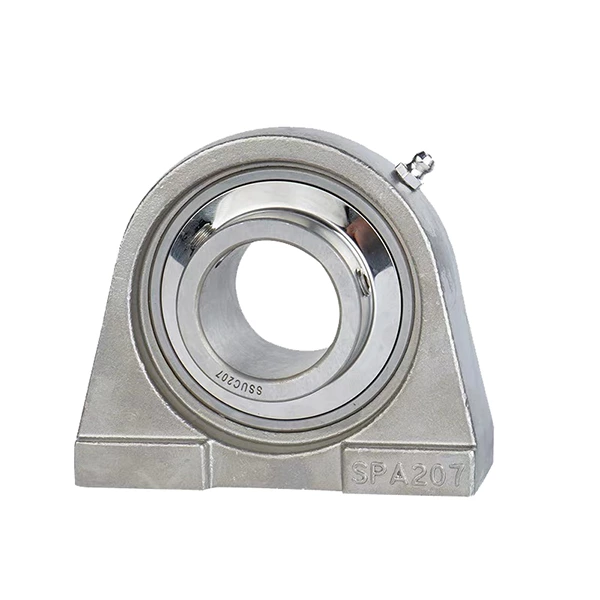

Stainless Steel Housing: Premium stainless steel housing provides outstanding rust-proof, anti-corrosion and moisture-resistant properties. It works reliably in humid, wet and sanitary conditions, suitable for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Compact PA-type pillow block structure saves installation space and enables fast mounting. Built-in self-aligning design compensates for minor shaft misalignment and installation deviation. Dual set screw locking prevents shaft slipping and loosening during continuous operation. Effective sealing resists dust and moisture intrusion to extend bearing service life.
Application Scenarios
UCPA207 pillow block bearings are widely applied in conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing is perfect for standard dry indoor environments, while stainless steel housing is optimized for sanitary, humid and corrosive industrial working conditions.
