UCPA208 Pillow Block Bearings

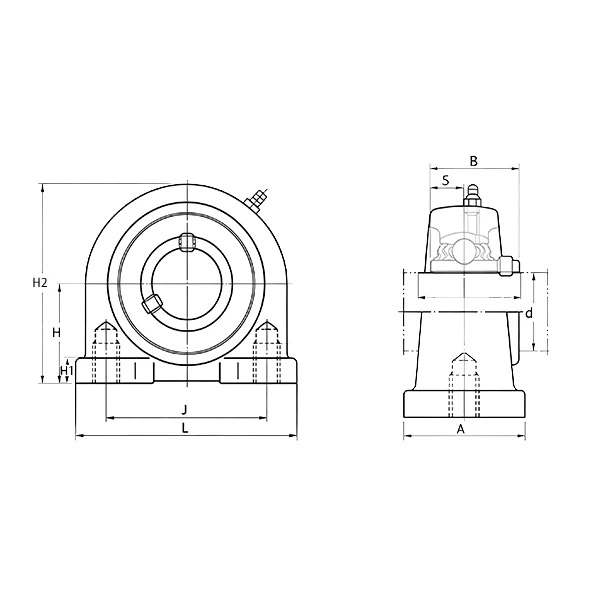

| UCPA208 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPA208 | H2 | 100 |
| d | 40 | B | 49.2 |
| H | 49.2 | S | 19 |
| L | 116 | Install the bolt | M14 |
| A | 54 | Dynamic Load Co(N) | 32500 |
| J | 84 | Static Load Cor(N) | 20000 |
| H1 | 12 | Weight(Kg) | 2 |
UCPA208 Bearing | 40mm Bore Pillow Block Mounted Bearing
The UCPA208 pillow block bearing is a sturdy mounted bearing unit with a 40mm bore. Featuring a self-aligning UC insert and dual set screw locking system, this UCPA208 bearing provides stable low-noise rotation and low-maintenance operation, suitable for light and medium-duty industrial machinery and automation systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It delivers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

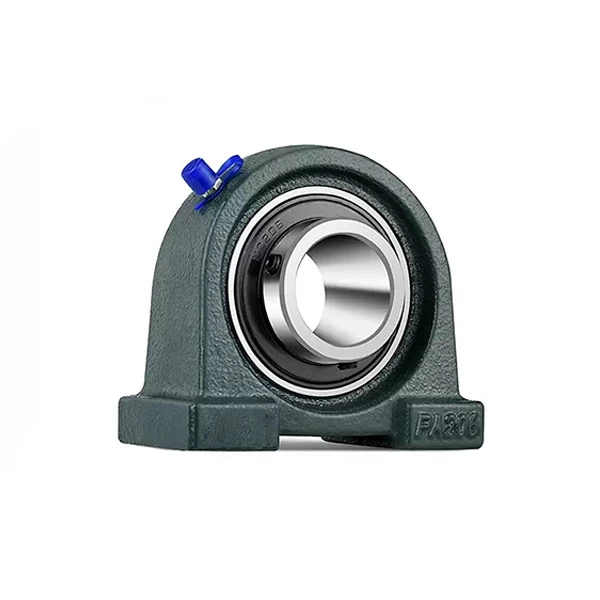

Cast Iron Housing: Standard HT200 grey cast iron housing offers high rigidity and strong shock resistance. Cost-effective and durable, it is ideal for dry, indoor and conventional standard industrial environments.

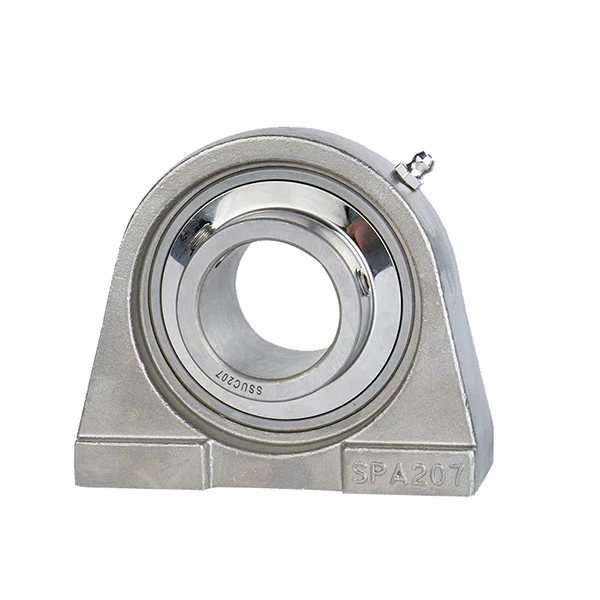

Stainless Steel Housing: Premium stainless steel housing features superior rust-proof, anti-corrosion and moisture-resistant performance. It operates steadily in humid, wet and sanitary working conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Compact PA-type pillow block structure saves installation space and allows quick mounting. Built-in self-aligning design compensates for minor shaft misalignment and installation deviation. Dual set screw locking effectively prevents shaft slipping and loosening during running. Reliable sealing resists dust and moisture ingress to extend bearing service life.
Application Scenarios
UCPA208 pillow block bearings are widely used in conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimized for high-sanitary, humid and corrosive industrial environments.
