UCPA209 Pillow Block Bearings

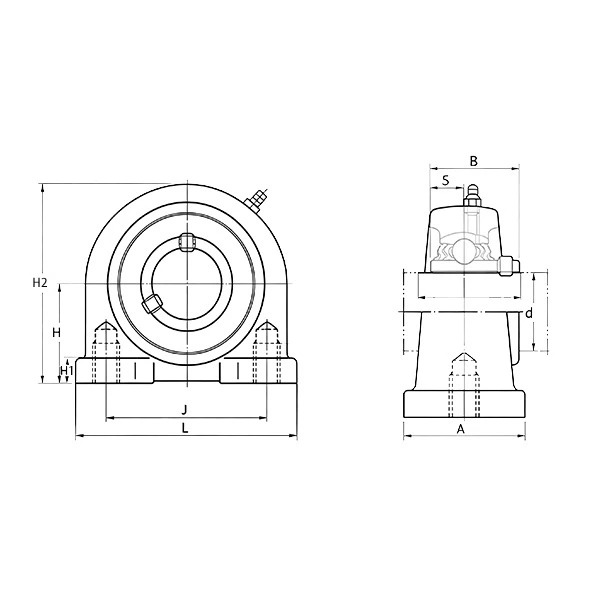

| UCPA209 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPA209 | H2 | 108 |
| d | 45 | B | 49.2 |
| H | 54.2 | S | 19 |
| L | 120 | Install the bolt | M14 |
| A | 54 | Dynamic Load Co(N) | 34100 |
| J | 90 | Static Load Cor(N) | 21300 |
| H1 | 12 | Weight(Kg) | 2.2 |
UCPA209 Bearing | 45mm Bore Pillow Block Mounted Bearing
The UCPA209 pillow block bearing is a robust mounted bearing unit with a 45mm bore. Equipped with a self-aligning UC insert and dual set screw locking system, this UCPA209 bearing delivers stable, low-noise rotation and low-maintenance performance, ideal for light and medium-duty industrial machinery and automation systems.
Product Material And Housing Difference
Bearing Core: Manufactured from high-quality GCr15 bearing steel with precision heat treatment. It offers high hardness, exceptional wear resistance and stable mechanical performance for long-term continuous operation.

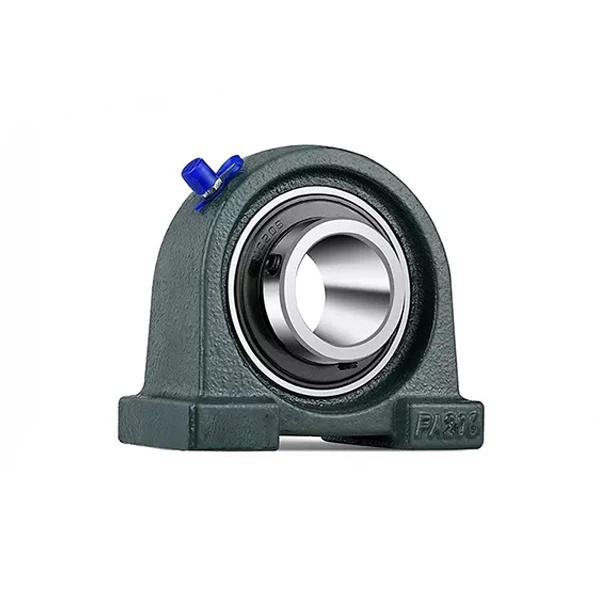

Cast Iron Housing: Standard HT200 grey cast iron housing provides high rigidity and strong shock resistance. Cost-effective and sturdy, it is suitable for dry, indoor and conventional standard industrial environments.

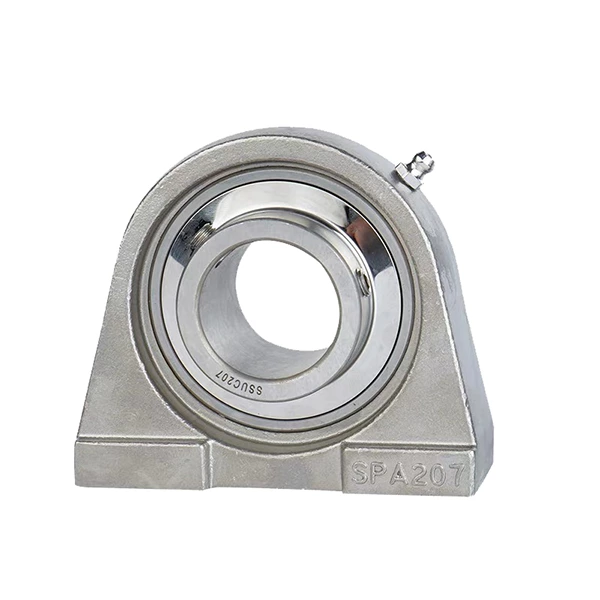

Stainless Steel Housing: Premium stainless steel housing features excellent rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Compact PA-type pillow block structure saves installation space and enables fast mounting. Built-in self-aligning design compensates for minor shaft misalignment and installation deviation. Dual set screw locking prevents shaft slipping and loosening during continuous operation. High-performance sealing resists dust and moisture ingress to extend bearing service life.
Application Scenarios
UCPA209 pillow block bearings are widely applied in conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimized for high-sanitary, humid and corrosive industrial environments.
