UCPA210 Pillow Block Bearings

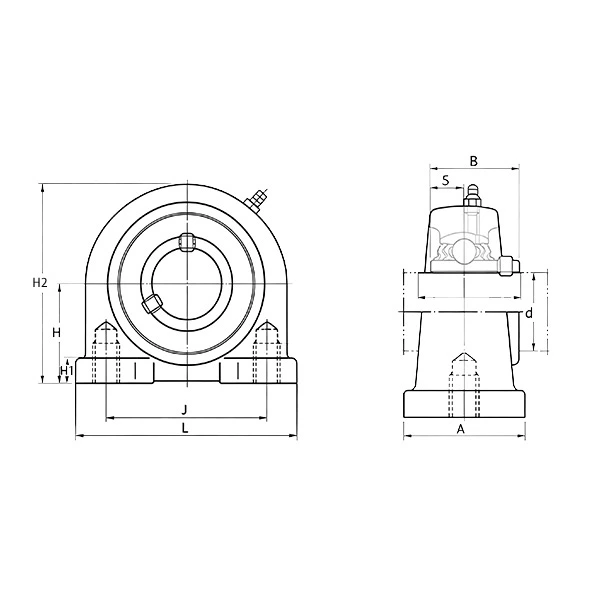

| UCPA210 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPA210 | H2 | 116 |
| d | 50 | B | 51.6 |
| H | 57.2 | S | 19 |
| L | 130 | Install the bolt | M16 |
| A | 60 | Dynamic Load Co(N) | 35100 |
| J | 94 | Static Load Cor(N) | 23200 |
| H1 | 14 | Weight(Kg) | 2.9 |
UCPA210 Bearing | 50mm Bore Pillow Block Mounted Bearing
The UCPA210 pillow block bearing is a heavy-duty mounted bearing unit with a 50mm bore. Designed with a self-aligning UC insert and dual set screw locking system, this UCPA210 bearing ensures stable low-noise operation and low maintenance, suited for medium and heavy-duty industrial machinery and automation systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It delivers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

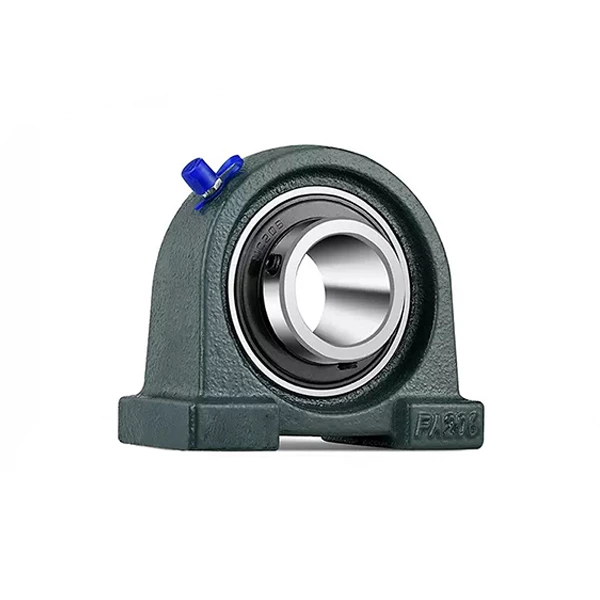

Cast Iron Housing: Standard HT200 grey cast iron housing features high rigidity and strong shock resistance. Cost-effective and durable, it works well in dry, indoor and conventional standard industrial environments.

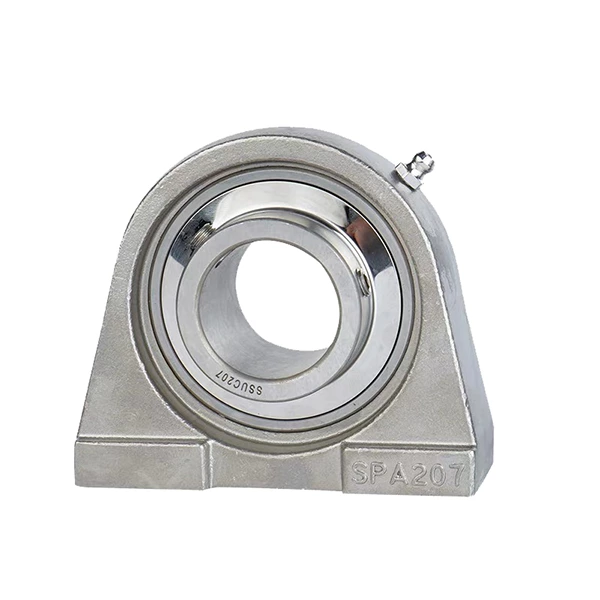

Stainless Steel Housing: Premium stainless steel housing provides superior rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Compact PA-type pillow block structure saves installation space and supports fast mounting. Built-in self-aligning design compensates for minor shaft misalignment and installation deviation. Dual set screw locking effectively prevents shaft slipping and loosening during continuous operation. Reliable sealing resists dust and moisture ingress to extend bearing service life.
Application Scenarios
UCPA210 pillow block bearings are widely used in heavy-duty conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimized for high-sanitary, humid and corrosive industrial environments.
