UCPH201 Pillow Block Bearings

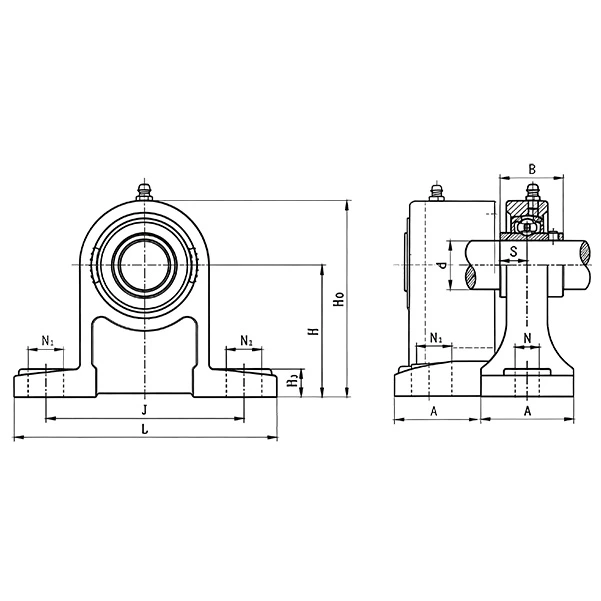

| UCPH201 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH201 | H2 | 15 |
| d | 12 | A | 40 |
| B | 27.4 | N | 13 |
| S | 11.5 | N1 | 19 |
| L | 127 | Install the bolt | M10 |
| J | 95 | Dynamic Load Co(N) | 12800 |
| H | 70 | Static Load Cor(N) | 6650 |
| H0 | 101 | Weight(Kg) | 1 |
UCPH201 Bearing | 12mm Bore High Pillow Block Mounted Bearing
The UCPH201 high pillow block bearing is a heightened mounted bearing unit with a 12mm bore. Adopting a self-aligning UC bearing insert and dual set screw locking structure, this UCPH201 bearing features elevated base design, stable low-noise operation and zero frequent maintenance, suitable for light-duty industrial machinery with height installation requirements.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It owns high hardness, outstanding wear resistance and stable mechanical performance for long-term continuous operation.

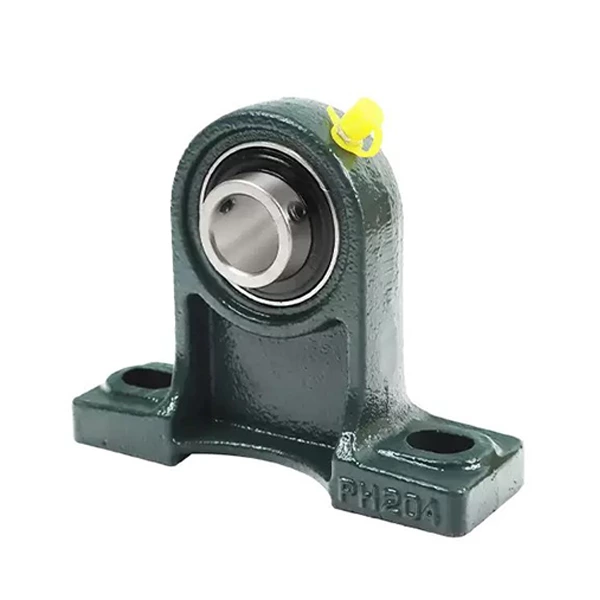

Cast Iron Housing: HT200 grey cast iron high base housing provides high rigidity and strong shock resistance. Cost-effective and durable, it is widely used for dry, indoor and conventional standard industrial working environments.

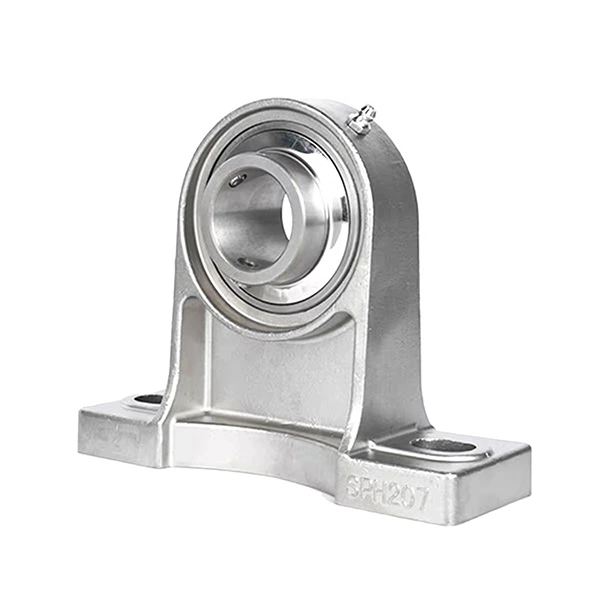

Stainless Steel Housing: Premium stainless steel high base housing delivers excellent rust-proof, anti-corrosion and moisture-resistant performance. It works stably in humid, wet and sanitary scenarios, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial environments.
Core Features
Unique high-base pillow block design meets special height installation needs. Built-in self-aligning function compensates for minor shaft misalignment and mounting deviation. Dual set screw locking prevents shaft slipping and loosening during operation. Compact integrated structure enables fast installation and replacement. Premium sealing structure effectively blocks dust and moisture to prolong service life.
Application Scenarios
UCPH201 high pillow block bearings are commonly applied in customized conveyor systems, small textile machinery, packaging equipment and automated auxiliary devices. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimal for sanitary, humid and corrosive industrial working scenarios.
