UCPH202 Pillow Block Bearings

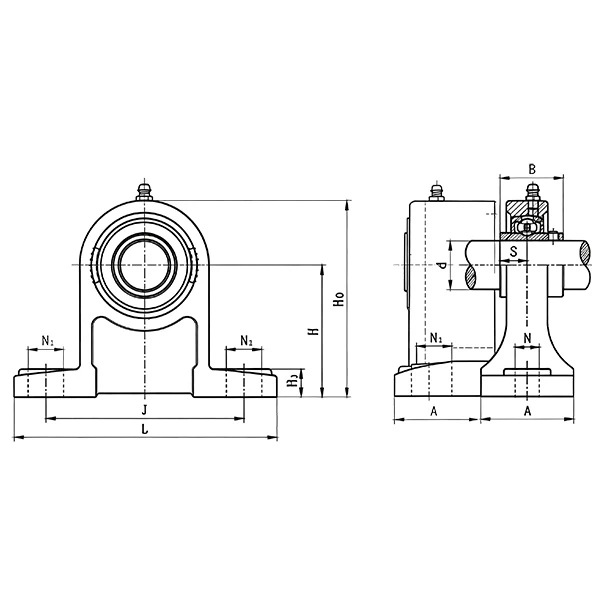

| UCPH202 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH202 | H2 | 15 |
| d | 15 | A | 40 |
| B | 27.4 | N | 13 |
| S | 11.5 | N1 | 19 |
| L | 127 | Install the bolt | M10 |
| J | 95 | Dynamic Load Co(N) | 12800 |
| H | 70 | Static Load Cor(N) | 6650 |
| H0 | 101 | Weight(Kg) | 1 |
UCPH202 Bearing | 15mm Bore High Pillow Block Mounted Bearing
The UCPH202 high pillow block bearing is a heightened mounted bearing unit with a 15mm bore. It adopts a self-aligning UC insert and dual set screw locking structure, featuring stable low-noise operation and low maintenance. This high-base UCPH202 bearing is designed for light-duty industrial equipment requiring elevated mounting height.
Product Material And amp; Housing Difference
Bearing Core: Manufactured from high-quality GCr15 bearing steel with precision heat treatment. It offers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

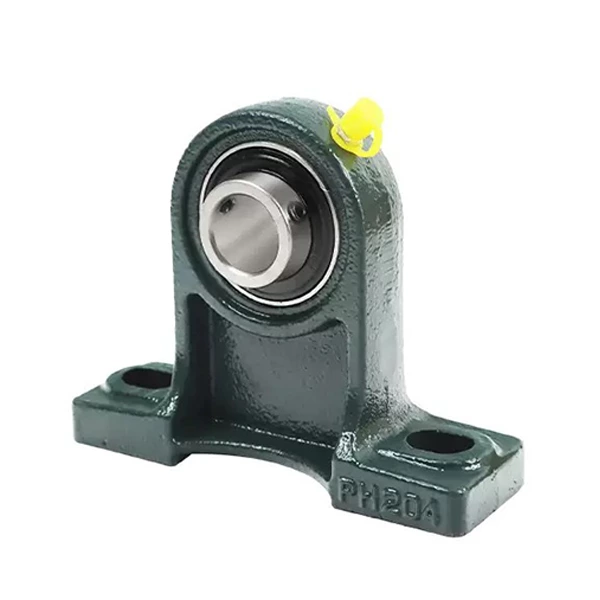

Cast Iron Housing: HT200 grey cast iron high-base housing delivers high rigidity and good shock resistance. Cost-effective and robust, it is suitable for dry, indoor and conventional standard industrial environments.

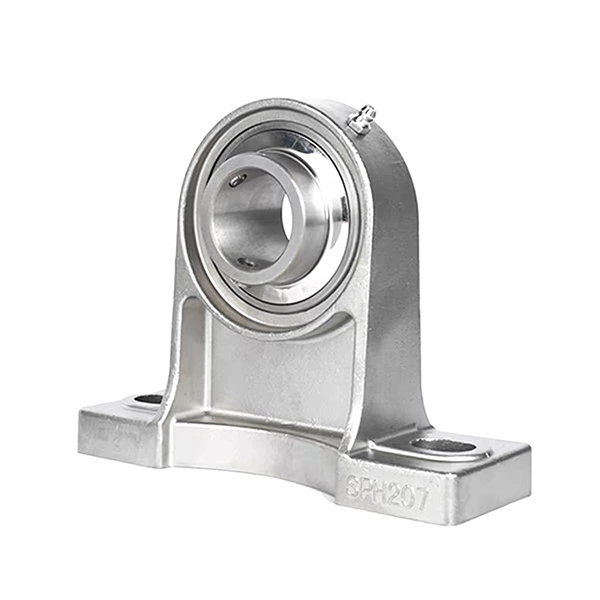

Stainless Steel Housing: High-grade stainless steel housing provides superior rust-proof, anti-corrosion and waterproof performance. It works reliably in humid, wet and sanitary conditions, ideal for food machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Special high-base structure meets height-limited installation requirements. Built-in self-aligning design compensates for minor shaft misalignment and mounting errors. Dual set screw locking avoids shaft loosening and slipping during operation. Simple structure supports quick installation and replacement. Fine sealing prevents dust and moisture ingress to extend bearing lifespan.
Application Scenarios
UCPH202 high pillow block bearings are widely used in customized conveyors, textile machinery, packaging machines and automated auxiliary equipment. Cast iron housing fits ordinary dry indoor working conditions, while stainless steel housing is perfect for sanitary, humid and corrosive industrial environments.
