UCPH203 Pillow Block Bearings

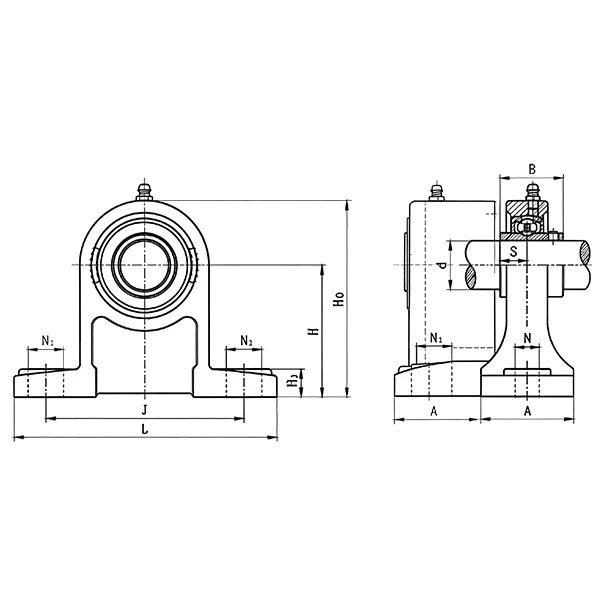

| UCPH203 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH203 | H2 | 15 |
| d | 17 | A | 40 |
| B | 27.4 | N | 13 |
| S | 11.5 | N1 | 19 |
| L | 127 | Install the bolt | M10 |
| J | 95 | Dynamic Load Co(N) | 12800 |
| H | 70 | Static Load Cor(N) | 6650 |
| H0 | 101 | Weight(Kg) | 1 |
UCPH203 Bearing | 17mm Bore High Pillow Block Mounted Bearing
The UCPH203 high pillow block bearing is a height-raised mounted bearing unit with a 17mm bore. Equipped with a self-aligning UC bearing insert and dual set screw locking structure, it delivers stable low-noise rotation and low-maintenance performance. The high-base UCPH203 model is specially designed for light-duty industrial machinery that requires elevated installation height.
Product Material And Housing Difference
Bearing Core: Made of premium GCr15 bearing steel with precise heat treatment. It features high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

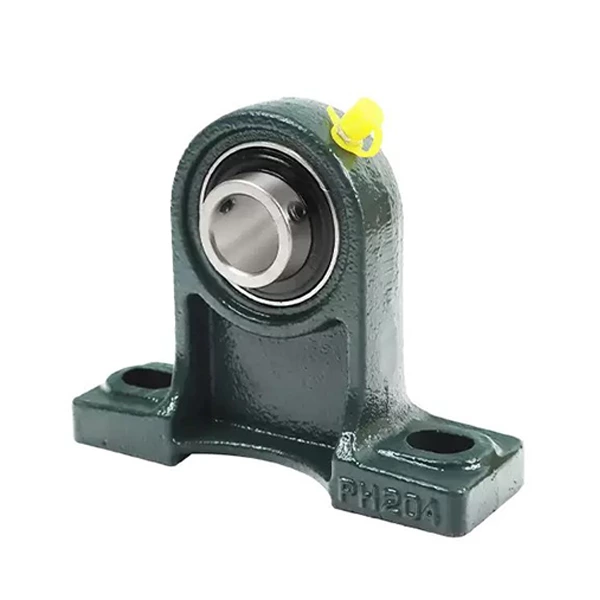

Cast Iron Housing: HT200 grey cast iron high-base housing owns high rigidity and strong shock resistance. Cost-effective and durable, it is suitable for dry, indoor and conventional standard industrial working environments.

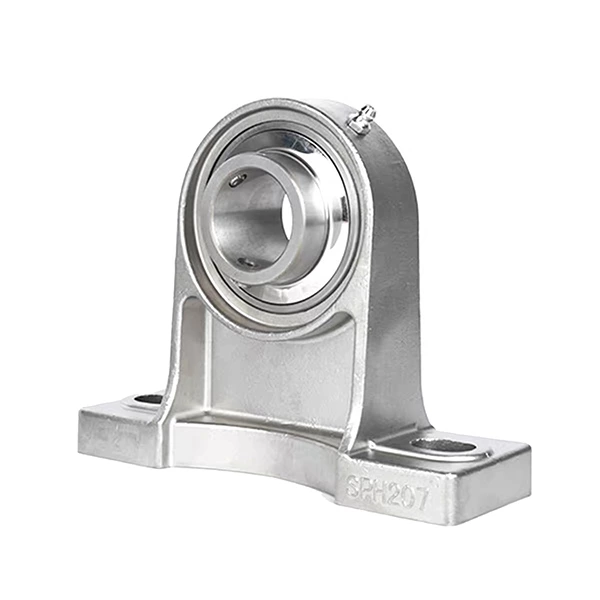

Stainless Steel Housing: High-quality stainless steel housing provides outstanding rust-proof, anti-corrosion and moisture-resistant properties. It performs steadily in humid, wet and sanitary working conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Unique high-base structure meets special height installation demands. Built-in self-aligning function compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during operation. Simple structure enables fast installation and replacement. Reliable sealing design blocks dust and moisture to extend bearing service life.
Application Scenarios
UCPH203 high pillow block bearings are widely applied in customized conveyor systems, textile machinery, packaging equipment and automated auxiliary devices. Cast iron housing adapts to regular dry indoor environments, while stainless steel housing is the optimal choice for sanitary, humid and corrosive industrial applications.
