UCPH204 Pillow Block Bearings

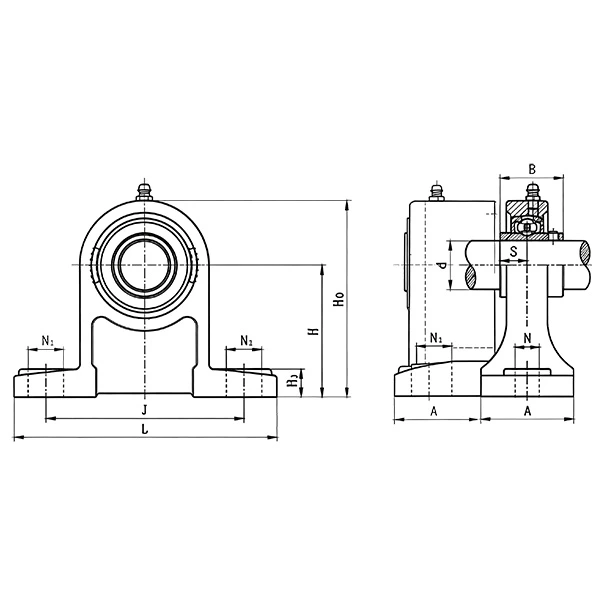

| UCPH204 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH204 | H2 | 15 |
| d | 20 | A | 40 |
| B | 31 | N | 13 |
| S | 12.7 | N1 | 19 |
| L | 127 | Install the bolt | M10 |
| J | 95 | Dynamic Load Co(N) | 12800 |
| H | 70 | Static Load Cor(N) | 6650 |
| H0 | 101 | Weight(Kg) | 1 |
UCPH204 Bearing | 20mm Bore High Pillow Block Mounted Bearing
The UCPH204 high pillow block bearing is a height-raised mounted bearing unit with a 20mm bore. Featuring a self-aligning UC insert and dual set screw locking structure, this high-base bearing provides stable low-noise rotation and low-maintenance operation, perfect for light and medium-duty machinery requiring elevated mounting height.
Product Material And Housing Difference
Bearing Core: Constructed with high-quality GCr15 bearing steel and precision heat treatment. It offers high hardness, exceptional wear resistance and stable mechanical performance for long-term continuous operation.

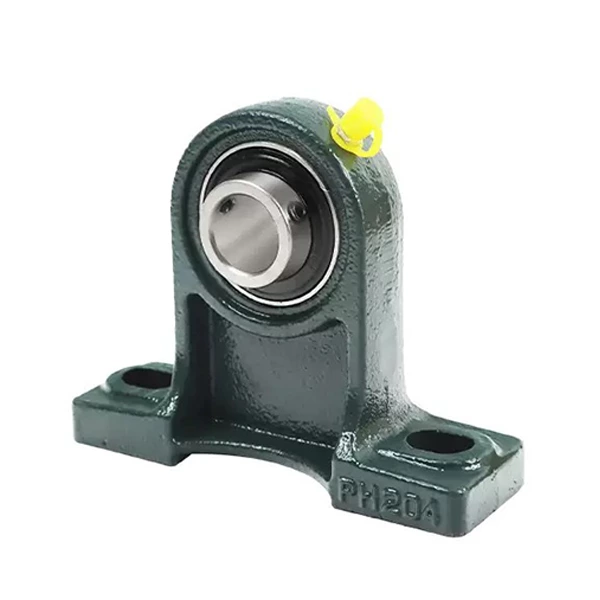

Cast Iron Housing: HT200 grey cast iron high-base housing features high rigidity and excellent shock resistance. Cost-effective and sturdy, it suits dry, indoor and standard conventional industrial environments.

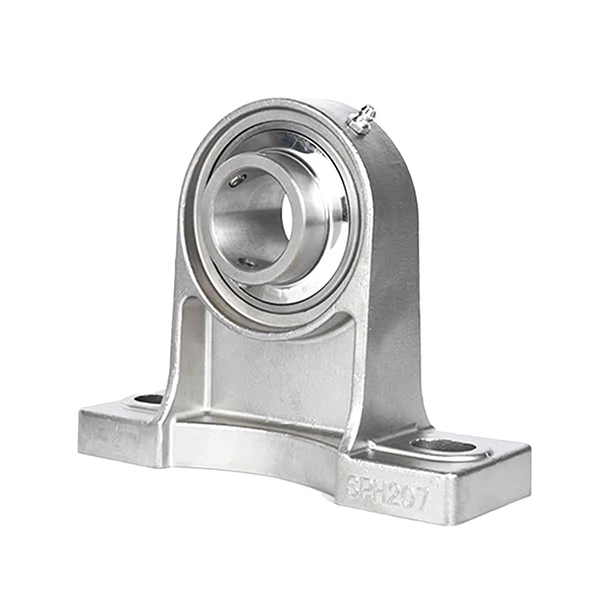

Stainless Steel Housing: Premium stainless steel housing delivers superior rust-proof, anti-corrosion and moisture-resistant performance. It works reliably in humid, wet and sanitary conditions, ideal for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Professional high-base structure meets special height installation requirements. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking prevents shaft slipping and loosening during continuous operation. Simple modular structure supports fast installation and replacement. Effective sealing resists dust and moisture ingress to extend bearing service life.
Application Scenarios
UCPH204 high pillow block bearings are widely used in customized conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimized for sanitary, humid and corrosive industrial applications.
