UCPH205 Pillow Block Bearings

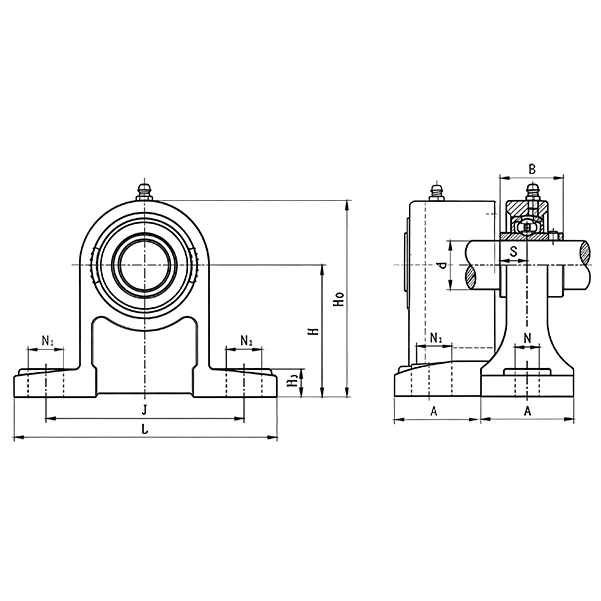

| UCPH205 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH205 | H2 | 16 |
| d | 25 | A | 50 |
| B | 34.1 | N | 13 |
| S | 14.3 | N1 | 19 |
| L | 140 | Install the bolt | M10 |
| J | 105 | Dynamic Load Co(N) | 14000 |
| H | 80 | Static Load Cor(N) | 7800 |
| H0 | 114 | Weight(Kg) | 1.2 |
UCPH205 Bearing | 25mm Bore High Pillow Block Mounted Bearing
The UCPH205 high pillow block bearing is a height-raised mounted bearing unit with a 25mm bore. Built with a self-aligning UC insert and dual set screw locking structure, this high-base bearing ensures stable low-noise rotation and low-maintenance performance, ideal for light and medium-duty industrial machinery requiring elevated mounting height.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It provides high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

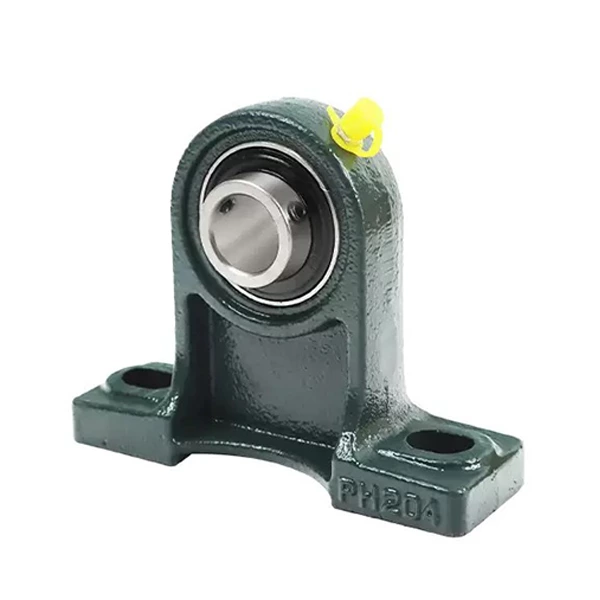

Cast Iron Housing: HT200 grey cast iron high-base housing features high rigidity and strong shock resistance. Cost-effective and durable, it is suitable for dry, indoor and conventional standard industrial environments.

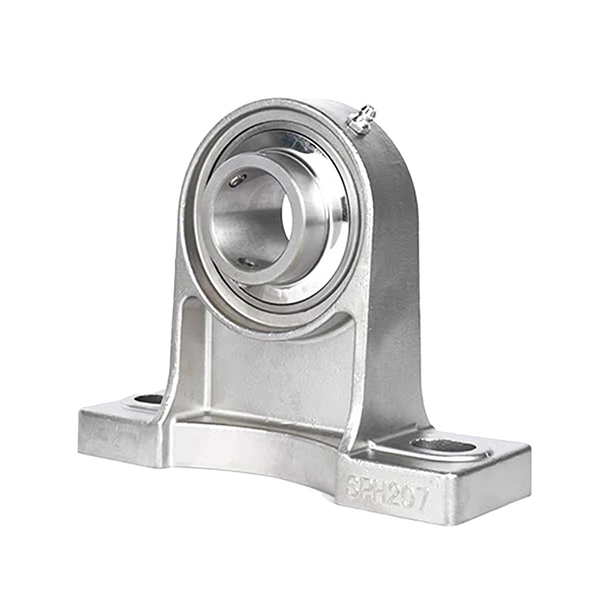

Stainless Steel Housing: Premium stainless steel housing delivers outstanding rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary working conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Special high-base structure meets customized height installation demands. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during continuous operation. Simple modular design enables fast installation and replacement. High-efficiency sealing resists dust and moisture ingress to extend bearing service life.
Application Scenarios
UCPH205 high pillow block bearings are widely applied in customized conveyor systems, textile machinery, packaging equipment and automated auxiliary machinery. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimized for sanitary, humid and corrosive industrial applications.
