UCPH206 Pillow Block Bearings

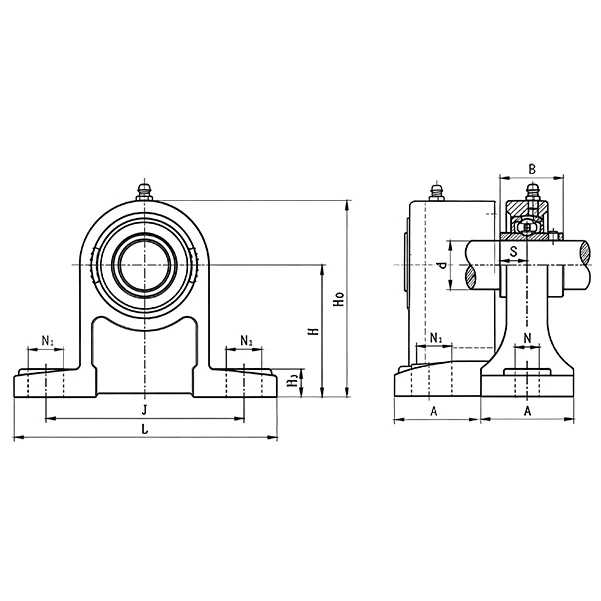

| UCPH206 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH206 | H2 | 18 |
| d | 30 | A | 50 |
| B | 38.1 | N | 17 |
| S | 15.9 | N1 | 21 |
| L | 165 | Install the bolt | M14 |
| J | 121 | Dynamic Load Co(N) | 19500 |
| H | 90 | Static Load Cor(N) | 11500 |
| H0 | 130 | Weight(Kg) | 1.8 |
UCPH206 Bearing | 30mm Bore High Pillow Block Mounted Bearing
The UCPH206 high pillow block bearing is a high-base mounted bearing unit with a 30mm bore. Adopting a self-aligning UC insert and dual set screw locking structure, this UCPH206 bearing offers stable low-noise operation and low-maintenance performance, suitable for medium-duty industrial machinery requiring elevated installation height.
Product Material And amp; Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with professional heat treatment. It features high hardness, superior wear resistance and stable mechanical performance for long-term continuous operation.

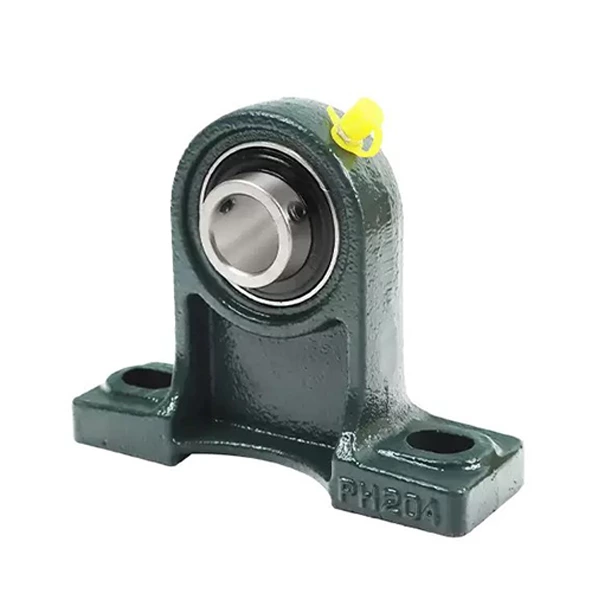

Cast Iron Housing: Standard HT200 grey cast iron high-base housing provides high rigidity and excellent shock resistance. Cost-effective and sturdy, it works perfectly in dry, indoor and conventional industrial environments.

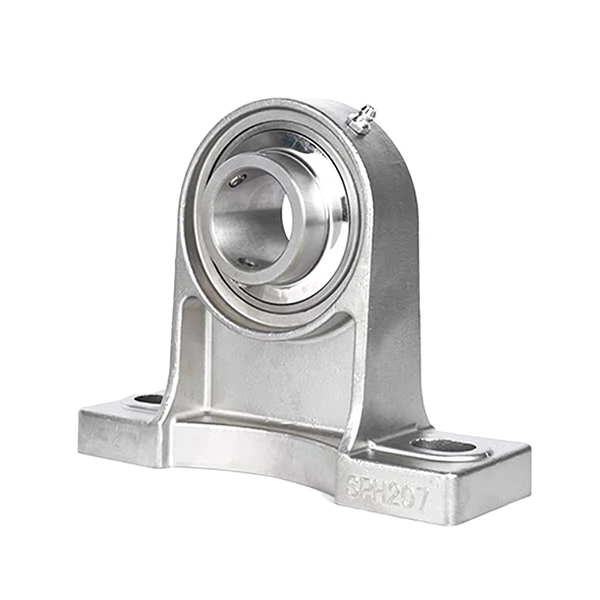

Stainless Steel Housing: Premium stainless steel housing boasts excellent rust-proof, anti-corrosion and waterproof performance. It adapts to humid, wet and sanitary working conditions, ideal for food processing equipment, outdoor machinery and mildly corrosive industrial scenarios.
Core Features
Exclusive high-base structure satisfies special height installation requirements. Built-in self-aligning function compensates for minor shaft misalignment and mounting errors. Dual set screw locking prevents shaft slipping and loosening during long-term operation. Compact modular structure supports quick installation and replacement. Reliable sealing system resists dust and moisture to extend bearing service life.
Application Scenarios
UCPH206 high pillow block bearings are widely used in medium-duty conveyor systems, textile machinery, packaging equipment and industrial automation devices. Cast iron housing is designed for standard dry indoor working conditions, while stainless steel housing is the best choice for sanitary, humid and corrosive industrial applications.
